Rittal 5302025 Combination Rail - VX IT Frame Zinc-plated
Part Number: 5302025
Quick Summary
VX IT combination rail for cable routing and strain relief on VX frames in 1,200 x 1,200 mm enclosures. This approach solves the common pain point of tangled cabling and excessive strain that slows commissioning. Industry buyers expect CE conformity, IP-rated protection, and SIL considerations in enclosure components, and this rail is designed to support safe, durable installations with a zinc-plated sheet steel finish. It offers mounting flexibility inside or outside the frame and supports cable clamps, ties, or Velcro to relieve load on routed cables, enabling quicker assembly. For keeping maintenance simple and wiring scalable, the VX 5302.025 is compatible with VX families and standard VX IT frames, reducing rework and improving reliability.
Product Information
Extended Description
5302025 Rittal: Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 1,200 mm, for enclosure depth 1,200 mm
Article number
VX 5302.025
Product description

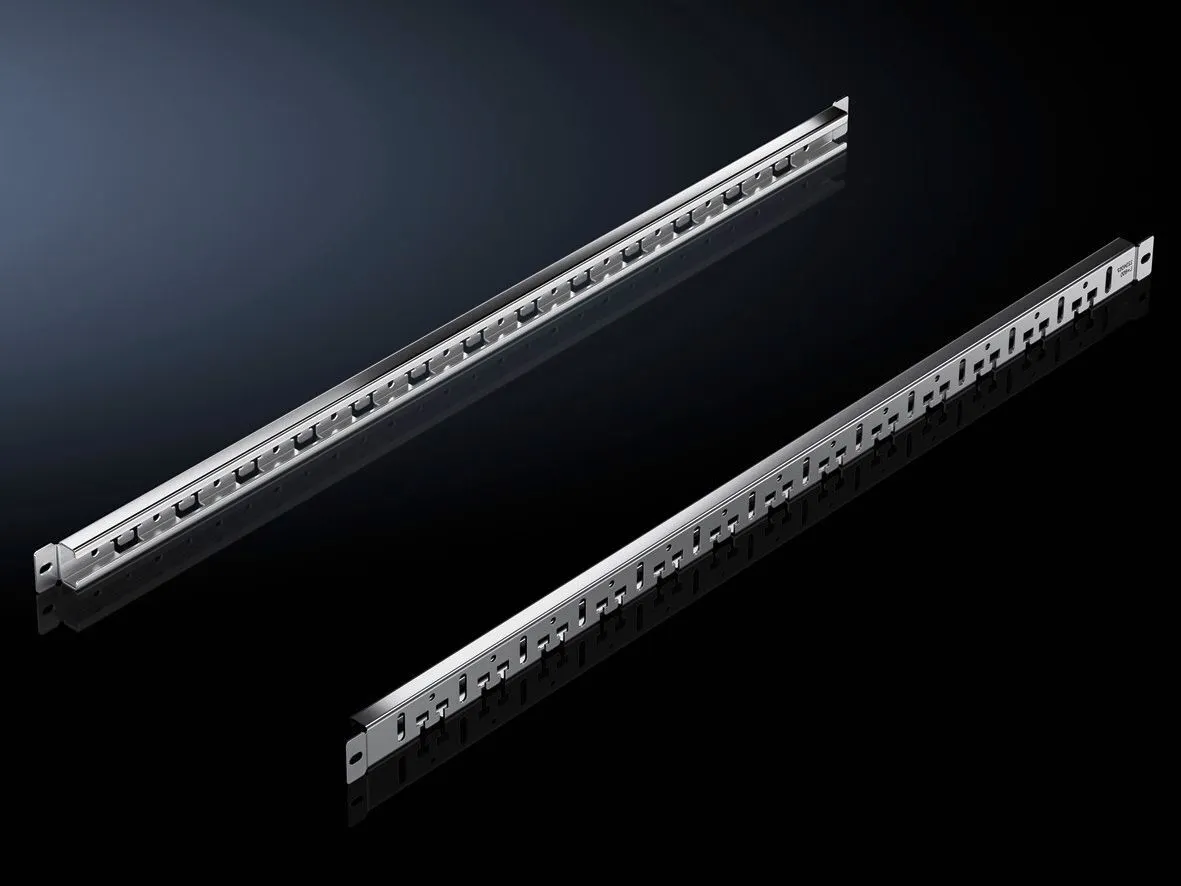

Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain.
Benefits
May be installed on either the outside or inside of the enclosure frame
Applications
For cable routing and strain relief of routed cables on the VX frame structure
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Direct screw-fastening between the vertical uprights of the enclosure frame
To fit
Enclosure type: VX | VX IT | Width: = 1,200 mm | Depth: = 1,200 mm
Packs of
4 pc(s).
Weight/pack
3.02 kg
PCF per pack (cradle-to-gate)
11.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952577
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 1,200 mm, for enclosure depth 1,200 mm
Feature: Combination rail with integrated C rail for clamping and a cable guide rail with T-heads. Business Impact: Streamlines routing and ensures reliable strain relief, reducing the risk of cable fatigue and rework. Application: Ideal for VX IT frame systems in 1,200 x 1,200 mm enclosures in industrial plants. Feature: Mounting flexibility to install outside or inside the enclosure frame. Business Impact: Reduces installation time and accommodates varied cabinet layouts, improving project scheduling. Application: Useful for retrofit work and new builds where space constraints exist. Feature: Material and finish are sheet steel with zinc plating. Business Impact: Provides durable, corrosion-resistant performance in harsh environments, lowering maintenance costs. Application: Suitable for harsh factory floors and outdoor-adjacent installations. Feature: Installation options include direct screw-fastening between vertical uprights. Business Impact: Speeds up field assembly and ensures secure, vibration-resistant mounting. Application: Fits standard VX frame uprights without special tooling. Feature: Pack details and sustainability metrics (4 per pack, 3.02 kg per pack, PCF 11.5 kg CO2 eq per pack). Business Impact: Predictable bulk procurement and a quantified environmental footprint, supporting green procurement programs. Application: Useful for project planning and Lifecycle Assessments across VX IT deployments.
Get a Quick Quote for a Rittal 5302025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302025?
Enquire Now
FAQs
Yes. The VX 5302.025 is designed for VX and VX IT enclosure families with a 1,200 x 1,200 mm footprint. It uses direct screw-fastening between the vertical uprights, enabling quick, tool-efficient installation and reliable alignment within the frame. It supports multiple securing options (cable clamps, ties, Velcro) for flexible installations.
Key specs include sheet steel material with a zinc-plated finish, packs of four per order, weight per pack 3.02 kg, and PCF of 11.5 kg CO2 eq (Cat B). Customs tariff number is 73269098, with EAN 4028177952577, ETIM 9 EC000322, and ECLASS 8.0 27400604. Assembly parts are supplied for complete mounting.
Yes. It is specifically designed for VX and VX IT frames with 1,200 mm width and 1,200 mm depth, providing a dedicated path for cables, built-in cable guides, and optional clamps or ties for strain relief. Its mounting options and internal/external placement capability support clean, scalable cabling within large VX enclosures.
The data for this part lists ETIM EC000322 and ECLASS 27400604 codes, which support classification and procurement systems. market expectations commonly include CE conformity and IP protection, depending on the installation. Verify compliance with your regional regulations and request manufacturer documentation or third-party test reports to confirm electrical safety and enclosure integrity for your specific project.
The rail reduces cabling complexity, improves assembly speed, and lowers the risk of cable rework, contributing to shorter commissioning times and fewer field faults. Durable zinc plating and robust sheet steel enhance long-term reliability in industrial environments, while flexible mounting and securing options minimize maintenance interventions and support scalable wiring strategies across VX IT deployments.
