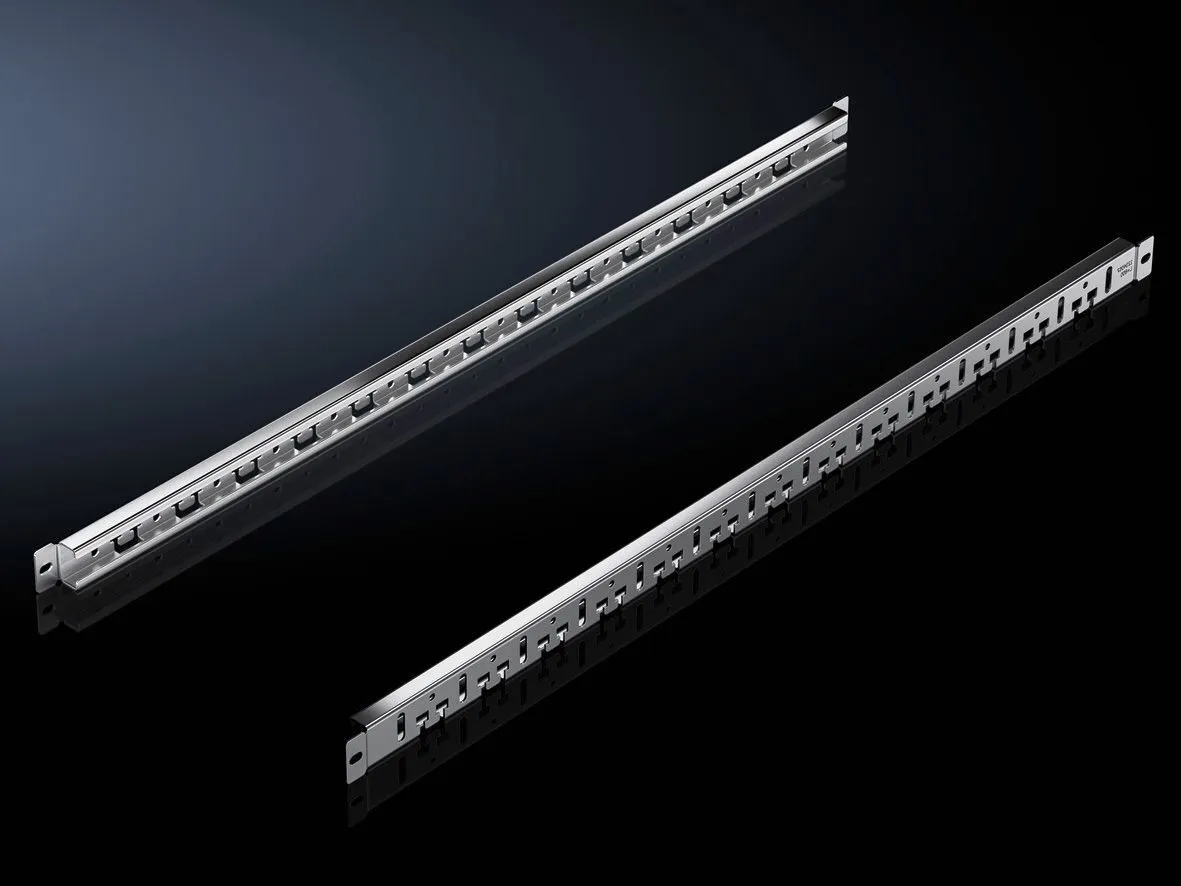

Rittal IT 5302.026 Combination Rail - 19in Zinc‑Plated
Part Number: 5302026
Quick Summary
Rittal IT 5302.026 Combination Rail enables organized cable routing and strain relief on 19 inch enclosures. Installers often confront tangled harnesses and misrouted cables that slow panel builds and raise risk of damage. Designed as a 1U, zinc‑plated sheet steel accessory for the 482.6 mm (19”) mounting level, it integrates cleanly with TS IT, VX IT, and TX CableNet enclosures, offering robust performance under routine servicing and harsh environments. While CE conformity and industry-standard practices are common for enclosure components, this rail’s durable construction supports predictable electrical and mechanical integrity. In practice, it translates to faster installs, easier maintenance, and scalable cable management across multiple cabinets, delivering measurable value in manufacturing lines and data centers alike.
Product Information
Extended Description
5302026 Rittal: Combination rail, 1 U, for 482.6 mm (19"), for cable routing and strain relief at the 19” level, for installation within the 19” mounting level or at the 19” system punchings
Article number
IT 5302.026
Applications
For cable routing and strain relief on the 482.6 mm (19") level
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts for the combination rail, without assembly parts for fixing the cables
Installation options
Within the 482.6 mm (19") mounting level, on the 482.6 mm (19") system punchings
Dimensions
Height: 1 U
To fit
Enclosure type: TS IT | VX IT | TX CableNet
Packs of
4 pc(s).
Weight/pack
1.352 kg
PCF per pack (cradle-to-gate)
5.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952584
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Combination rail, 1 U, for 482.6 mm (19"), for cable routing and strain relief at the 19” level, for installation within the 19” mounting level or at the 19” system punchings
Feature → Business Impact → Application: 1U height rail for the 482.6 mm (19”) level standardizes mounting footprint, reducing variation across panels and speeding integration of new gear in 19" cabinets. This directly supports higher throughput in assembly lines and serviceability in maintenance routines, especially when expanding with TS IT, VX IT or TX CableNet enclosures. Feature → Material: sheet steel with zinc‑plated surface provides corrosion resistance and durability in hot, oily, or dusty environments, improving long-term reliability and reducing replacement cycles in industrial environments. Feature → Pack size and weight: four pieces per pack; weight per pack 1.352 kg; PCF 5.2 kg CO2 eq (Cat B) demonstrates cost-conscious logistics and environmental accountability for cabinet installations. Feature → Compatibility: fits 1U rails within 19" mounting levels or system punchings across multiple Rittal enclosure families, streamlining stock management and installation planning. Feature → Supply includes: assembly parts for the rail, without fixing cables, allows installers to select the exact cable‑fixing components needed, minimizing waste and upfront spend. Feature → Installation options: supports mounting within the 19" level or system punchings, enabling both retrofits and fresh builds without specialized adapters. This flexibility reduces field engineering time and supports scalable cabling strategies across large enclosures and data centers.
Get a Quick Quote for a Rittal 5302026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302026?
Enquire Now
FAQs
Install the rail within the 482.6 mm (19") mounting level or on the 19" system punchings using the assembly parts supplied with the rail. The kit is designed for rapid integration with TS IT, VX IT, and TX CableNet enclosures, reducing installation time and ensuring a consistent cable routing path.
Check that you need a 1 U rail for 482.6 mm (19inch) levels, compatible with TS IT, VX IT or TX CableNet enclosures, and that you are selecting the zinc‑plated sheet steel variant for durability. Each pack contains four rails and weighs 1.352 kg, with standard ETIM EC002620 and ECLASS 27189261 classifications.
Yes. The IT 5302.026 is designed to integrate with Rittal’s system accessories for 19" cabinets, providing a reliable backbone for cable routing and strain relief. It supports installation within the standard 19" mounting level or system punchings, enabling scalable cable management across multiple cabinets.
The rail is built to align with CE conventions common for enclosure components and industry best practices. While IP protection depends on the complete enclosure assembly, the rail’s robust zinc‑plated sheet steel construction contributes to overall enclosure integrity and reliability in typical industrial environments.
The rail standardizes mounting, reduces installation time, and improves serviceability for future expansions. With four rails per pack and a predictable weight, logistics planning improves, and the durable finish minimizes maintenance intervals in tough environments, delivering measurable ROI through faster deployments and less rework.
