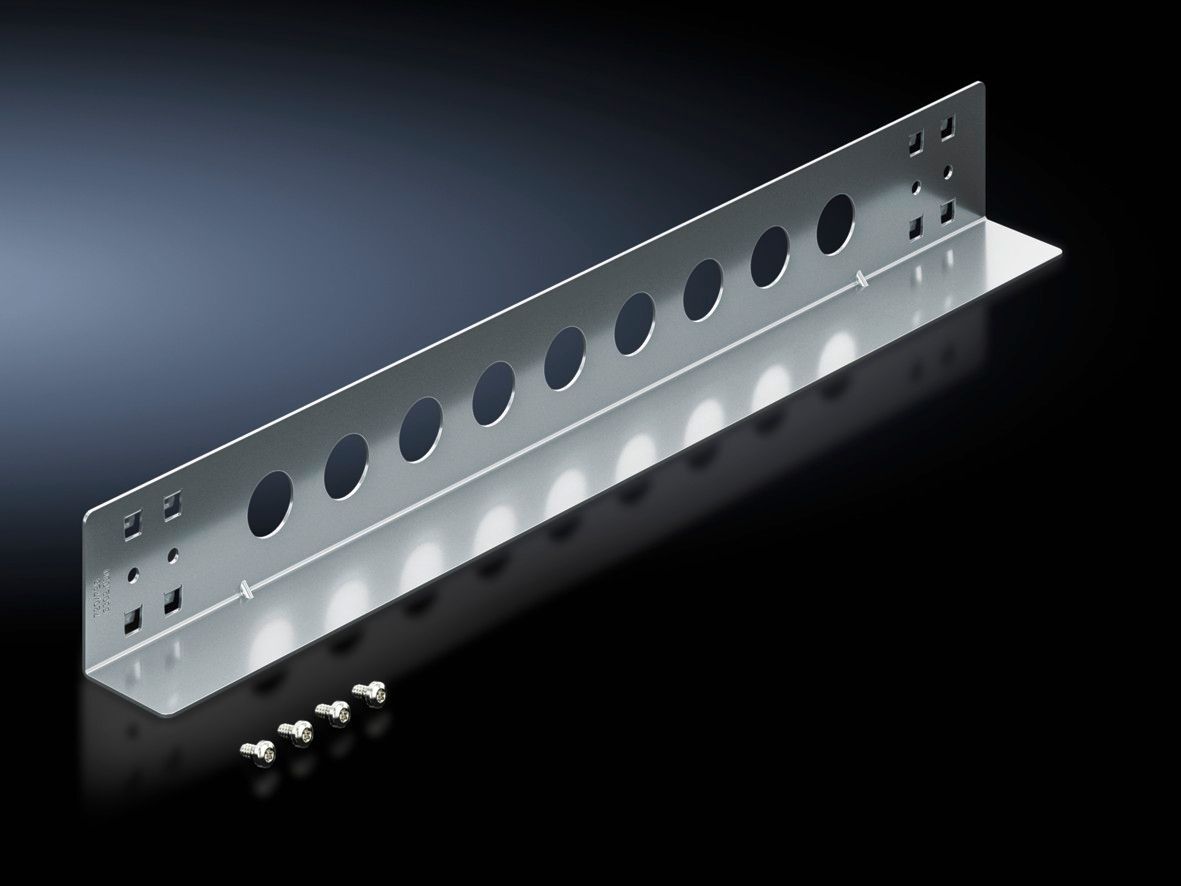

Rittal VX 5302.033 Slide Rail - 2000 N Static Load
Part Number: 5302033
Quick Summary
Rittal VX 5302.033 slide rail enables heavy-duty 2U mounting between front and rear VX IT angles. Installers often face misalignment and inadequate load distribution in tight enclosures, making equipment stability a challenge. Certification details are not listed in the provided data, so verify CE, IP, or SIL compliance per regional requirements during procurement. The zinc-plated sheet steel construction and 35 mm per-side contact surface deliver durability and reliable support, while compatibility with 482.6 mm (19") mounting brackets and front-mount options simplifies retrofit projects. This accessory translates into faster installation, improved equipment safety, and reduced lifecycle risk for data centers, automation cabinets, and control rooms.
Product Information
Extended Description
5302033 Rittal: Slide rail, 2 U, permanent installation, heavy duty, for VX IT, for mounting at the front mounting level, to support heavy installed equipment, effective contact surface each side 35 mm
Article number
VX 5302.033
Product description
Side system punchings for mounting accessories and cooling components that expel to the side.
Benefits
Simply locate into the system punchings of the 482.6 mm (19") mounting brackets after adjusting the required 482.6 mm (19") distance between levels
Applications
For mounting on the front mounting level
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Load capacity
2000 N, static
Note
Effective contact surface 35 mm per side
Installation options
for 482.6 mm (19") mounting angles, standard: 620/645 mm distance between levels
Packs of
2 pc(s).
Weight/pack
2.18 kg
PCF per pack (cradle-to-gate)
8.3Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952621
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Slide rail, 2 U, permanent installation, heavy duty, for VX IT, for mounting at the front mounting level, to support heavy installed equipment, effective contact surface each side 35 mm
Feature: Heavy-duty 2U slide rail rated for a static load of 2000 N. Benefit: Supports heavy installed equipment with stable load distribution, reducing the risk of sag or misalignment during operation. Application: Ideal for VX IT enclosures requiring robust front-mount support and reliable performance in vibration-prone environments. Feature: Zinc-plated sheet steel construction. Benefit: Corrosion resistance and long service life in industrial environments, lowering maintenance costs. Application: Outdoor or humid data centers and factory floors where enclosure hardware endures challenging conditions. Feature: Front mounting level compatibility with 482.6 mm (19") mounting angles. Benefit: Simplified retrofits and standardized installations across existing VX IT systems, reducing setup time. Application: Systems integrators deploying 19" equipment with variable level spacing. Feature: Effective contact surface 35 mm per side. Benefit: Enhanced surface contact improves stability and load sharing across both sides, minimizing movement. Application: Heavy load configurations where precise alignment is critical for cooling paths and cable management. Feature: Installation options offering standard 620/645 mm level spacing. Benefit: Flexible placement supports diverse rack layouts and future equipment upgrades. Application: New builds and refurbishments where space planning is essential. Feature: Pack of two with assembly parts. Benefit: Economies of scale and ready-to-install components reduce project lead times. Application: Multi-rack deployments and service refresh cycles where consistent hardware quality matters. These points collectively emphasize compatibility with VX IT systems, support for heavy equipment, and measurable efficiency gains from faster, more reliable installations in industrial environments.
Get a Quick Quote for a Rittal 5302033
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302033?
Enquire Now
FAQs
Yes. The VX 5302.033 is designed for 482.6 mm (19") mounting angles within VX IT systems and supports standard front mounting level configurations. It ships with assembly parts and is intended for use where 620/645 mm level spacing is required, enabling straightforward integration into existing racks.
The rail provides a static load capacity of 2000 N. Each side offers an effective contact surface of 35 mm, which distributes weight and minimizes deformation or movement under heavy installations, improving overall stability in mounted equipment.
Absolutely. Designed for heavy-duty 2U mounting at the front level, the VX 5302.033 supports heavy installed equipment with robust sheet steel, zinc-plated construction, and compatible 19" mounting angles, making it suitable for data centers, automation cabinets, and control rooms.
Certification details are not listed in the provided data. When purchasing, confirm regional compliance requirements such as CE marking or IP protection with your supplier to ensure your installation meets local safety and regulatory standards.
The rail ships as a two-pack with assembly parts, allowing quicker, repeatable installations across multiple racks. Its durable zinc-plated steel and stable 2U support reduce rework, vibration-related wear, and maintenance intervals, delivering a lower total cost of ownership over the cabinet lifecycle.
