Rittal VX 5302.036 Brush Kit - UL 94-V0 Shielding
Part Number: 5302036
Quick Summary
The Rittal VX 5302.036 brush kit provides all-round shielding and targeted air routing for 19" mounting levels in VX IT cabinets. The main challenge it addresses is preventing leaks and uneven cooling around cable ducts, which can drive energy use and reduce equipment reliability. Key material and safety standards include UL 94-V0 rated plastics for the bristles and spray-finished steel air baffle plates, aligning with common industrial safety expectations in CE-regulated environments. This solution also supports scalable VX IT deployments by delivering efficient air routing and a clean, professional enclosure appearance with color matched to RAL 9005.
Product Information
Extended Description
5302036 Rittal: Brush kit for VX IT cable duct, for all-round shielding of the 19" mounting level and targeted routing of the cold air flow to the installed equipment. Bristle length 48 mm, enclosure width 800 mm
Article number
VX 5302.036
Product description
For all-round shielding of the 482.6 mm (19") mounting level and targeted routing of the cold air flow to the installed equipment.
Benefits
Simple assembly with tool-free quick-release fastening
Applications
The brush kit is designed for combining two vertical cable ducts on both sides of the 482.6 mm (19") mounting level. The brush kit may be combined with a cable duct and used as an alternative to the air baffle plate.
Function principle
The brush kit consists of vertical brush strips for the area between the cable duct and side panel as well as horizontal air baffle plates with brush strips for sealing in the roof and floor area on the 482.6 mm (19") mounting level
Material
Brush strip: Plastic, UL 94-V0 | Bristles: Plastic, ULÂ 94-HB | Air baffle plates: Sheet steel, spray finished
Colour
RAL 9005
Supply includes

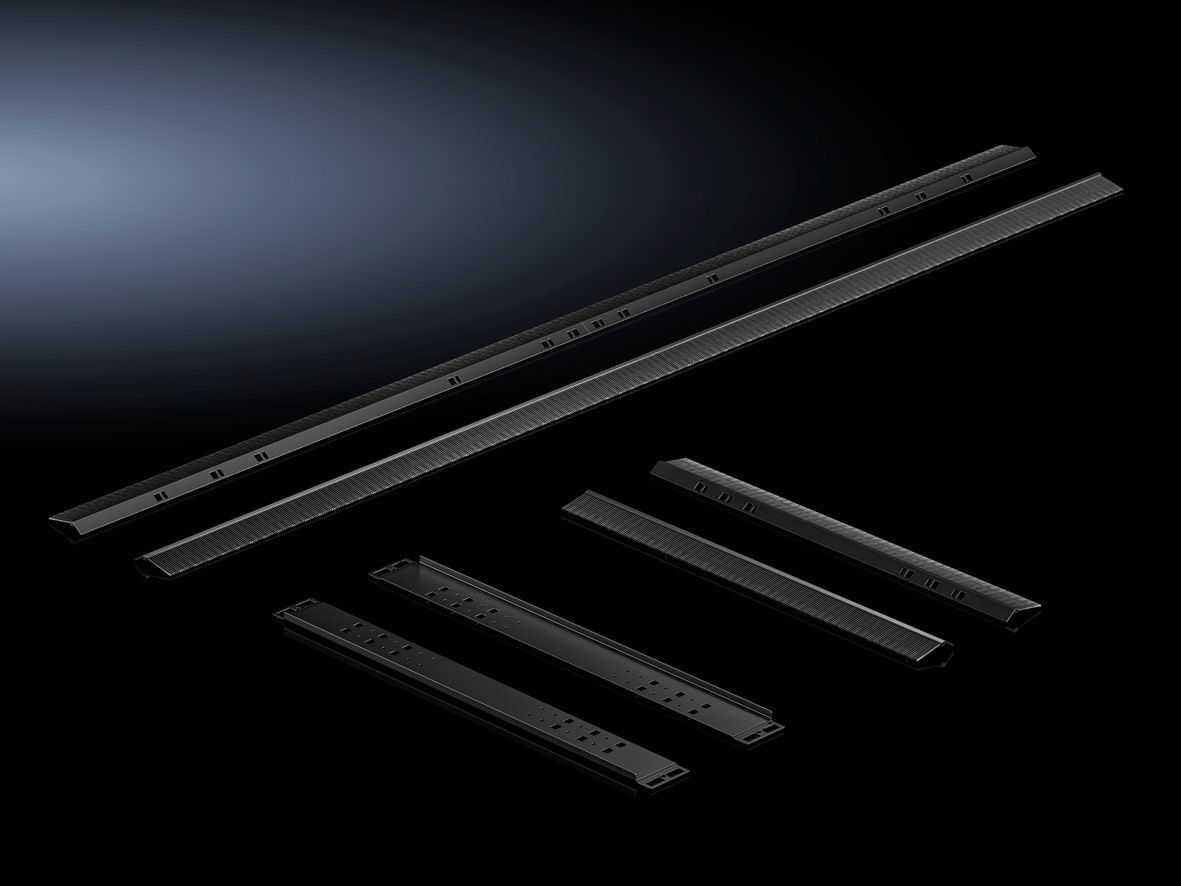

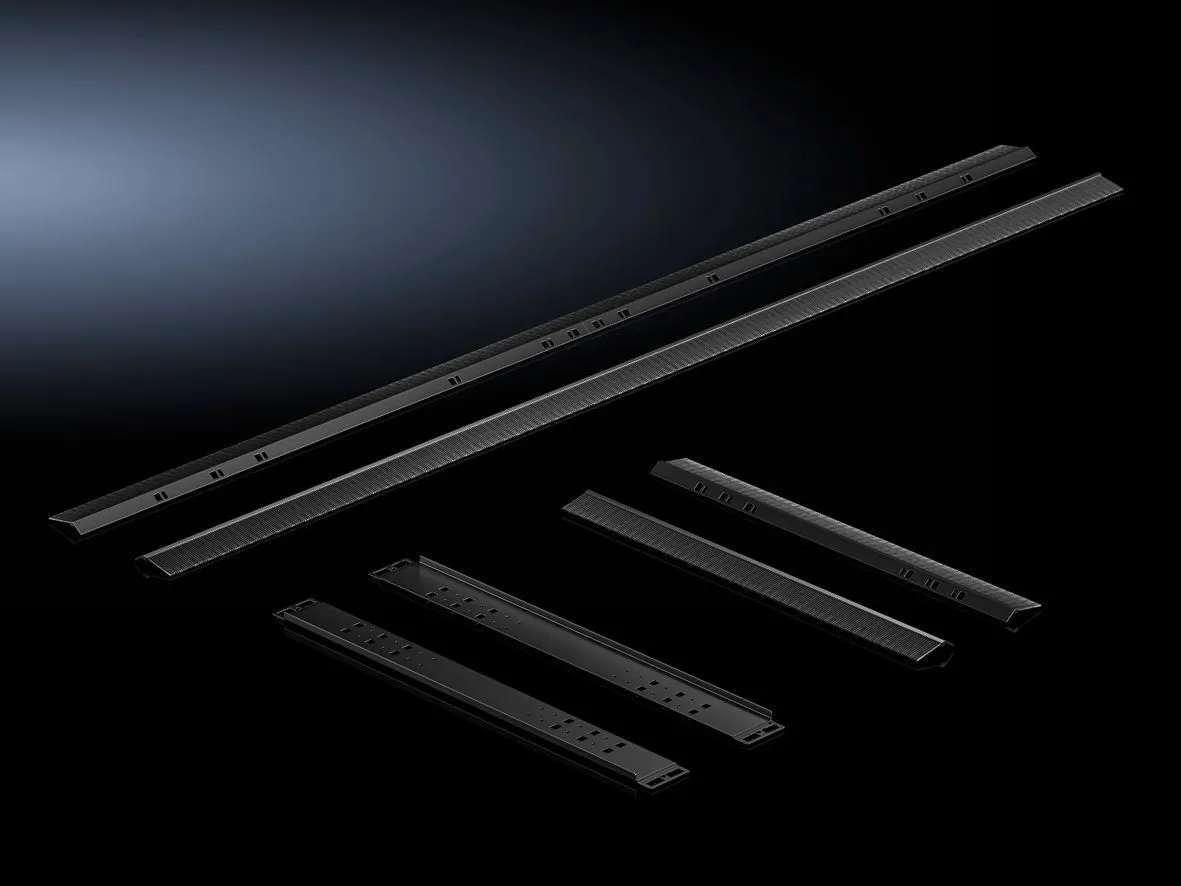

2 vertical brush strips, both sides | 2 horizontal air baffle plates, top and bottom | 2 horizontal brush strips, top and bottom between the first 482.6 mm (19") mounting level and the roof or gland plate | 8 brush strips between the cable duct and roof/base plate | Assembly parts
Bristle length
48 mm
Installation options
482.6 mm (19") mounting angles, standard in the VX IT
Assembly instruction
When using the cable duct combined with the brush kit as an air routing component, the cable entry openings in the cable duct must be closed or covered with a cable management panel with brush strip
To fit
Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
4.8 kg
Customs tariff number
73269098
EAN
4028177952652
ETIM 9
EC012298
ECLASS 8.0
27142421
Product description
Brush kit for VX IT cable duct, for all-round shielding of the 19" mounting level and targeted routing of the cold air flow to the installed equipment. Bristle length 48 mm, enclosure width 800 mm
Feature: All-round shielding with vertical brush strips and horizontal air baffle plates. Business impact: Improves containment of airflow and cable routing, reducing leakage and ensuring predictable cooling. Application: Fits across the 482.6 mm (19") mounting level on VX IT cabinets for consistent performance.Feature: Tool-free quick-release fastening. Business impact: Speeds installation and reduces downtime, lowering labor costs while enabling easier maintenance or upgrades. Application: Ideal for high-change environments where rapid field assembly is valuable.Feature: Comprehensive supply package. Business impact: Includes 2 vertical brush strips, 2 horizontal air baffle plates, 2 horizontal brush strips, and multiple brush strips plus assembly parts, delivering a complete, install-ready solution. Application: Supports reliable shielding on both sides of the mounting level and at the roof/base interface.Feature: Durable materials and finish. Business impact: UL 94-V0 plastics and steel air baffle plates provide flame-resistance and environmental durability, increasing enclosure reliability in harsh industrial settings. Application: Suitable for long-term deployment in manufacturing and data-center-adjacent environments.Feature: Compatibility and installation options. Business impact: Mounting angles for VX IT are standard, enabling straightforward integration with existing VX IT installations. Application: Ensures seamless fitment with 800 mm enclosure width and the 482.6 mm mounting level layout.Feature: Visual and thermal integration. Business impact: Color specified as RAL 9005 for consistent cabinet aesthetics and predictable heat management behavior. Application: Matches standard industrial enclosures and aids in project standardization.
Get a Quick Quote for a Rittal 5302036
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302036?
Enquire Now
FAQs
Begin by aligning the two vertical brush strips on each side of the 482.6 mm (19") mounting level. Attach the horizontal air baffle plates at the top and bottom, followed by the horizontal brush strips between the first mounting level and the roof or base plate. The kit uses tool-free quick-release fasteners, simplifying installation and future maintenance. Ensure the cable entry openings in the duct are closed with the brush strips as required for airflow control.
The kit delivers all-round shielding of the mounting level and targeted air routing to installed equipment, minimizing air leakage and improving cooling efficiency. With bristle length of 48 mm and enclosure width of 800 mm, it supports consistent cold-air delivery to critical components, which can reduce fan loads and energy consumption in VX IT cabinets.
Yes. The kit is designed for combining two vertical cable ducts on both sides of the 482.6 mm (19") mounting level. It includes two vertical brush strips (one for each side), ensuring symmetric shielding and balanced airflow. This configuration helps maintain uniform cooling across stacked equipment and simplifies cable management.
The product uses UL 94-V0 rated plastics for the brush strips, indicating flame retardancy suitable for industrial environments. The assembly materials also include spray-finished sheet steel for the air baffle plates, providing durability and environmental protection. Color and classification details align with standard cabinet design practices used in CE-oriented industrial settings.
Installation is quick thanks to tool-free fasteners, reducing commissioning time and downtime. The shielded, directed airflow improves cooling efficiency, potentially lowering energy use and extending equipment life. The complete kit reduces the need for separate air barriers and simplifies ongoing maintenance, delivering tangible labor savings and more predictable thermal performance over the system lifecycle.
