Rittal VX 5302.037 Kit - Frame Conversion, IP Note
Part Number: 5302037
Quick Summary
Rittal VX 5302.037 Kit converts a VX IT frame into a dismantlable rack for modular enclosures. Engineers often face downtime during retrofits, and this kit enables a faster, non-invasive transformation while preserving external dimensions. It aligns with key classifications such as ETIM 7.0 EC002620 and ECLASS 8.0 27189261, with an IP-related constraint that the maximum protection category is limited by frame separation. By simplifying reconfiguration and providing standardized assembly parts, the kit supports repeatable installations and long-term maintainability, driving lower lifecycle costs. In practice, this means smoother upgrades, easier future scalability, and clearer procurement paths for VX IT frame projects and related automation deployments.
Product Information
Extended Description
5302037 Rittal: Kit for separate frame VX, each TS frame is easily converted to a rack suitable for dismantling. To do this, the frame sections in the roof and base frame must be separated, optionally in the width or depth.
Article number
VX 5302.037
Product description
Every VX IT frame is easily converted to a rack suitable for dismantling. To this end, the frame sections in the roof and base frame must be separated, optionally in the width or depth. The four connection components are inserted into the frame section and screw-fastened. The external dimensions of the frame remain unchanged.
Supply includes

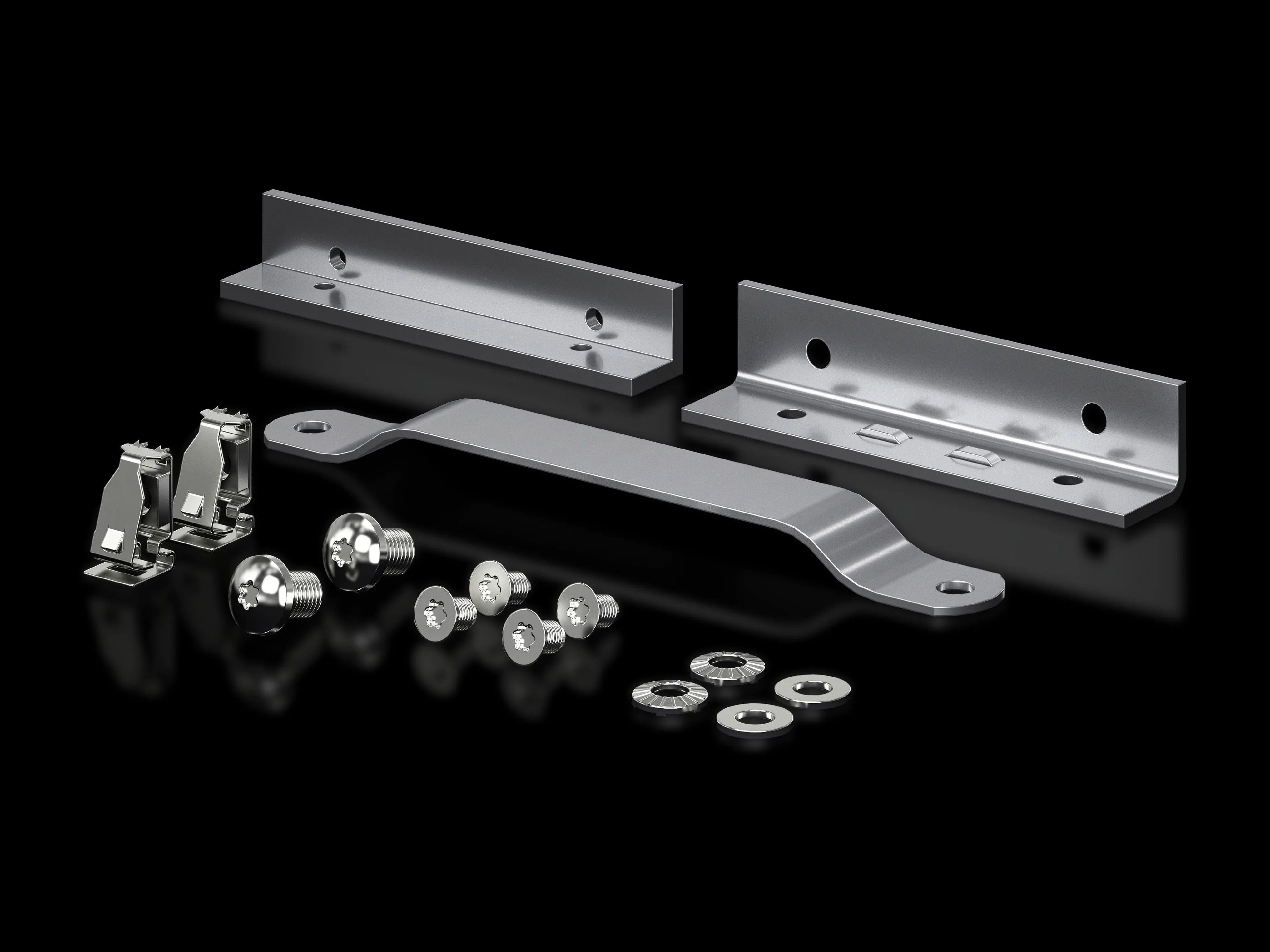

4 connection components, internal | 4 connection components, external | Earth strap | Assembly parts
Note
The maximum achievable IP protection category is restricted by separation of the frame.
Packs of
1 pc(s).
Weight/pack
1.227 kg
Customs tariff number
83024900
EAN
4028177952669
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
Kit for separate frame VX, each TS frame is easily converted to a rack suitable for dismantling. To do this, the frame sections in the roof and base frame must be separated, optionally in the width or depth.
Feature → Business Impact → Application: The kit includes four internal connection components and four external connection components, enabling a modular transition without altering the frame’s external footprint, which reduces the risk of misfit issues during retrofits and accelerates commissioning of new configurations for VX IT frame installations. This directly translates to measurable downtime reduction and a faster time-to-value for automation projects. Application-wise, technicians can convert VX IT frames on-site to a dismantlable rack suitable for future component changes in control cabinets or modular enclosures, maintaining existing space planning while increasing flexibility. Feature → Business Impact → Application: An earth strap and complete assembly parts simplify grounding and assembly, minimizing field errors and warranty concerns while ensuring robust electrical integrity; your installation remains compliant with industry grounding practices and reduces post-install adjustments. This is particularly beneficial in high-availability environments where uptime is critical. Feature → Business Impact → Application: The kit preserves external frame dimensions even after conversion, enabling plug-and-play compatibility with existing mounting rails and backplanes; installers avoid costly rework or cabinet redesigns. It’s ideal for retrofit projects in automation cells where enclosure footprint must stay constant. Feature → Business Impact → Application: Pack size of 1 and a documented weight of 1.227 kg per pack supports lean stocking, predictable logistics, and straightforward replenishment for maintenance teams, improving procurement efficiency and reducing carrying costs. Feature → Business Impact → Application: Compliance-friendly documentation (ETIM, ECLASS) and explicit notes on IP protection limitations help design engineers document risk and ensure traceability in regulatory audits, while enabling safer, standards-aligned installations.
Get a Quick Quote for a Rittal 5302037
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302037?
Enquire Now
FAQs
To install, detach the frame sections in the roof and base as needed, then insert the four internal and four external connection components and secure with screws. Attach the earth strap and include the assembly parts to complete the dismantlable conversion, ensuring the external dimensions remain unchanged for a seamless retrofit.
The kit includes four internal connection components, four external connection components, an earth strap, and necessary assembly parts. Each pack is 1.227 kg, with a single-pack quantity, and it carries the EAN 4028177952669 for traceability and procurement.
The kit notes that the maximum IP protection category is limited by frame separation. It also aligns with ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications, providing a framework for compatibility and downstream regulatory documentation.
This kit is ideal for converting VX IT frames within modular enclosures or control cabinets to a dismantlable rack configuration. It preserves external dimensions, supports future component changes, and reduces downtime during reconfiguration in industrial automation environments.
Each pack weighs 1.227 kg, and the pack quantity is 1 piece. The product carries the EAN 4028177952669, and the pack is designed for straightforward stocking and replenishment in maintenance and procurement workflows.
