Rittal 5302051 Cable Duct - UL 94-HB
Part Number: 5302051
Quick Summary
Rittal 5302051 cable duct provides concealed cable routing for VX IT enclosures and similar 800 mm wide systems. This solution helps keep cables tidy and accessible, reducing maintenance time and the risk of wiring errors during upgrades. The data highlights a UL 94-HB material rating for flame performance, while the product integrates with VX IT and TE 8000 families for scalable installations. By enabling tool-free assembly and compatible with air-venting accessories, it supports efficient, compliant electrical installation and long-term cost savings through simplified serviceability.
Product Information
Extended Description

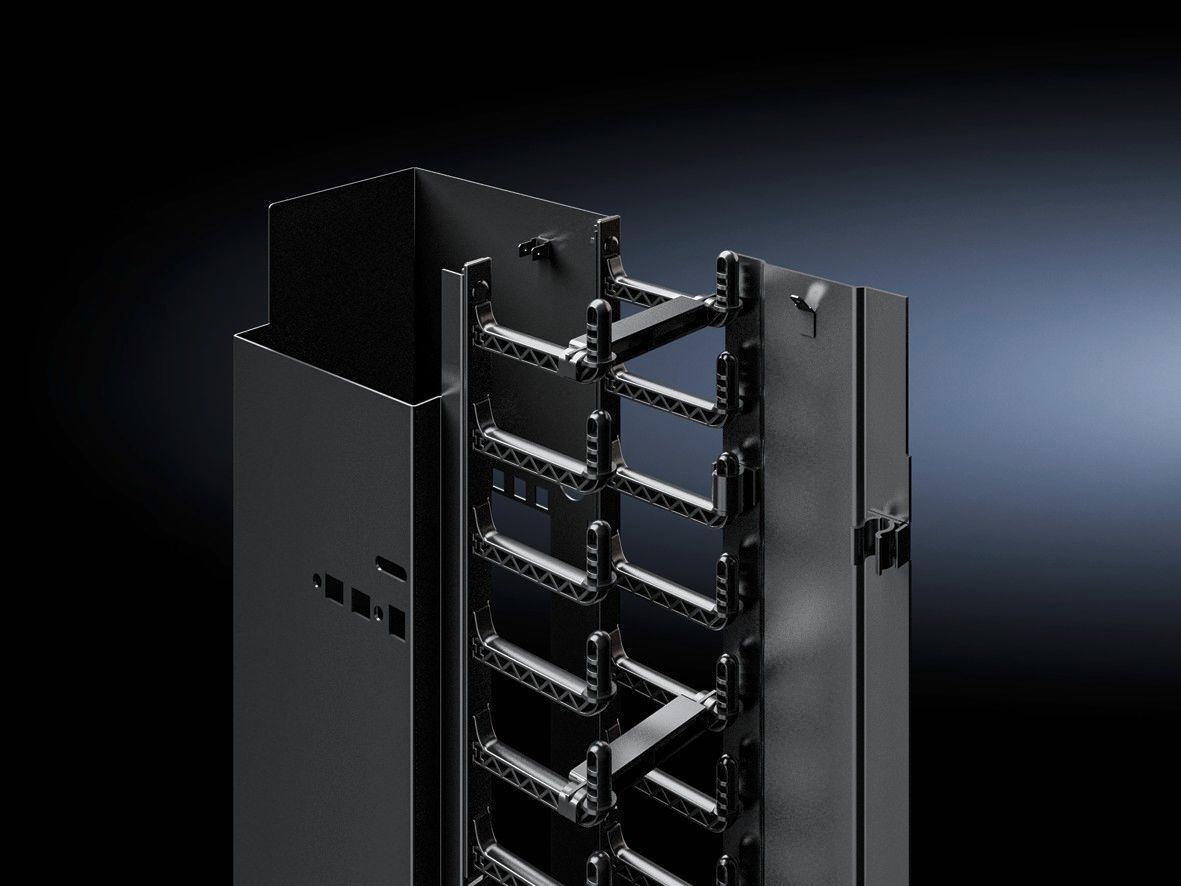

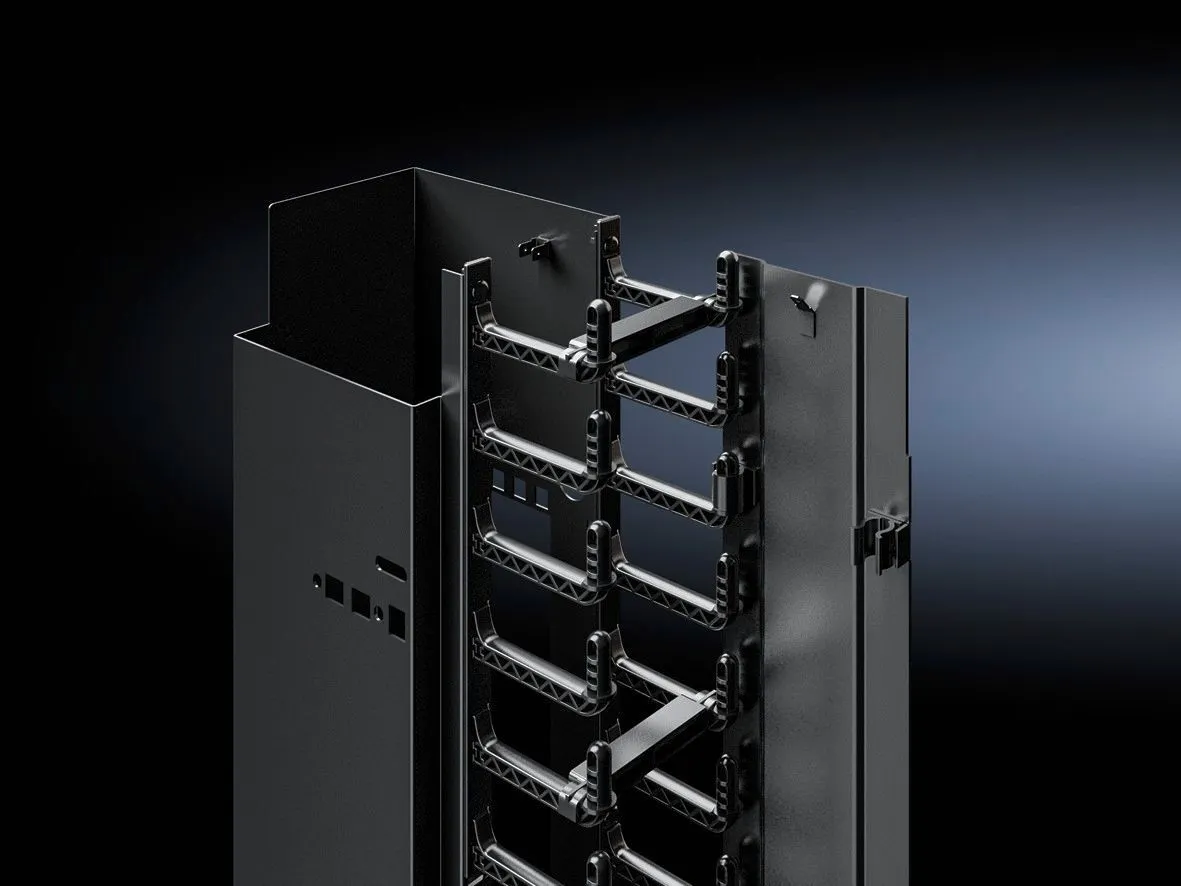

5302051 Rittal: Cable duct, 38 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 1,800 mm
Article number
DK 5302.051
Product description
Cable duct for concealed cable routing. Convenient access to the cabling at any time via the hinged duct cover, optionally removable. The duct has cable entry options to the enclosure interior and through the rear panel of the duct. The cable retaining bars enclosed with the duct are snap-mounted onto the cable fingers of the duct with variable depth to support cable routing. Alternatively, the cable duct may also be screw-fastened. For optimum air routing, it may be combined with the brush kit for VX IT.
Benefits
Simple assembly with tool-free quick-release fastening
Material
Sheet steel | Plastic to UL 94-HB
Colour
RAL 9005
Supply includes
Cable duct | 2 covers | 14 cable fingers , 6 U | 10 cable retaining bars | Assembly parts
Units
38 U
Note
With symmetrical interior installation in the VX IT enclosure type, may not be combined with dynamic 482.6 mm (19") mounting angles. For asymmetrical interior installation, assembly on one side is supported.
Dimensions
Width: 109.5 mm | Depth: 314.5 mm | Length: 1,699 mm
To fit
Enclosure type: VX IT | TE 8000 | Data Rack | TX CableNet | Width: = 800 mm | Height: = 1,800 mm | = 1,900 mm | = 2,000 mm
Packs of
1 pc(s).
Weight/pack
7.98 kg
PCF per pack (cradle-to-gate)
30.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177958579
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
Cable duct, 38 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 1,800 mm
Hinged removable cover with tool-free quick-release fastening enables fast access to cabling, reducing downtime during servicing and rework. This feature translates to measurable maintenance time savings and faster upgrades in busy control rooms and data centers. The 38 U capacity, with precise dimensions (Width 109.5 mm, Depth 314.5 mm, Length 1,699 mm), supports dense cable routing while preserving enclosure air flow for thermal performance. Cable fingers (14) and retaining bars (10) with depth variation provide organized, scalable cable management, improving signal integrity and reducing interference risks in complex installations. Construction uses sheet steel with UL 94-HB rated plastic, delivering durable mechanical strength and fire performance suitable for industrial environments. Compatibility with VX IT brush kits enhances air routing, while optional screw-fastening or snap-mount assembly offers installation flexibility across diverse cabinet configurations. Weight per pack is 7.98 kg, and the package includes two covers and essential assembly parts, enabling quick deployment in new builds or retrofits. The product’s modular design supports future reconfigurations in evolving control networks, helping to minimize total cost of ownership.
Get a Quick Quote for a Rittal 5302051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302051?
Enquire Now
FAQs
The 5302051 supports tool-free quick-release fastening for fast, tool-less assembly. It can be snap-mounted or screw-fastened, and packaging includes covers, cable fingers, retaining bars, and assembly parts to streamline installation in VX IT and TE 8000 cabinets.
Key specs include 38 U capacity, width 109.5 mm, depth 314.5 mm, length 1,699 mm, weight 7.98 kg per pack, 14 cable fingers, 10 cable retaining bars, and two covers. Material is sheet steel with plastic rated to UL 94-HB, color RAL 9005.
Yes. The duct is designed for VX IT enclosures and is suitable for 800 mm wide systems with a height of 1,800 mm, and it can be used in TE 8000 data rack configurations, offering concealed cabling and rear-entry options.
The data specifies a UL 94-HB flame rating for the plastic components, supporting fire performance requirements. No CE, SIL, or IP rating details are listed in the provided data; always verify local regulatory needs for your installation.
The hinged cover and tool-free fastening simplify servicing, reducing downtime during inspections and upgrades. Organized cabling with fingers and retaining bars improves troubleshooting, airflow, and future upgrades, contributing to lower maintenance costs and faster return on investment in busy industrial plants.
