Rittal DK 5302.052 Cable Duct - UL 94-HB, 42 U
Part Number: 5302052
Quick Summary
Cable duct DK 5302.052 from Rittal provides concealed routing for 42 U cabling in VX IT enclosures. This solution helps keep large, complex cabling paths neatly organized, reducing spatial clutter and maintenance time. Note that the data does not specify CE, SIL, or IP ratings; however, the design adopts UL 94-HB compliant plastic and a robust sheet‑steel body for flame retardancy and durability. The enclosure-integrated approach supports easy retrofits and scalable installations, making it suitable for expanding rack systems. By combining tool-free assembly with flexible cable-entry options and rear-panel access, this duct delivers tangible business value—simplified installation, improved airflow, and cleaner, more maintainable cabinets for critical automation environments.
Product Information
Extended Description
5302052 Rittal: Cable duct, 42 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 2000 mm
Article number
DK 5302.052
Product description

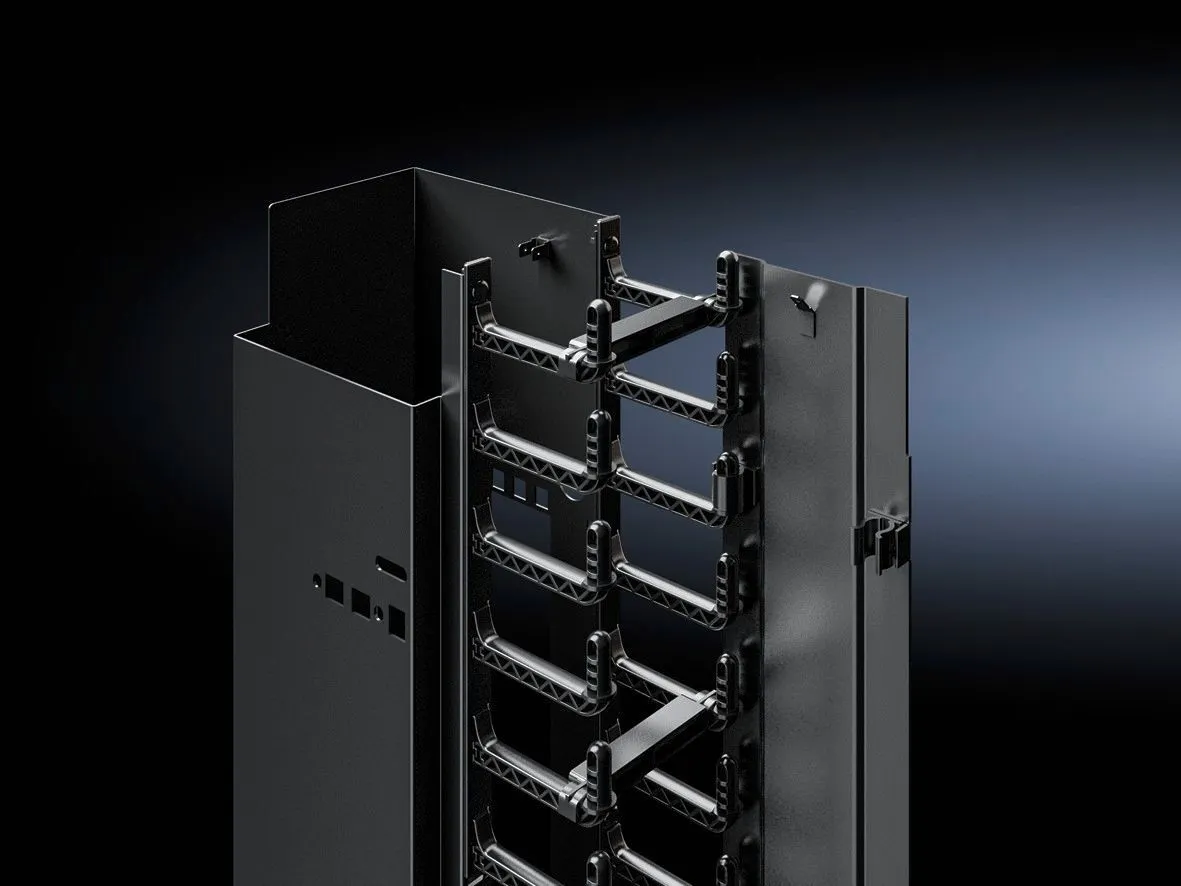

Cable duct for concealed cable routing. Convenient access to the cabling at any time via the hinged duct cover, optionally removable. The duct has cable entry options to the enclosure interior and through the rear panel of the duct. The cable retaining bars enclosed with the duct are snap-mounted onto the cable fingers of the duct with variable depth to support cable routing. Alternatively, the cable duct may also be screw-fastened. For optimum air routing, it may be combined with the brush kit for VX IT.
Benefits
Simple assembly with tool-free quick-release fastening
Material
Sheet steel | Plastic to UL 94-HB
Colour
RALÂ 9005
Supply includes
Cable duct | 2 covers | 14 cable fingers , 6 U | 10 cable retaining bars | Assembly parts
Units
42 U
To fit
Cannot be combined with 482.6 mm (19") mounting angles, dynamic, for VX IT
Note
With symmetrical interior installation in the VX IT enclosure type, may not be combined with dynamic 482.6 mm (19") mounting angles. For asymmetrical interior installation, assembly on one side is supported.
Dimensions
Width:Â 109.5 mm | Depth:Â 314.5 mm | Length:Â 1,872 mm
To fit
Enclosure type:Â VX IT | Data Rack | TX CableNet | Width:Â = 800 mm | Height:Â = 2,000 mm | = 2,122 mm
Packs of
1 pc(s).
Weight/pack
8.56 kg
PCF per pack (cradle-to-gate)
32.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177958586
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
Cable duct, 42 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 2000 mm
Feature: 42 U capacity with precise dimensions (Width 109.5 mm, Depth 314.5 mm, Length 1,872 mm) enables standardized, high-density cable routing. Business Impact: Supports consistent cable layout across VX IT enclosures, reducing integration time and post‑installation rework. Application: Ideal for 800 mm wide VX IT racks where large cabling needs orderly organization. Feature: Hinged, removable duct cover provides quick access to cabling. Business Impact: Speeds up maintenance and future upgrades while preserving enclosure integrity. Application: Used during service windows to reconfigure cabling without full dismantling. Feature: Multiple cable-entry options to the interior and through the rear panel. Business Impact: Flexible routing reduces strain on cables and simplifies upgrades or reconfigurations. Application: Supports mixed cable types and future-proof installations in dynamic data rack environments. Feature: Cable retaining bars and cable fingers with variable depth. Business Impact: Secure, scalable cabling with minimized risk of abrasion or snagging. Application: Ensures neat, protected cabling paths in VX IT cabinets. Feature: Compatibility with brush kit for VX IT and optional screw-fastened mounting. Business Impact: Optimizes airflow while maintaining robust attachment; offers installation versatility. Application: Pending or permanent installations with airflow considerations in mind. Feature: Tool-free quick-release fastening. Business Impact: Reduces on-site installation time and eliminates excessive tooling. Application: Quick upgrades and field servicing by technicians. Feature: Material mix of sheet steel and UL 94-HB plastic; color RAL 9005. Business Impact: Combines mechanical strength with flame retardancy and a clean aesthetic. Application: Suitable for industrial environments requiring durable, visible enclosure components.
Get a Quick Quote for a Rittal 5302052
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302052?
Enquire Now
FAQs
The DK 5302.052 is designed for VX IT enclosures with a width of 800 mm and height up to VX IT 2000 mm. It supports 42 U of cable routing and includes rear-entry options and accessory compatibility, such as the brush kit. When paired with VX IT components, installation alignment is straightforward, reducing commissioning time and ensuring consistent cable management across assemblies.
This duct offers cable entry to the enclosure interior and through the rear panel, enabling flexible routing paths. This reduces cable bending and allows for clean separation between power and data runs. For installers, it means fewer custom adaptations and faster reconfigurations during system upgrades or maintenance windows.
Yes, the DK 5302.052 features tool-free quick-release fastening. This dramatically shortens on-site assembly and service time, simplifies field reworks, and decreases downtime during cabinet reconfigurations. The ease of assembly supports multi-shift maintenance and more predictable project timelines for automation upgrades.
The duct uses sheet steel with UL 94‑HB plastic, providing a flame-retardant path and robust mechanical strength. While CE, SIL, and IP ratings aren’t specified in the data, the UL 94‑HB rating supports safety-conscious design decisions, and the metal-plastic combination ensures durability in industrial environments.
Concealed routing and removable covers simplify cable management, reducing maintenance time and the risk of cable damage. The 42 U capacity, easy access, and compatibility with VX IT accessories enable scalable upgrades with minimal downtime, translating to lower labor costs, faster maintenance cycles, and improved reliability in critical automation systems.
