Rittal 5302053 Cable Duct 47 U for VX IT - UL 94-HB
Part Number: 5302053
Quick Summary
Cable duct 5302053 from Rittal provides concealed cable routing for VX IT enclosures. Maintenance is smoother when access to cabling is quick and tidy, reducing downtime and wiring errors. Key attributes include UL 94-HB plastic components for flame resistance, a robust sheet-steel core, and cradle-to-gate PCF Category B documentation. Its 47 U capacity, 800 mm width and 2,200 mm height fit VX IT configurations while keeping cables organized and airflow unobstructed. The product ships with two covers, 14 cable fingers, and cable retaining bars for a fast, tool-free installation. For asymmetrical interiors, assembly on one side is supported, enabling flexible retrofits in existing VX IT installations. In practice, technicians value direct access to cabling via hinged covers and compatibility with optional brush kits.
Product Information
Extended Description
5302053 Rittal: Cable duct, 47 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 2200 mm
Article number
DK 5302.053
Product description

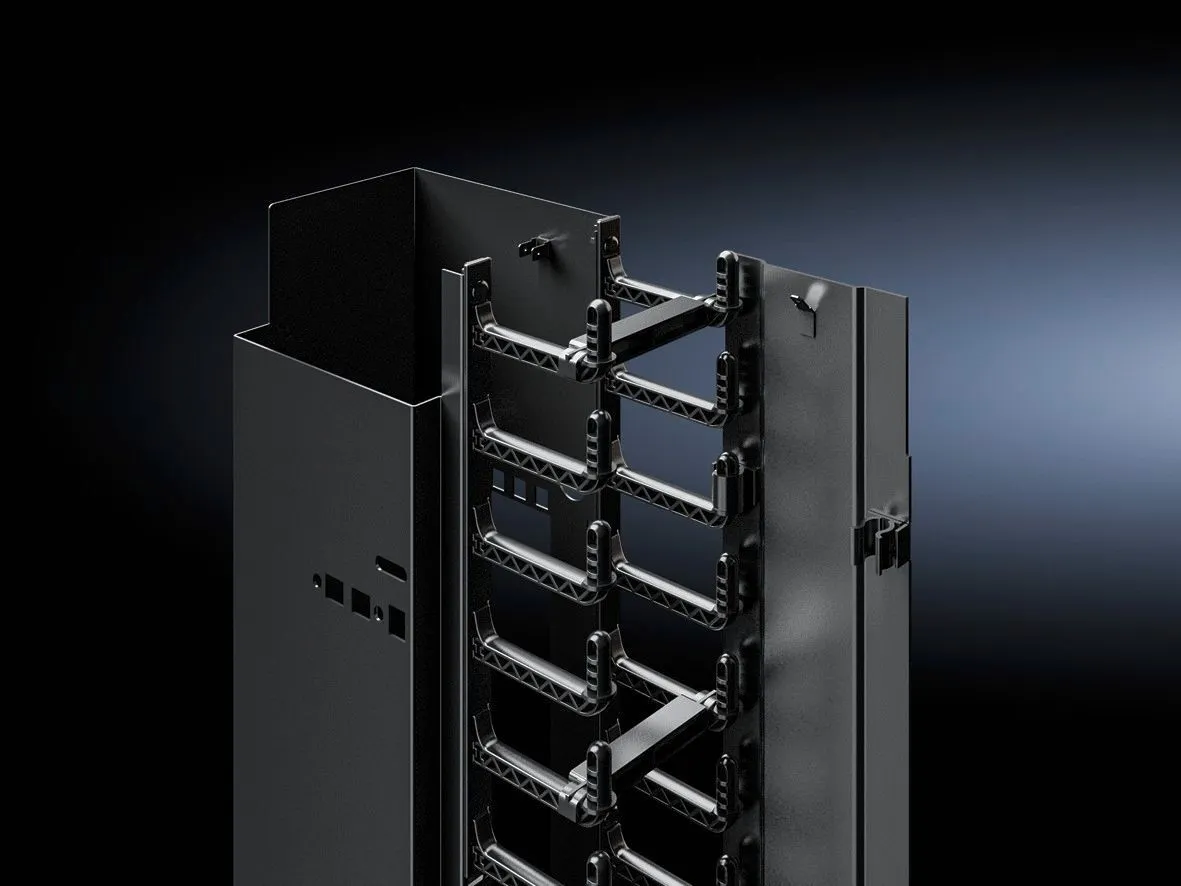

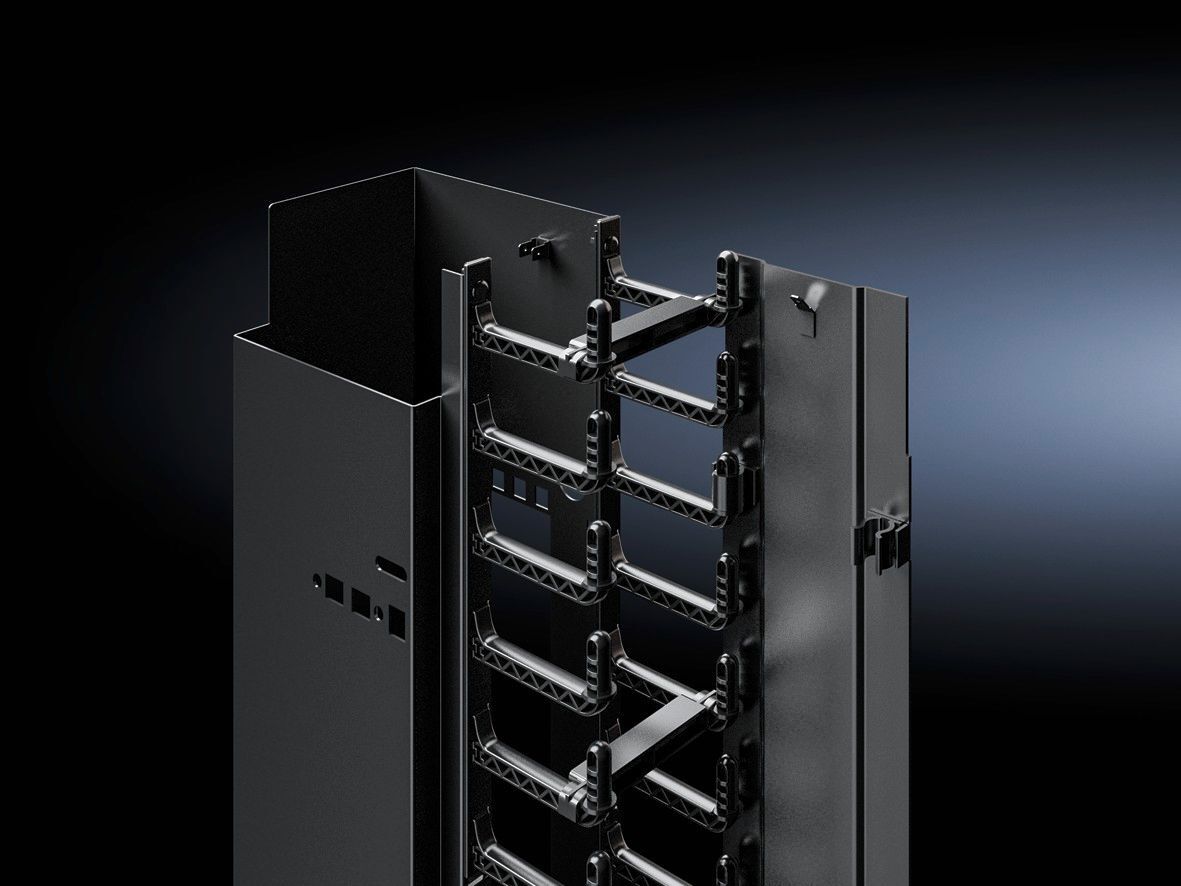

Cable duct for concealed cable routing. Convenient access to the cabling at any time via the hinged duct cover, optionally removable. The duct has cable entry options to the enclosure interior and through the rear panel of the duct. The cable retaining bars enclosed with the duct are snap-mounted onto the cable fingers of the duct with variable depth to support cable routing. Alternatively, the cable duct may also be screw-fastened. For optimum air routing, it may be combined with the brush kit for VX IT.
Benefits
Simple assembly with tool-free quick-release fastening
Material
Sheet steel | Plastic to UL 94-HB
Colour
RALÂ 9005
Supply includes
Cable duct | 2 covers | 14 cable fingers , 6 U | 10 cable retaining bars | Assembly parts
Units
47 U
To fit
Cannot be combined with 482.6 mm (19") mounting angles, dynamic, for VX IT
Note
With symmetrical interior installation in the VX IT enclosure type, may not be combined with dynamic 482.6 mm (19") mounting angles. For asymmetrical interior installation, assembly on one side is supported.
Dimensions
Width:Â 109.5 mm | Depth:Â 314.5 mm | Length:Â 2,099 mm
To fit
Enclosure type:Â VX IT | TX CableNet | Width:Â = 800 mm | Height:Â = 2,200 mm | = 2,200 mm
Packs of
1 pc(s).
Weight/pack
10.26 kg
PCF per pack (cradle-to-gate)
39.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177958593
ETIM 9
EC000012
ECLASS 8.0
27400703
Product description
Cable duct, 47 U, for concealed cable routing. For enclosure width 800 mm, for enclosure height VX IT 2200 mm
Feature → Business Impact → Application: Hinged duct cover with tool-free quick-release fastening enables rapid maintenance access, reducing downtime and enabling fast reconfiguration in live VX IT cabinets; use this in high-turnover data centers to keep cables tidy and accessible. Feature → Business Impact → Application: 47 U capacity and 800 mm width paired with 2,200 mm height maximizes organized cabling in dense VX IT enclosures, improving airflow and reducing risk of heat buildup in industrial cabinets. Feature → Business Impact → Application: Flexible cable entry options to interior and rear panel support easy retrofits and future upgrades; ideal for VX IT and TX CableNet deployments where cable routing must adapt to evolving layouts. Feature → Business Impact → Application: Sheet steel construction with UL 94-HB rated plastic delivers robust, flame-retardant performance for safety-critical installations; essential for compliant factory and data-center wiring. Feature → Business Impact → Application: Supplied with 2 covers, 14 cable fingers, 6 U, 10 cable retaining bars and assembly parts speeds up installation and minimizes part handling; works seamlessly with the VX IT brush kit for optimized airflow and ease of maintenance.
Get a Quick Quote for a Rittal 5302053
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302053?
Enquire Now
FAQs
The DK 5302.053 is designed for VX IT enclosures with 800 mm width and 2,200 mm height, offering 47 U of cable capacity. It can be screwed or used with quick-release features, and it supports asymmetric interior installation for retrofit projects, ensuring flexible integration with VX IT and TX CableNet systems.
Key specs include 47 U capacity, width 109.5 mm, depth 314.5 mm, length 2,099 mm, and a weight of 10.26 kg per pack. The duct uses sheet steel with plastic components rated to UL 94-HB, and comes in color RAL 9005 to match standard enclosures.
Its tool-free quick-release covers speed access for maintenance, the 47 U capacity keeps dense cabling organized, and rear/interior cable entries support flexible routing. Cable fingers and retaining bars simplify management, while compatibility with VX IT brush kits enhances airflow and reduces cooling costs in data centers.
Yes. PCF per pack is 39.1 kg CO2 eq (Category B), indicating a cradle-to-gate environmental footprint estimate. The 10.26 kg per-pack weight and modular design support responsible material use and potential recycling at end of life, aligning with common industrial procurement sustainability goals.
You can access the PDF page and the DE/EN/FR instruction set through Rittal’s site. These resources provide mounting guidelines, wiring options, and assembly parts lists to ensure correct installation and maintenance for VX IT configurations.
