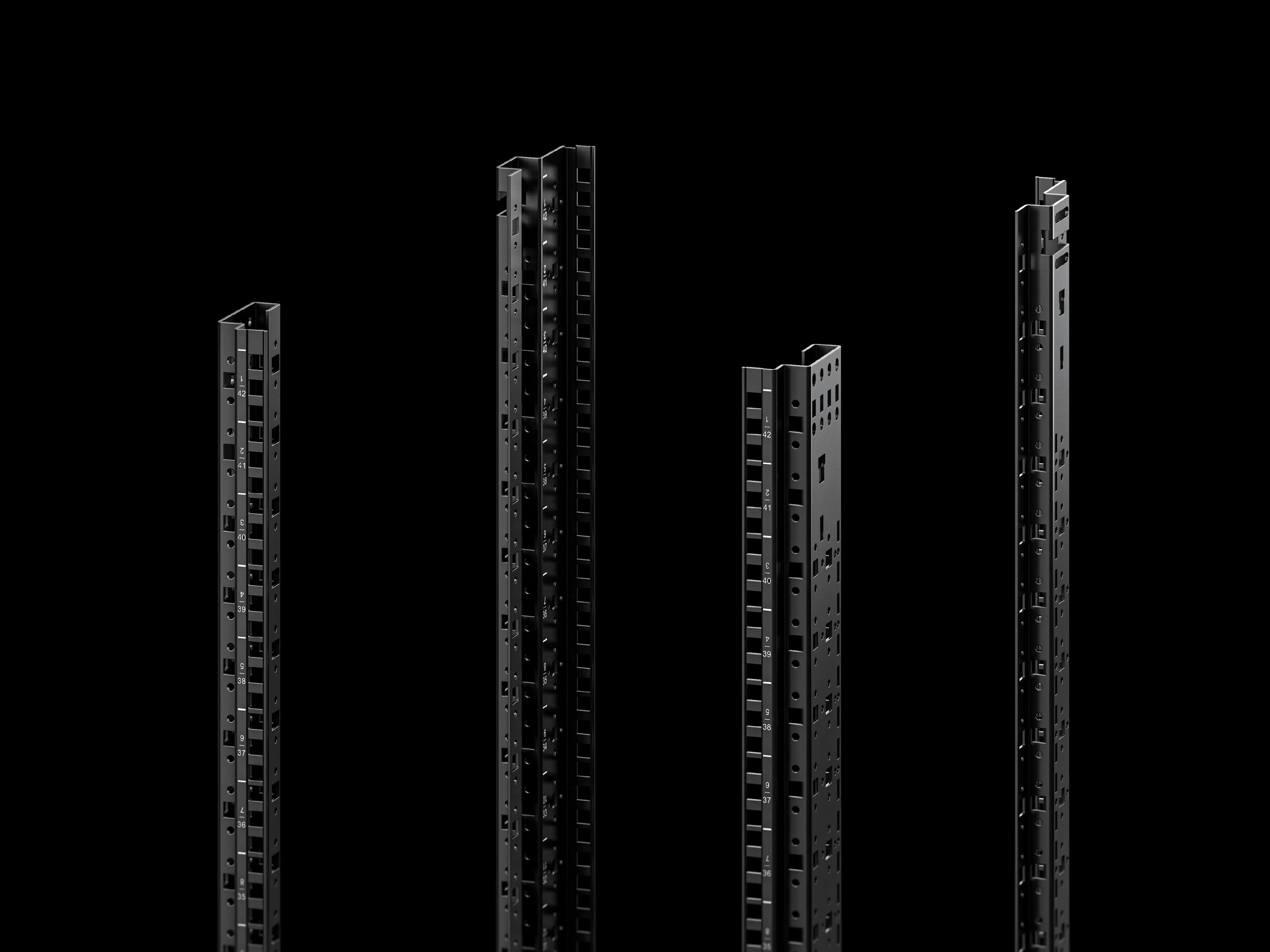

Rittal VX IT 5302.100 Mounting Angles - 19" 15U, RAL 9005
Part Number: 5302100
Quick Summary
Rittal VX IT 5302.100 mounting angles enable a 19-inch mounting level inside VX IT enclosures. Many installations struggle with misaligned mounting points and non-standard kits, causing delays and extra hardware costs. This accessory attaches directly to the VX IT 19 inch system punchings, supporting enclosure heights up to 15U, and ships as a two-pack with assembly parts for quick in-place mounting. The parts are made from sheet steel, 2 mm thick, primed, and finished in RAL 9005 for corrosion resistance and uniform appearance. For regulated environments, check CE compliance for accessories, while IP ratings and SIL considerations apply to the complete enclosure system rather than to the mounting angles. This alignment enables faster installation, easier maintenance, and reduced downtime, delivering tangible cost savings.
Product Information
Extended Description
5302100 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 15 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.100
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 15 U
Packs of
2 pc(s).
Weight/pack
3.22 kg
PCF per pack (cradle-to-gate)
12.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955387
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 15 U, sheet steel, 2 mm, primed, RAL 9005
Feature: 482.6 mm (19") mounting level design for VX IT. Business Impact: Enables universal compatibility with standard 19" server kits, reducing sourcing complexity and risk of stranded inventory. Application: Install 19" servers and cross-members within VX IT enclosures without custom brackets. Feature: Front mounting position and front-accessible assembly parts. Business Impact: Improves serviceability and cable routing, cutting maintenance time in half during rack updates. Application: Data center and industrial cabinet deployments needing rapid component swaps. Feature: 2 mm sheet steel, primed, RAL 9005 finish. Business Impact: Delivers robust corrosion resistance and a consistent aesthetic across enclosures, minimizing wear and repaint needs. Application: Harsh environments where appearance and durability matter. Feature: Pack of two with assembly parts. Business Impact: Simplifies logistics and reduces downtime by ensuring you have enough hardware for quick installs. Application: Project staging and multi-rack deployments. Feature: Weight per pack 3.22 kg and PCF 12.3 kg CO2 eq (Cat B). Business Impact: Supports lifecycle planning with predictable weight handling and environmental footprint. Application: Sustainability-focused procurement and lifecycle assessments.
Get a Quick Quote for a Rittal 5302100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302100?
Enquire Now
FAQs
VX IT 5302.100 is designed to create a standard 482.6 mm (19-inch) mounting level within the VX IT enclosure system for a 15U height. It matches the VX IT rack punchings and accepts typical 19-inch server kits and cross-members. The package includes two mounting angles and assembly parts, enabling straightforward, repeatable installation across multiple racks in a data center or industrial cabinet setup.
The L-shaped design directly interfaces with standard 19-inch system punchings, eliminating the need for custom brackets. This reduces install time, minimizes trial-and-error fitting, and accelerates server kit alignment. With two-pack kits and included assembly parts, technicians can complete mounting tasks faster, improving overall project timelines and reducing labor costs in new installations or upgrades.
Yes. The accessory is specifically intended to build a 19-inch mounting level within the VX IT system for a 15U enclosure. It uses standard 482.6 mm (19") punchings and is compatible with commonly used server mounting kits, making it well suited for data centers and industrial facilities requiring reliable, repeatable 19-inch rack installations.
The data sheet does not list explicit certifications for the mounting angles alone. When sourcing accessories for EU-based installations, verify CE marking as applicable to electrical components and ensure compliance with overall enclosure standards. For IP ratings and SIL considerations, review the complete VX IT system and enclosure installation guidelines to ensure system-level conformity.
The two-pack reduces the likelihood of misfit hardware, lowering rework costs. With a 3.22 kg per-pack weight and a cradle-to-gate PCF of 12.3 kg CO2 eq, the accessory supports predictable installation logistics and sustainability reporting. The standard 2 mm steel, primed finish provides durable performance over the rack’s life, contributing to lower maintenance and replacement needs.
