Rittal 5302102 Mounting Angles VX IT - 19" mounting level
Part Number: 5302102
Quick Summary
Rittal 5302102 mounting angles for VX IT enable a 482.6 mm (19") mounting level inside VX IT enclosures. Installers frequently struggle to align cross-members and preserve a stable 24U mounting height in dense data-center rack layouts. The component is CE-compliant and built from 2 mm primed sheet steel in RAL 9005, ensuring robust VX IT compatibility. It accepts standard 19" installation kits and uses front mounting with side punchings on a U-pitch pattern for flexible integration. This translates to lower commissioning time, fewer field adjustments, and better overall rack-system performance.
Product Information
Extended Description

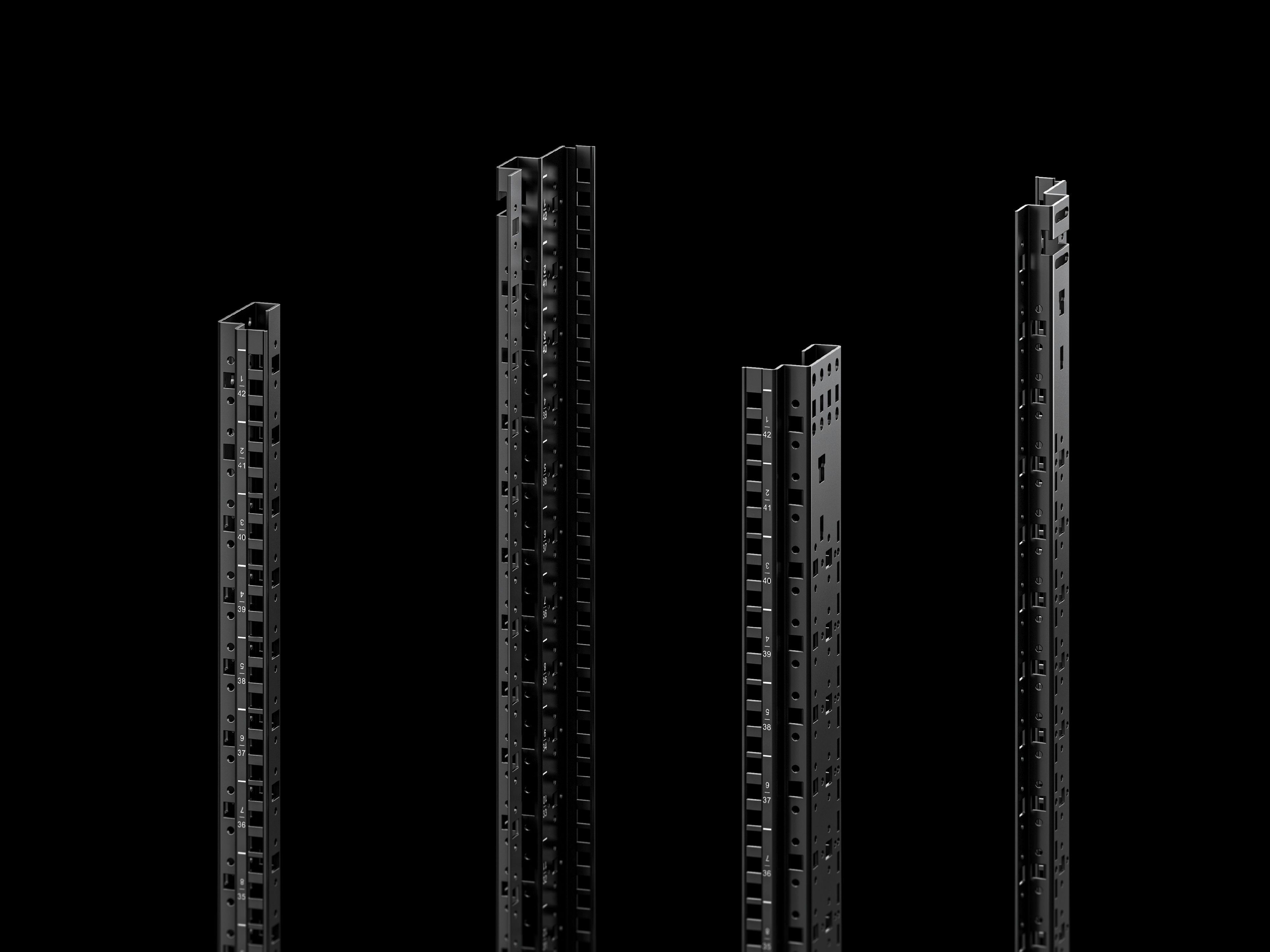

5302102 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 24 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.102
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height:Â = 24 U
Packs of
2 pc(s).
Weight/pack
4.62 kg
PCF per pack (cradle-to-gate)
17.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955400
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 24 U, sheet steel, 2 mm, primed, RAL 9005
Feature: The VX IT 482.6 mm (19") mounting level is an L-shaped solution designed to align with standard 19" punchings. Business Impact: Accelerates initial rack assembly and reduces rework, delivering faster time-to-value for data-center deployments. Application: Ideal for VX IT enclosure families used in server rooms and industrial facilities seeking repeatable, reliable rail mounting. Feature: Side punchings, round and square, on a U-pitch pattern enable flexible cross-member positioning. Business Impact: Improves mounting accuracy and reduces field adjustments during upgrade cycles. Application: Supports diverse equipment depths and cable-management strategies in modern VX IT racks. Feature: Material is sheet steel, 2 mm thick, primed, in RAL 9005. Business Impact: Delivers durable, corrosion-resistant framing that maintains alignment under load. Application: Suitable for high-density VX IT configurations in challenging environments. Feature: Front mounting and compatibility with standard 19" installation kits streamline procurement. Business Impact: Lowers sourcing time and simplifies logistics for ongoing rack deployments. Application: Works with widely available server rails and cross-members for scalable configurations. Feature: Packs of 2 with a total weight of 4.62 kg per pack and PCF of 17.6 kg CO2 eq (Cat B). Business Impact: Supports sustainable procurement and lifecycle planning. Application: Useful for multi-rack rollouts and repeatable installations in manufacturing and IT environments.
Get a Quick Quote for a Rittal 5302102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302102?
Enquire Now
FAQs
The VX IT mounting angles are L-shaped brackets designed to form a 482.6 mm (19") mounting level in VX IT enclosures. Install by aligning with the 19" system punchings, then secure using the supplied assembly parts. Front mounting and cross-member compatibility simplify wiring routes and keep rails plumb, reducing rework during rack builds.
Key specs include 2 mm sheet steel, primed surface finish in RAL 9005, side punchings (round and square) on a U-pitch pattern, front mounting, and a 482.6 mm (19") mounting level for VX IT, with packs of 2 pieces weighing 4.62 kg per pack and PCF 17.6 kg CO2 eq.
Yes. The VX IT 5302102 mounting angles are designed to directly accommodate commercially available 19" server installation kits. They mount to the VX IT rack system using the provided front-mounting points and system punchings, enabling quick integration with common rails, brackets, and cross-members.
The product data notes CE compliance and a robust 2 mm primed steel construction suitable for VX IT rack applications. While IP/SIL ratings are not specified for the hardware itself, the design adheres to typical industrial standards for mounting hardware and rack integration, and users should confirm enclosure-level IP ratings for their specific installation.
By reducing field adjustments, speeding initial assembly, and enabling compatible installation kits, you shorten commissioning times and lower labor costs. The 24U height capability and rigid 2 mm steel construction also minimize rework in high-density racks, delivering predictable performance across multi-rack deployments.
