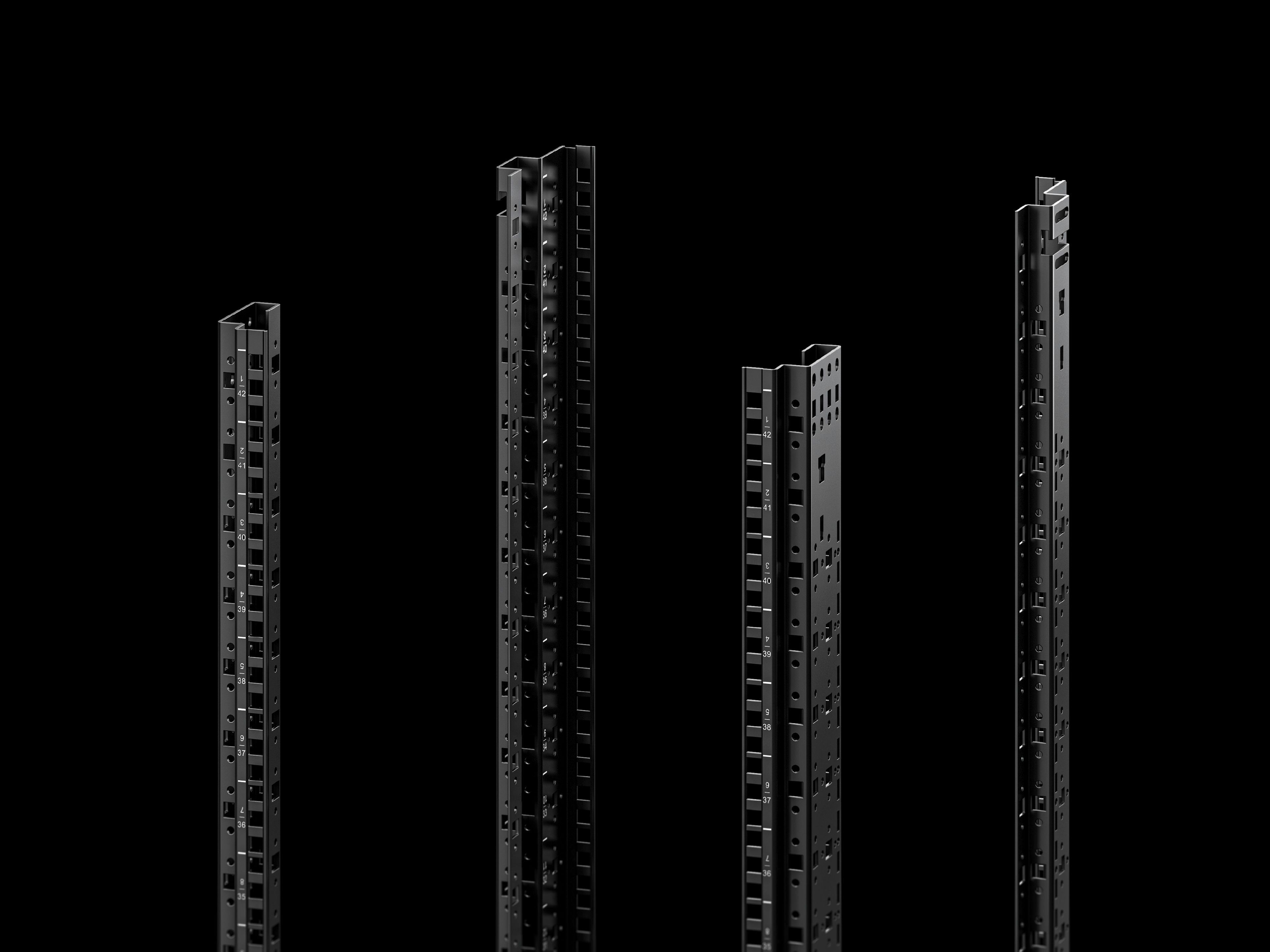

Rittal VX IT 5302.103 Mounting Angles - 24U 19 inch System, RAL 9005
Part Number: 5302103
Quick Summary
Rittal VX IT 5302.103 mounting angles enable 19 inch mounting levels in VX IT enclosures for 24U racks. The design reduces alignment risk and speeds installation by directly accommodating standard server kit fasteners to the 19 inch system punchings. It aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting industry standard parts while keeping your VX IT rack layout predictable. Manufactured from 2 mm sheet steel and primed in RAL 9005, the parts deliver durable, easy to coat enclosures that stay reliable in harsh environments. With a weight of 5.22 kg per pack and PCF of 19.9 kg CO2 eq per pack, this accessory supports sustainable, cost-conscious deployments while maximizing mounting flexibility for 21 to 24 inch variants.
Product Information
Extended Description
5302103 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 24 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.103
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 24 U
Packs of
2 pc(s).
Weight/pack
5.22 kg
PCF per pack (cradle-to-gate)
19.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955417
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 24 U, sheet steel, 2 mm, primed, RAL 9005
Feature: 19 inch mounting level for VX IT racks. Business Impact: enables precise equipment alignment with minimal drift and speeds installation by using standard 19 inch server kit fasteners. Application: ideal for mounting a 482.6 mm 19 inch level in the VX IT housing system. Feature: 2 mm sheet steel, primed, RAL 9005. Business Impact: durable, corrosion-resistant housing with easy field touch-ups. Application: suitable for harsh industrial environments. Feature: Weight per pack 5.22 kg; Packs 2; PCF per pack 19.9 kg CO2 eq (Cat B). Business Impact: manageable handling and sustainable procurement, supporting cradle-to-gate accounting. Application: site-to-site transport and environmental reporting. Feature: Rear mounting position; installation options 21 inch – 24 inch widths. Business Impact: flexible compatibility across VX IT variants, reducing SKU proliferation. Application: varied VX IT configurations. Feature: Supply includes assembly parts; installation with cross-member, depth stays or mounting bracket. Business Impact: faster on-site assembly and fewer missing components, minimizing downtime. Application: standard VX IT kit integrations.
Get a Quick Quote for a Rittal 5302103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302103?
Enquire Now
FAQs
VX IT 5302.103 mounting angles are designed to build a 482.6 mm (19 inch) mounting level within the VX IT enclosure system, using the 19 inch system punchings. They are rear-mounted and work with standard 19 inch server kits for reliable integration.
Key specs include sheet steel construction at 2 mm, primed surface in RAL 9005, weight 5.22 kg per pack, packs of 2, and a PCF cradle-to-gate value of 19.9 kg CO2 eq per pack. It is ETIM 9 EC002620 and ECLASS 8.0 27189261 compliant.
Yes. Installation options cover alternative widths from 21 to 24 inches depending on the mounting variant and rack dimensions, enabling flexible integration with VX IT configurations.
The supply includes assembly parts and mounting instructions. It is designed to be combined with cross-members, depth stays or mounting brackets to attach quickly to the VX IT rack system, minimizing on-site handling.
Each pack weighs 5.22 kg, with two packs per product, facilitating manageable handling. The cradle-to-gate PCF is 19.9 kg CO2 eq per pack, supporting sustainability calculations and greener procurement decisions.
