Rittal VX IT 5302.104 Mounting Angles - 38U, 19in
Part Number: 5302104
Quick Summary
Rittal VX IT 5302.104 mounting angles enable a 482.6 mm (19”) mounting level in VX IT enclosures for reliable 19" server and network installations. The design addresses the common pain point of misaligned rack kits by attaching directly to the 19" system punchings, reducing assembly time and fit issues. The data describes sheet steel, 2 mm, primed in RAL 9005, suitable for front mounting in a 38U enclosure; users should confirm finish and environment compatibility. Note that explicit CE, SIL, or IP ratings aren’t listed in the provided data, so regulatory compliance should be verified for your application. Packaged as 2 pieces per set, with a 7.3 kg weight per pack, enabling scalable, cost-efficient rack deployments.
Product Information
Extended Description

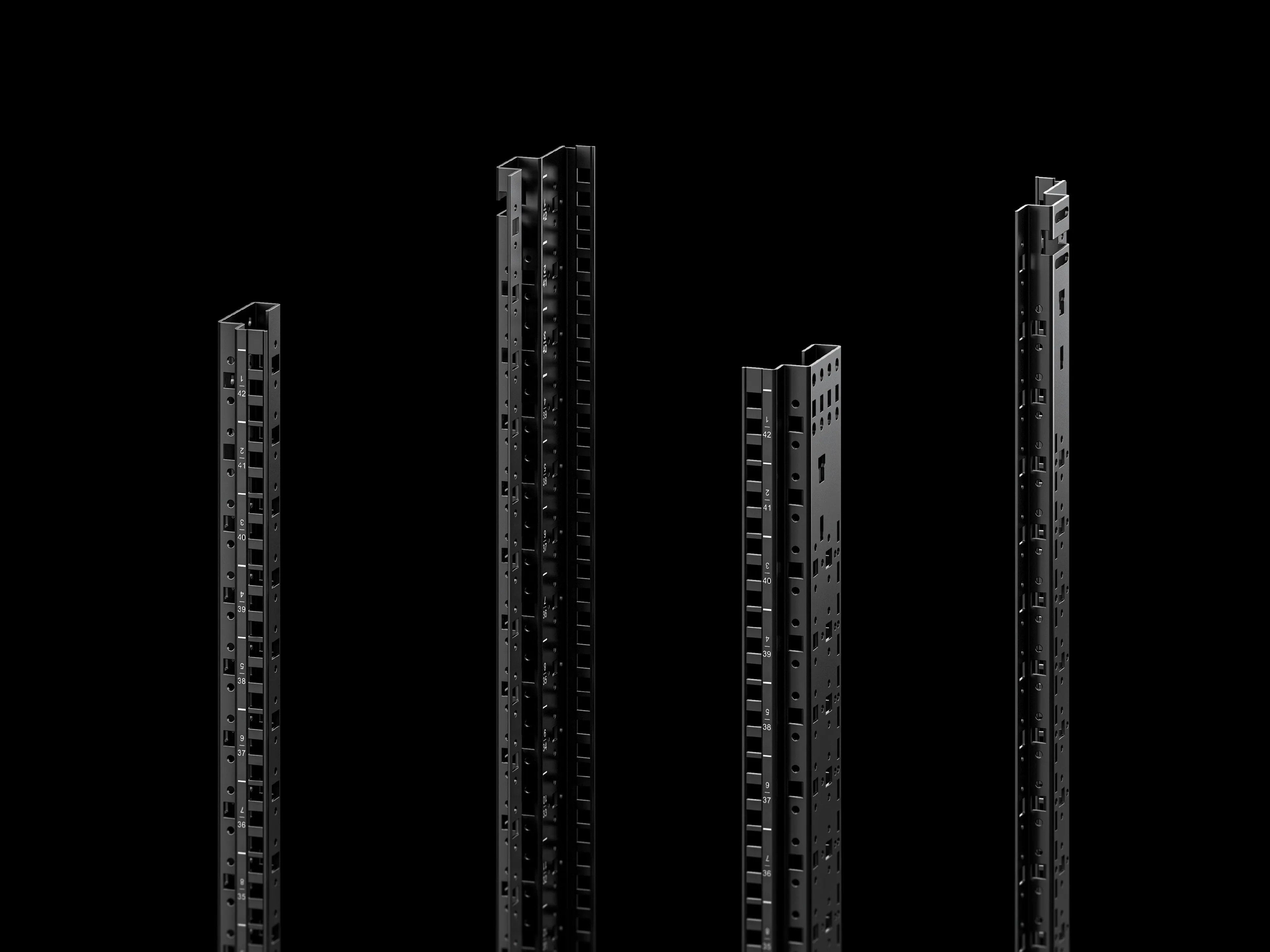

5302104 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.104
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 38 U
Packs of
2 pc(s).
Weight/pack
7.3 kg
PCF per pack (cradle-to-gate)
27.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955424
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2 mm, primed, RAL 9005
Feature: 19" mounting level compatibility with VX IT systems → Business Impact: Standardized server/kits alignment reduces variation and downtime → Application: Ideal for VX IT enclosures, ensuring fast, repeatable installation. Feature: Material and finish—sheet steel 2 mm, primed, RAL 9005 → Business Impact: Durable, corrosion-resistant framing that maintains appearance and structural integrity over time → Application: Suitable for front-mounted rack components in commercial data centers. Feature: Front mounting position and U pitch compatibility (482.6 mm / 19") → Business Impact: Direct attachment to existing punchings improves rigidity and supports heavier equipment without adapters → Application: Widely compatible with common 19" server rails and mounting kits. Feature: Assembly and compatibility options—assembly parts included; supports cross-members and mounting brackets → Business Impact: Reduces purchasing complexity and accelerates deployment → Application: Works with VX IT rack system variants and different depths. Feature: Pack configuration and sustainability metrics—2 pcs per pack; weight 7.3 kg per pack; PCF 27.8 kg CO2 eq (Cat B) → Business Impact: Predictable logistics and lower cradle-to-gate environmental footprint → Application: Scalable installations with environmental considerations in mind.
