Rittal VX IT 5302.105 Mounting Angles - 38U 19in System
Part Number: 5302105
Quick Summary
Rittal VX IT mounting angles enable precise 482.6 mm (19") mounting levels within the VX IT rack system. This accessory addresses the common challenge of aligning server kits to standard 19" punchings and mounting patterns across VX IT variants. While the data here does not list explicit certifications, the design uses standard VX IT features such as rear mounting, 2 mm sheet steel, primed finish, and RAL 9005 color to support robust industrial use. By delivering a ready-to-install mounting level with compatible hardware, you gain faster deployment, reduced installation errors, and improved serviceability for data centers and industrial IT enclosures. This aligns with your goals for reliable, scalable rack infrastructure and streamlined maintenance.
Product Information
Extended Description

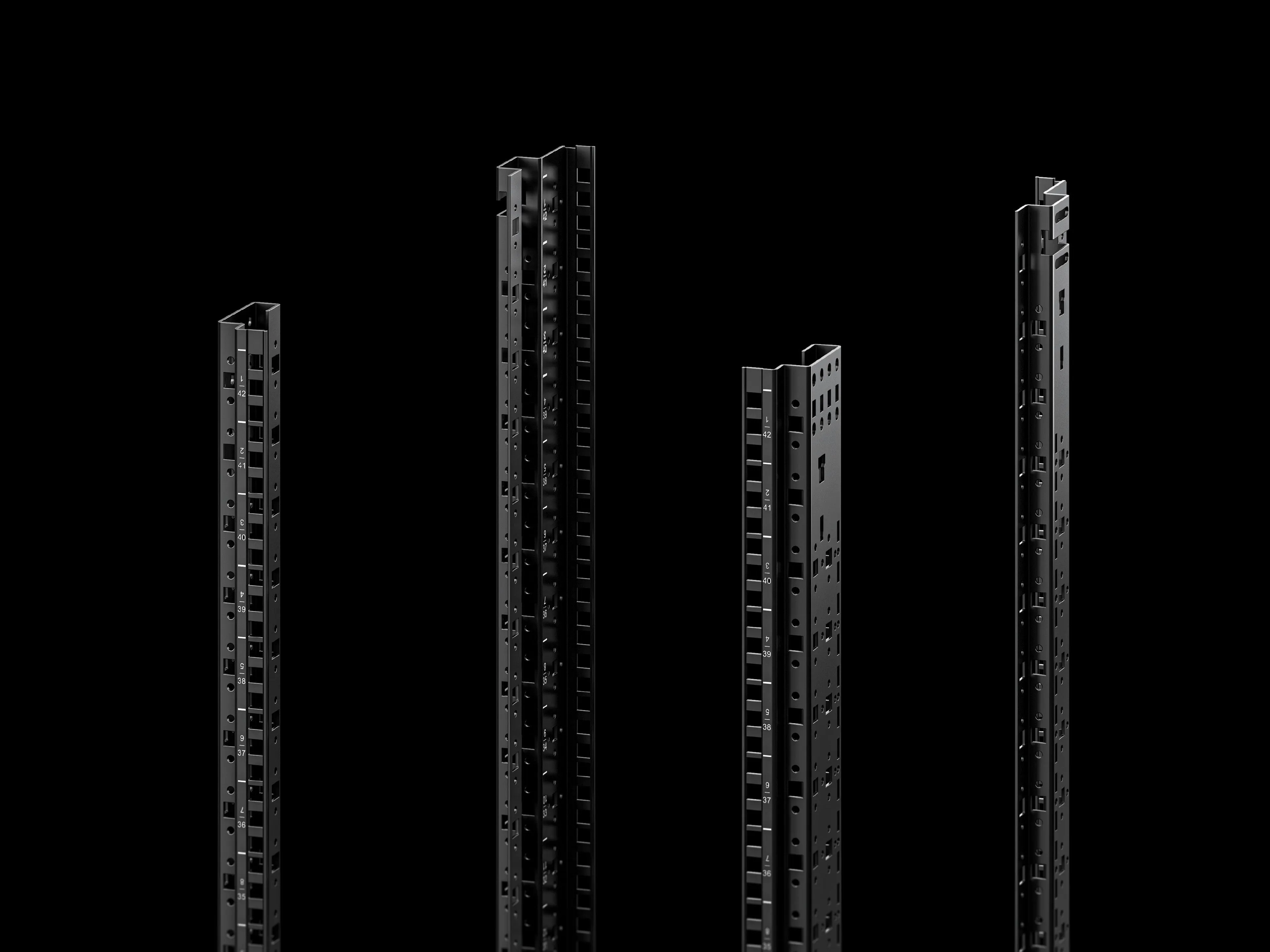

5302105 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.105
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 38 U
Packs of
2 pc(s).
Weight/pack
8.14 kg
PCF per pack (cradle-to-gate)
31 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955431
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2 mm, primed, RAL 9005
Feature: Standard 482.6 mm (19") mounting angles for VX IT. Benefit: Enables consistent, repeatable mounting levels across VX IT racks, reducing custom fab work and installation time. Application: Use when building an inch-based mounting level in enclosure heights up to 38 U. Feature: L-shaped design that accommodates commercially available server installation kits. Benefit: Simplifies upgrades and retrofits by using widely available hardware, lowering procurement complexity and total cost of ownership. Application: Ideal for data centers needing quick integration of new server kits in existing VX IT systems. Feature: Material and finish—sheet steel, 2 mm, primed, RAL 9005. Benefit: Delivers rugged, corrosion-resistant support suitable for harsh industrial environments, extending enclosure lifespan. Application: Long-term deployments where durability matters. Feature: Weight per pack and pack composition—8.14 kg per pack, 2 pieces. Benefit: Predictable handling, balanced load distribution, and straightforward logistics. Application: Optimized for shipping and on-site installation. Feature: Compatibility and installation options—rear mounting, 38 U fit, supports 21–24" installation widths depending on variant. Benefit: Flexible integration across VX IT configurations, enabling scalable rack layouts. Application: Fits a wide range of VX IT rack dimensions for growing IT workloads.
Get a Quick Quote for a Rittal 5302105
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302105?
Enquire Now
FAQs
Install by aligning the L-shaped angles with the 19" system punchings, securing with standard server mounting kit hardware, and combining with cross-members or depth options as needed. The rear mounting position simplifies cable routing and tool-free adjustment for 38U VX IT configurations.
Yes. The 482.6 mm (19") mounting level is designed to directly accommodate commercially available 19" server installation kits, fastening to the VX IT punchings for a secure, standard-compliant installation.
The mounting angles are supplied in packs of two, with a total weight of approximately 8.14 kg per pack. This packaging supports efficient handling and straightforward installation within VX IT enclosures.
Yes. The product is designed to fit VX IT enclosures with a height of 38U, enabling a stable, inch-based mounting level aligned with standard 482.6 mm (19") punchings.
They are made from sheet steel, 2 mm thick, primed for surface treatment, and finished in RAL 9005. This combination provides durability in industrial environments and consistent appearance.
