Rittal 5302106 Mounting Angles - VX IT 42U 19-inch
Part Number: 5302106
Quick Summary
Rittal VX IT 5302.106 mounting angles enable a precise 482.6 mm (19”) mounting level for VX IT enclosures. They address common misalignment and compatibility challenges when integrating 19" server kits. While the data notes ETIM 9 EC002620 and ECLASS 8.0 27189261 for catalog interoperability, there are no explicit CE, SIL, or IP ratings listed here; always verify certifications with the supplier. These accessories streamline front-mount installations and support scalable VX IT configurations, enhancing deployment speed and reducing change orders. For project teams, this means consistent rack alignment, improved kit compatibility, and predictable installation timelines during server upgrades or data center refreshes.
Product Information
Extended Description

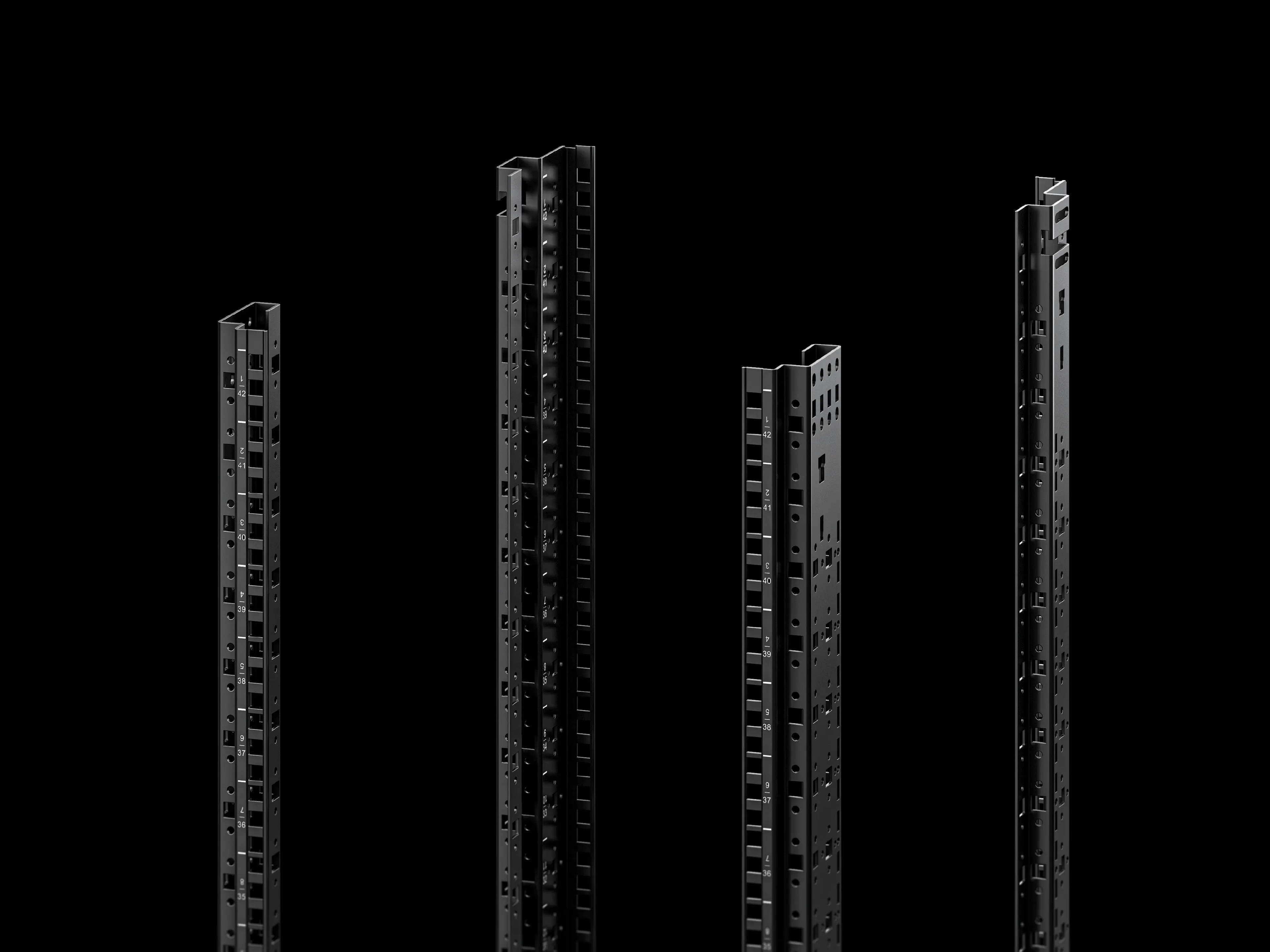

5302106 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.106
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 42 U
Packs of
2 pc(s).
Weight/pack
8.02 kg
PCF per pack (cradle-to-gate)
30.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955448
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2 mm, primed, RAL 9005
Feature → Business Impact → Application: L-shaped mounting angles designed for VX IT provide a reliable 482.6 mm (19") mounting level, reducing alignment errors and enabling quick attachment of server installation kits directly to 19" system punchings. This translates to shorter deployment windows and fewer post-install tweaks on busy projects. Application: Ideal for VX IT housings used in data centers and server rooms where 42U enclosure height is standard and faster kit integration is required.Feature → Business Impact → Application: 2 mm sheet steel with primed surface and RAL 9005 color offers robust mechanical support while maintaining a uniform finish that matches other VX IT components. Benefit: corrosion resistance and streamlined aesthetics reduce maintenance concerns and simplify replace-or-upgrade scenarios. Application: Enclosures in operational facilities requiring durable hardware with consistent appearance.Feature → Business Impact → Application: Side punchings, round and square, on a U pitch pattern deliver broad compatibility with common 19" installation kits. Benefit: fewer part substitutions and smoother vendor coordination. Application: Server rack installs where multiple manufacturers’ kits must align with VX IT punchings.Feature → Business Impact → Application: Supplied with assembly parts and front mounting position for straightforward, front-access installation. Benefit: faster setup and clear installation workflows. Application: Quick-turn deployments in office-to-data-center transitions or maintenance windows.Feature → Business Impact → Application: Installation options from 21"–24" widths provide flexible alignment to varying rack dimensions. Benefit: scalable configurations without redesigning mounting hardware. Application: Mixed-rack environments where kit widths vary by vendor and frame size.Feature → Business Impact → Application: Material and weight data (2 mm sheet steel, 8.02 kg per pack; PCF 30.6 kg CO2 eq per pack) supports sustainability reporting and predictable handling. Benefit: lower lifecycle impact and easier logistics planning. Application: Green data-center projects requiring documented PCF metrics and transport planning.
Get a Quick Quote for a Rittal 5302106
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302106?
Enquire Now
FAQs
Mount the angles to the VX IT 19" system punchings at the front, align with the 482.6 mm (19") level, and assemble with the cross-member or mounting bracket as instructed. The kit includes assembly parts and supports 21"–24" installation widths depending on the rack dimensions.
Yes. The L-shaped design directly accommodates commercially available 19" installation kits and secures them to the VX IT system punchings, enabling quick and reliable server kit mounting.
The angles are made from 2 mm sheet steel with a primed surface and are finished in RAL 9005. Each pack weighs 8.02 kg, with two pieces per pack.
They support a 42U enclosure height and provide a 482.6 mm (19") mounting level within the VX IT rack system, with front mounting position for straightforward installation.
Catalog interoperability is supported by ETIM 9 EC002620 and ECLASS 8.0 27189261. The PCF value is 30.6 kg CO2 eq per pack (Cat B), reflecting cradle-to-gate environmental accounting.
