Rittal 5302107 Mounting Angles VX IT - 42U, RAL 9005
Part Number: 5302107
Quick Summary
Rittal VX IT mounting angles 5302107 enable 19 inch mounting levels in VX IT enclosures. This solution helps simplify server kit installation and alignment, reducing setup time in data centers and industrial IT closets. While this data does not specify CE, IP, or SIL certifications, verify compliance via Rittal's official documentation for your regional requirements. In practice, these mounting angles support standard VX IT rack configurations and 42U enclosure heights, delivering reliable compatibility with commonly available 19" server kits and cross-members, while offering a primed finish for easy factory or field paint matching. For procurement and ongoing maintenance, this accessory pairs well with VX IT rack systems and provides a scalable path for future infrastructure upgrades.
Product Information
Extended Description

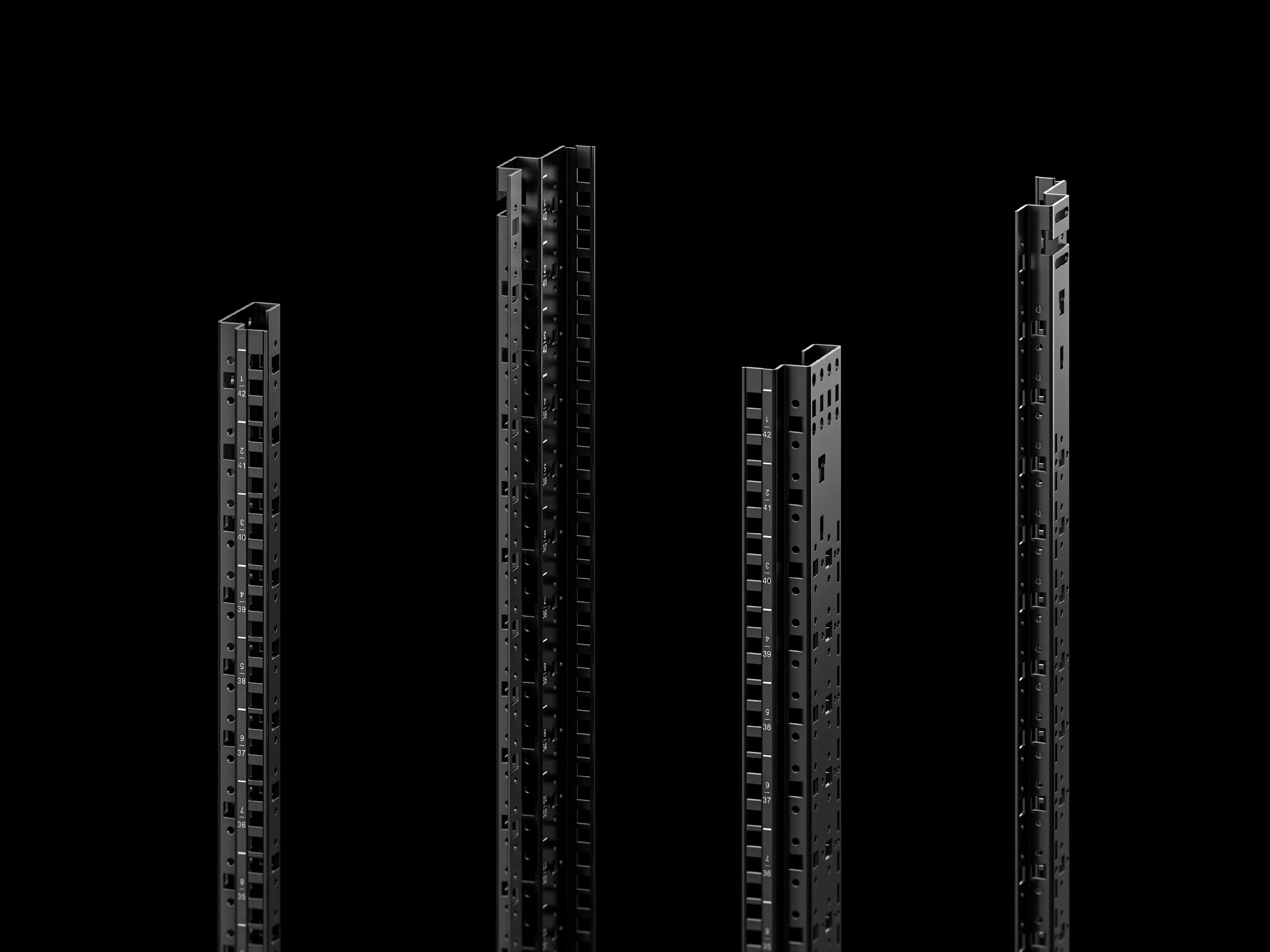

5302107 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.107
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 42 U
Packs of
2 pc(s).
Weight/pack
8.94 kg
PCF per pack (cradle-to-gate)
34.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955455
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2 mm, primed, RAL 9005
Feature: 482.6 mm (19") mounting level compatibility within the VX IT system. Business Impact: Enables standard 19 inch server kits to be mounted without adapters, reducing installation time and error rates. Application: Ideal for VX IT rack systems in data centers and industrial IT rooms, improving deployment speed for new servers. Feature: L-shaped mounting angles with rear mounting position. Business Impact: Improves rigidity and stability of mounted equipment, enhancing overall enclosure integrity and hot-swap readiness. Application: Suitable for rear-mounted cross-members and server wavefront installations in VX IT enclosures. Feature: Material and finish — sheet steel, 2 mm, primed, RAL 9005. Business Impact: Delivers durable, corrosion-resistant support with a uniform aesthetic, simplifying color matching in controlled environments. Application: Data centers and manufacturing facilities requiring consistent enclosure finishes. Feature: Pack size and weight — 2 pieces per pack, 8.94 kg per pack. Business Impact: Streamlines packaging, shipping costs, and on-site handling, contributing to lower total cost of ownership. Application: Procurement planning for medium-to-large rack deployments. Feature: Installation options — supports 21"–24" widths, depending on rack variant. Business Impact: Provides flexibility to fit multiple VX IT configurations and cross-member layouts, reducing the need for alternative hardware. Application: Custom rack builds in mixed-architecture facilities. Feature: Environmental data — PCF 34.1 kg CO2 eq (Cat B). Business Impact: Supports sustainability goals with a cradle-to-gate carbon footprint visibility, aiding green procurement decisions. Application: Responsible sourcing for data centers and industrial IT. Feature: Supply includes assembly parts and guidance. Business Impact: Accelerates time-to-value with clear assembly instructions and fewer vendor callbacks. Application: Installation teams seeking a streamlined, repeatable process.
Get a Quick Quote for a Rittal 5302107
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302107?
Enquire Now
FAQs
These mounting angles are designed for VX IT enclosures and support a 482.6 mm (19") mounting level using rear system punchings. They ship as a two-piece pack and are intended to work with cross-members and mounting brackets to create a stable, industry-standard 19" server mounting frame. When planning installations, verify that your VX IT rack height is 42U and that your cross-members match the 482.6 mm (19") spacing.
Key specs include sheet steel construction at 2 mm thickness, primed surface finish, and color RAL 9005. The kit supports 42U enclosure height, weighs 8.94 kg per pack, and is supplied as two mounting angles per pack. It is intended for 19" server equipment and can be used with assorted VX IT installation kits.
The provided product data does not specify CE, IP, or SIL certifications. For regulatory compliance, consult the official Rittal datasheets or contact a Rittal representative to confirm applicable certifications for your region and application.
Start by aligning the rear mounting angles with the VX IT system punchings, then attach them using the provided assembly parts. They are designed to be used with cross-members, depth stays, or mounting brackets to form the 482.6 mm (19") level. Follow the assembly instructions to ensure proper fit and load distribution on a 42U VX IT enclosure.
Using these standardized 19" mounting angles reduces installation time, minimizes misalignment, and ensures compatibility with a wide range of server kits and VX IT configurations. The two-piece pack supports efficient procurement and shipping, while the primed finish and 42U design align with typical data center rack specifications, aiding faster deployment and predictable uptime.
