Rittal VX_IT 5302.108 Mounting Angles - 47U, RAL 9005
Part Number: 5302108
Quick Summary
Rittal VX_IT 5302.108 mounting angles enable precise 19-inch server mounting within VX IT enclosures. This solution addresses alignment drift and time-consuming setup when adding cross-members or mounting brackets. In typical deployments, installers appreciate a front-mounted, 47 U rack accessory that works with standard 482.6 mm (19") server kits and VX IT punchings. While CE/SIL/IP certifications are not listed in this data, the product carries ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, supporting procurement and compatibility checks. For teams managing data-center infrastructure, this hardware reduces custom fabrication, accelerates rollout timelines, and reinforces consistent hardware standards across racks.
Product Information
Extended Description

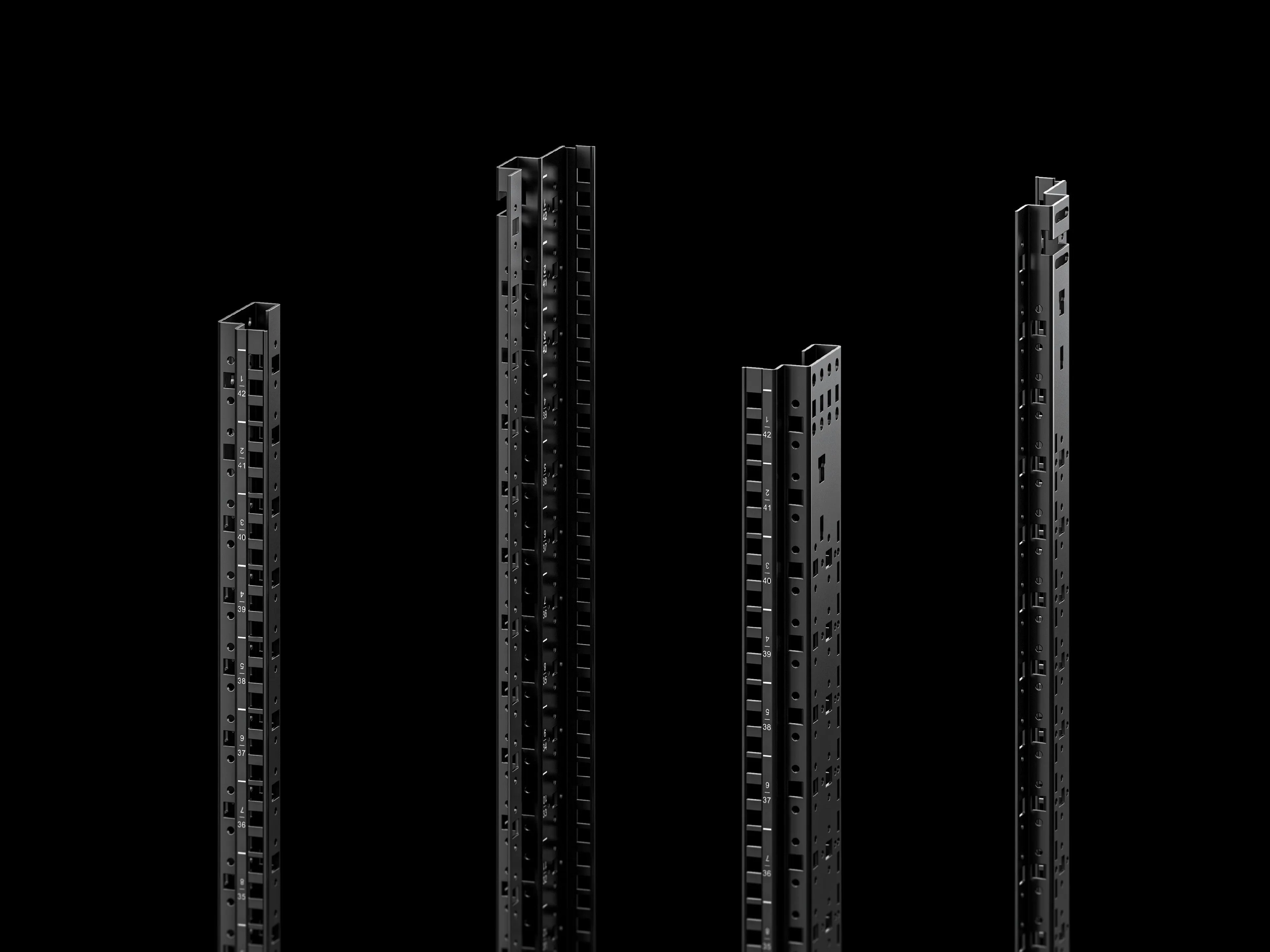

5302108 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 47 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.108
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height:Â = 47 U
Packs of
2 pc(s).
Weight/pack
8.68 kg
PCF per pack (cradle-to-gate)
33.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955462
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 47 U, sheet steel, 2 mm, primed, RAL 9005
Feature: L-shaped mounting angles designed for 482.6 mm (19") mounting levels in the VX IT system. Business Impact: Enables fast, repeatable assembly with standard 19" server kits, eliminating improvisation and reducing on-site errors. Application: Use as a front-mounted element to form a reliable mounting level across VX IT enclosures up to 47 U. The solution integrates with all commercially available server installation kits, minimizing compatibility risk. Feature: Side punchings, round and square, on a U pitch pattern. Business Impact: Flexible cross-member and attachment options, enabling precise equipment placement and retrofit capability without custom brackets. Application: Perfect for mixed 1U–4U servers and storage devices within VX IT racks. Feature: Material, finish, and compatibility. Business Impact: Sheet steel 2 mm with primed surface delivers durable, paint-ready installation suitable for harsh environments. Application: Ideal for industrial data centers and manufacturing facilities seeking reliable aesthetics and corrosion resistance. Feature: Pack configuration and sustainability. Business Impact: Packs of 2 with 8.68 kg per pack streamline logistics while the 33.1 kg CO2 eq (Cat B) PCF supports lower environmental footprint goals. Application: Use in multi-rack deployments to standardize parts and simplify BOMs. Feature: Installation options and instructions. Business Impact: Compatibility with 21"–24" widths depending on variant and rack dimensions reduces part proliferation. Application: Combine with cross-members, depth stays, or mounting brackets for complete attachment. Feature: Assembly scope and classification. Business Impact: Clear fitment and traceability with ETIM 9 and ECLASS 8.0 references reduce procurement risk. Application: Use within VX IT rack systems as standard 19" mounting level components.
Get a Quick Quote for a Rittal 5302108
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302108?
Enquire Now
FAQs
The VX_IT 5302.108 mounting angles are designed to create a 482.6 mm (19") mounting level inside VX IT enclosures, matching standard 19" server kits and cross-members. They support front-mount installation for enclosure heights up to 47 U and integrate with commonly available server installation hardware to ensure consistent alignment across multiple racks.
By providing a ready-made front-mounted 19" mounting level, these angles reduce on-site fabrication and trial-and-error fitting. The standard 19" pitch and compatible cross-members speed up rack assembly, improving overall space utilization and decreasing commissioning time for new equipment rollouts.
Yes, the angles are specified for 47 U VX IT enclosures with a front mounting position. The product packs contain 2 pieces per pack, with each pack weighing 8.68 kg, enabling straightforward BOMs and efficient logistics for multi-rack deployments.
The listing includes ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, which support procurement and interoperability in standard industrial data environments. Customs and identification details include a EAN 4028177955462 and Customs tariff number 73269098 for trade compliance.
Plan for compatibility with cross-members, depth stays, or mounting brackets as needed. Installation options cover widths from 21" to 24" depending on the rack variant and dimensions. The parts are intended to be used with the VX IT rack system to form a complete, repeatable 19" mounting solution.
