Rittal VX IT 5302.109 Mounting Angles - 19in, RAL 9005
Part Number: 5302109
Quick Summary
Rittal VX IT 5302.109 mounting angles enable a 19-inch mounting level inside VX IT enclosures for server systems. This helps engineers achieve tidy, standards-aligned rack builds with consistent punchings and kit compatibility, reducing trial-and-error during installation. ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications support accurate cataloging and interoperability. This solution delivers business value by facilitating faster deployments and repeatable results, while integrating with VX IT rack systems and installation kits to optimize space, performance, and uptime in data center or industrial IT environments.
Product Information
Extended Description

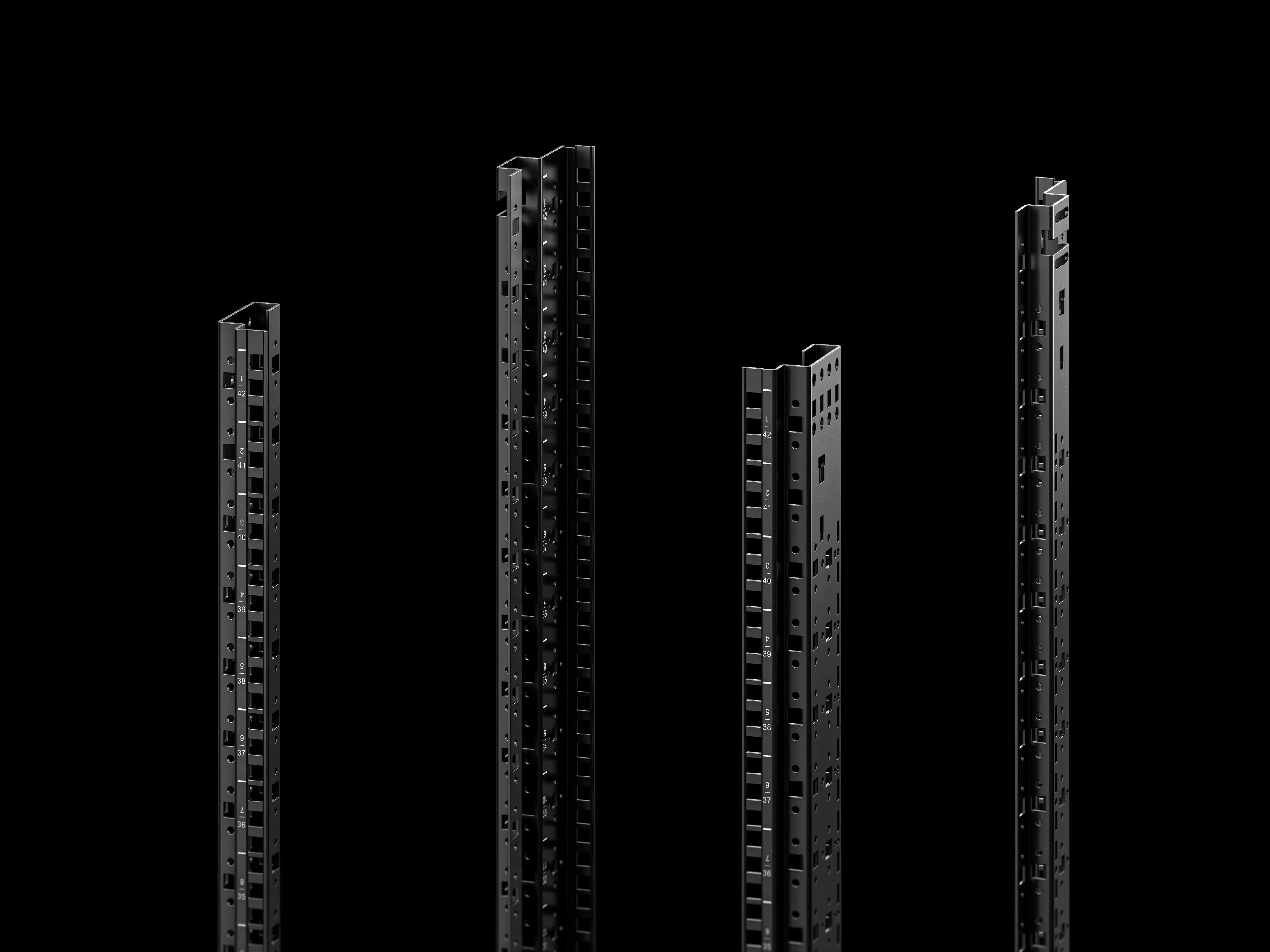

5302109 Rittal: Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 47 U, sheet steel, 2 mm, primed, RAL 9005
Article number
VX_IT 5302.109
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design directly accommodates all commercially available installation kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height:Â = 47 U
Packs of
2 pc(s).
Weight/pack
9.72 kg
PCF per pack (cradle-to-gate)
37Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955479
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles standard, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 47 U, sheet steel, 2 mm, primed, RAL 9005
Feature: Standard 482.6 mm (19") mounting level for VX IT. Business Impact: Enables consistent 19" server kit alignment, reducing rework and expediting deployment. Application: Use within the VX IT rack system to build a reliable mounting plane for enclosure height 47 U. Feature: L-shaped design and rear mounting position. Business Impact: Simplifies cabling and improves access for maintenance while preserving rear clearance. Application: Mounting angles attach directly to 19" system punchings, compatible with cross-members and mounting brackets. Feature: Material and finish. Business Impact: Sheet steel, 2 mm with primed surface ensures rugged durability and corrosion resistance for long service life. Application: Suitable for industrial IT and data center environments needing robust enclosures. Feature: Compatibility and installation options. Business Impact: Supports installation widths from 21"–24" depending on variant and rack dimensions, reducing the need for custom parts. Application: Streamlines procurement and inventory management. Feature: Packaging and sustainability. Business Impact: Packs of 2 with weight 9.72 kg per pack and PCF 37 kg CO2 eq (Cat B) support efficient logistics and greener manufacturing. Application: Favorable for sustainability-focused projects and corporate ESG reporting.
Get a Quick Quote for a Rittal 5302109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302109?
Enquire Now
FAQs
VX IT 5302.109 mounting angles are designed to build a 19" mounting level within the VX IT system and support alternative installation widths from 21" to 24" depending on the chosen rack variant. They pair with cross-members, depth stays, or mounting brackets, enabling flexible configurations for different VX IT enclosures.
The L-shaped mounting angles directly accommodate all commercially available installation kits for 19" server systems and fasten to the 19" system punchings. This ensures reliable alignment, minimizes kit conflicts, and simplifies integration with standard server rails and mounting hardware.
Yes. The VX IT 5302.109 is specified to fit enclosure height of 47 U, with rear mounting and 19" mounting level support. The sheet steel construction (2 mm) and primed finish provide structural integrity for high-density server configurations in 47 U VX IT racks.
Each pack has a cradle-to-gate PCF of 37 kg CO2 eq (Category B), reflecting the product’s environmental footprint. The 2 mm sheet steel and primed finish support durable, long-life installation, reducing replacement cycles and waste. Packaging is designed for efficient logistics with two units per pack.
The supply includes assembly parts necessary to mount a 19" level within the VX IT system. Installation should be performed with a cross-member, depth stays, or a mounting bracket as needed. The rear mounting position and 47 U height guidance help ensure correct alignment and a secure, service-friendly rack configuration.
