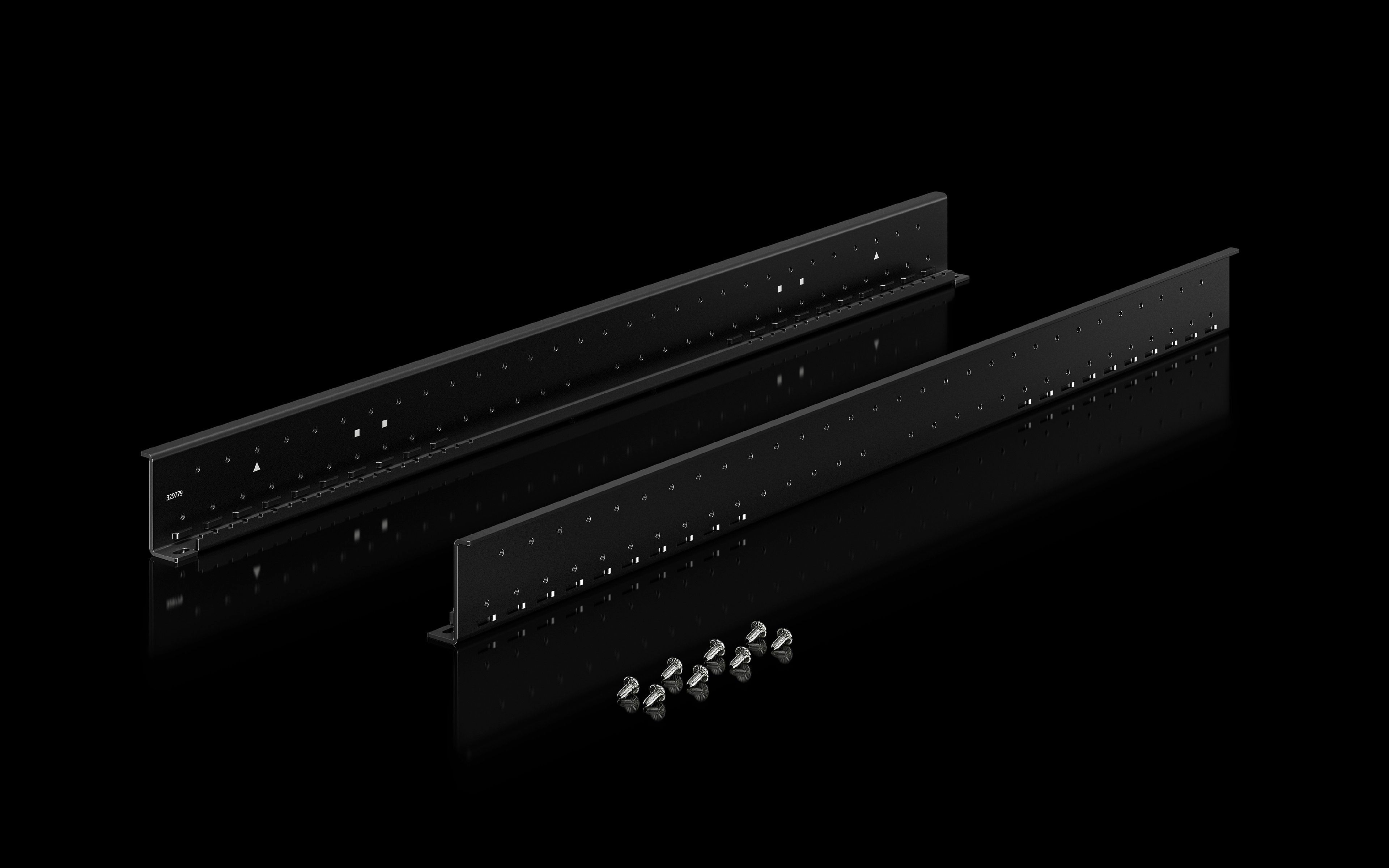

Rittal VX_IT 5302.111 Mounting Angles - 15kN Heavy
Part Number: 5302111
Quick Summary
VX_IT 5302.111 mounting angles are designed to support 19-inch server-rack installations within VX IT enclosures. Users often struggle with achieving high load capacity and precise alignment when expanding enclosures. For robust compliance in industrial settings, verify CE marking, IP-rated protection where specified, and SIL integrity for critical applications. This combination of a spray-finished sheet steel build in RAL 9005 and reliable mounting geometry delivers faster, safer installations, while ensuring compatibility with VX IT components and long-term cost efficiency.
Product Information
Extended Description
5302111 Rittal: Depth stays to accommodate 482.6 mm (19") mounting angles. For enclosure width: = > 600 mm, for enclosure depth: = 1,000 mm, sheet steel, spray-finished, RAL 9005
Article number
VX_IT 5302.111
Design
for VX IT 482.6 mm (19") mounting angles, standard
Product description
To accommodate 19" mounting angles.
Benefits
Particularly high load capacity up to 15,000 N
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
Depth stays | Assembly parts | 4 support strips (2 top, 2 bottom)
Assembly instruction
For the attachment of mounting angles in enclosures that are greater than 1000 mm deep and greater than 600 mm wide, an additional support rail for VX IT is required
To fit
Enclosure type:Â VX IT, standard | Width:Â > 600 mm | Depth:Â = 1,000 mm
Packs of
4 pc(s).
Weight/pack
9.1 kg
PCF per pack (cradle-to-gate)
34.7Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955493
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Depth stays to accommodate 482.6 mm (19") mounting angles. For enclosure width: = > 600 mm, for enclosure depth: = 1,000 mm, sheet steel, spray-finished, RAL 9005
Depth stays are included to accommodate 19-in mounting angles, simplifying alignment and ensuring stable mounting for mixed equipment. This directly translates to reduced commissioning time and fewer field adjustments, which is especially valuable in high-mix, low-volume production environments. The system supports a high load capacity up to 15,000 N, enabling secure support for heavy servers, power distribution units, and dense rack configurations in data centers and industrial control rooms. Manufactured from sheet steel with a spray-finished surface in RAL 9005, it delivers corrosion resistance and a durable, uniform appearance suitable for harsh factory floors and long service life. Each pack includes depth stays, assembly parts, and four support strips (two top, two bottom), reducing BOM complexity and accelerating on-site assembly. Designed for VX IT enclosures wider than 600 mm and depth of 1,000 mm, installation is streamlined but may require an additional VX IT support rail for very large enclosures, minimizing deflection and misalignment. Pack weight is 9.1 kg with four packs per carton, aligning with sustainability targets through efficient logistics and a cradle-to-gate PCF of 34.7 kg CO2 eq per pack (Category B).
Get a Quick Quote for a Rittal 5302111
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302111?
Enquire Now
FAQs
Follow the VX IT compatibility guidelines: ensure enclosure width is greater than 600 mm and depth is 1,000 mm. The kit includes depth stays, assembly parts, and four support strips; use standard VX IT mounting rails and fasteners to attach the angles. If the enclosure exceeds 1,000 mm in depth or 600 mm in width, plan for an additional VX IT support rail to maintain rigidity and alignment.
The VX_IT 5302.111 mounting angles offer a high load capacity up to 15,000 N, enabling secure support for heavy equipment in industrial environments and data centers.
Yes. The design specifically accommodates 19-inch mounting angles (VX IT 482.6 mm) for VX IT enclosures, providing reliable support for 19-inch rack-mounted components.
The provided data sheet does not specify CE, IP, or SIL certifications. Verify regulatory compliance with your regional standards and internal quality requirements before deployment.
Each pack weighs 9.1 kg and contains four pieces, with a cradle-to-gate PCF of 34.7 kg CO2 eq per pack (Category B). The parts are sheet steel with a spray-finished RAL 9005 coating, supporting durable, long-life installations and predictable maintenance costs.
