Rittal VX_IT 5302.112 L-shaped mounting angles - 15000 N
Part Number: 5302120
Quick Summary
Rittal VX_IT 5302.112 L-shaped mounting angles enable robust 19" server mounting in VX IT enclosures. Engineers often struggle with misalignment, heavy load stresses, and retrofit constraints when adding mounting hardware to large enclosures. The product is documented under ETIM 9 EC002620, ECLASS 8.0 27189261, and PCF Category B, with no CE, SIL, or IP ratings specified in the provided data. This combination supports reliable, scalable installations and accurate component classification. By enabling secure attachment of 482.6 mm mounting angles, it speeds assembly, reduces downtime, and improves long-term equipment uptime, with practical value for data centers and industrial automation setups. The solution also complements other VX IT accessories, enhancing compatibility and installation efficiency across rugged environments.
Product Information
Extended Description

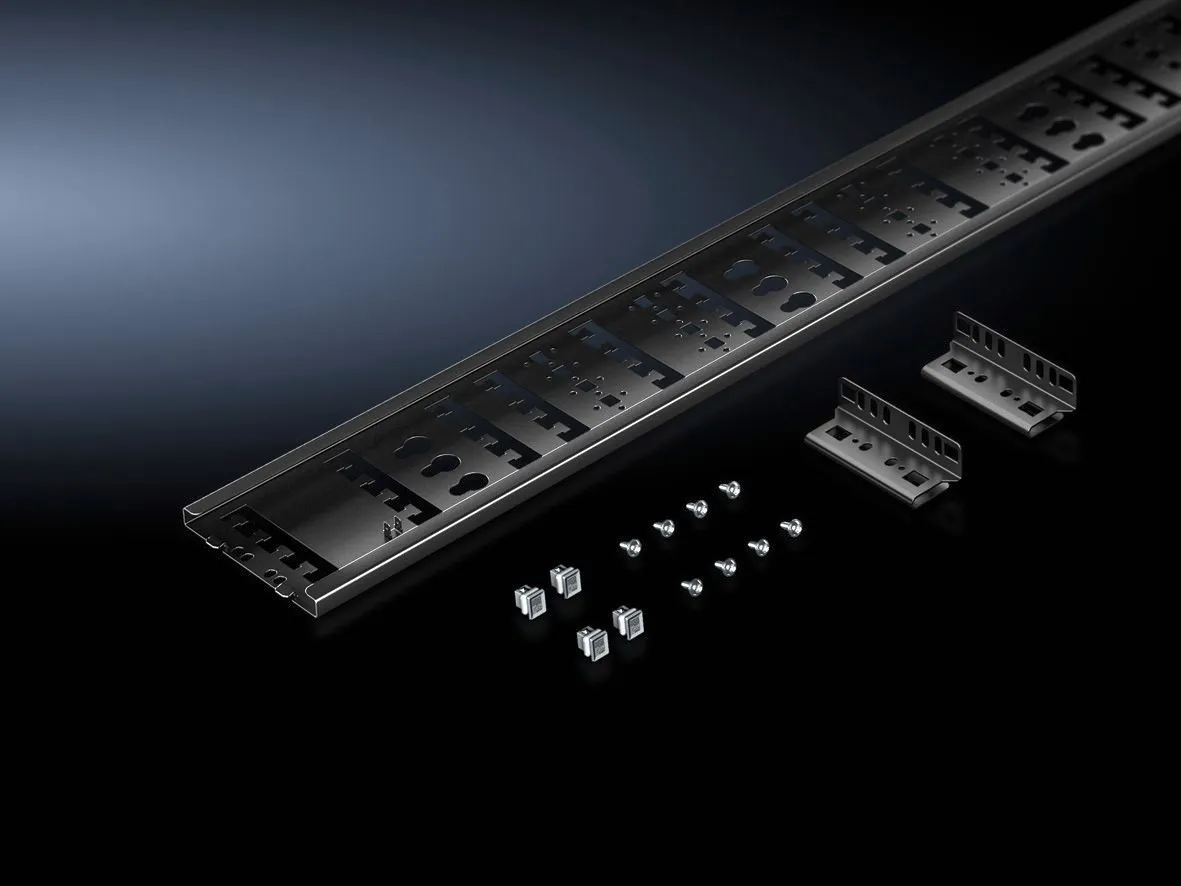

5302120 Rittal: Cable route, for VX, VX IT, for vertical cable routing and strain relief, for network and server applications, integrated multifunction punchings for fastening
Article number
VX 5302.120
Benefits
Simple assembly with tool-free quick-release fastening
Applications
For vertical cable routing and strain relief with network and server applications
Material
Sheet steel
Surface finish
Spray-finished
Colour
RALÂ 9005
Supply includes
Assembly parts
Installation options
On the VX IT frame between the roof and base frames, all-round
Assembly instruction
For mounting across the entire enclosure depth on the frame structure with a quick-release fastener. When mounted in 800 mm wide enclosures, additional screw fastening to the depth-stays of the 482.6 mm (19") configuration is supported
Dimensions
Width:Â 145 mm
To fit
Enclosure type:Â VX | VX IT | Height:Â = 2,000 mm
Packs of
1 pc(s).
Weight/pack
4.75 kg
PCF per pack (cradle-to-gate)
18.1Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952713
ETIM 9
EC000047
ECLASS 8.0
27400703
Product description
Cable route, for VX, VX IT, for vertical cable routing and strain relief, for network and server applications, integrated multifunction punchings for fastening
Feature: Designed for VX IT 482.6 mm (19") mounting angles, standard. Business impact: Ensures precise alignment and predictable load paths, minimizing rework during enclosure integration. Application: Ideal for VX IT enclosures requiring reliable 19" rail compatibility in data centers and industrial controls. Feature: Depth stays to accommodate 482.6 mm mounting angles. Business impact: Maintains clear cable routing and space for accessories, reducing installation time and risk of pinching wires. Application: Supports scalable configurations in deep VX IT cabinets used for modular server and switch installations. Feature: Sheet steel, spray-finished in RAL 9005. Business impact: Delivers durable, corrosion-resistant surfaces suitable for harsh environments with consistent aesthetics. Application: Great for outdoor or factory floor installations where visibility and longevity matter. Feature: High load capacity up to 15,000 N. Business impact: Enables secure mounting of heavy equipment and long-life reliability, lowering downtime due to mounting failures. Application: Critical for high-density server racks and power distribution assemblies in automation zones. Feature: Pack contents and assembly guidance. Business impact: Simplifies procurement and installation with a complete kit (depth stays, assembly parts, 4 support strips) and explicit rails guidance; reduces project lead times. Application: Streamlines integration for VX IT installations wider than 600 mm or deeper than 1,000 mm, common in scalable control panels. Feature: Sustainability and classifications. Business impact: PCF 41 kg CO2 eq per pack (Cat B) supports green procurement and responsible design influences. Application: Assists with lifecycle assessments and supplier compliance in manufacturing plants.
