Rittal 5302152 Mounting Angles - VX IT 38U 482.6 mm (19\") mounting level
Part Number: 5302152
Quick Summary
Rittal 5302152 Mounting Angles is a dynamic front-mounted support designed to build a 482.6 mm (19\") mounting level within the VX IT rack system. Engineers often face alignment challenges when installing server kits in 38U VX IT enclosures, which can lead to delays and rework. This product aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261 classifications, and supports lifecycle transparency with PCF category B where applicable. By delivering a robust, primed 2.5 mm sheet steel part in RAL 9005, with front-mount access and included assembly parts, it accelerates installation while preserving rigidity and serviceability. Ideal for data centers and industrial IT environments prioritizing reliability, standardization, and efficient procurement.
Product Information
Extended Description

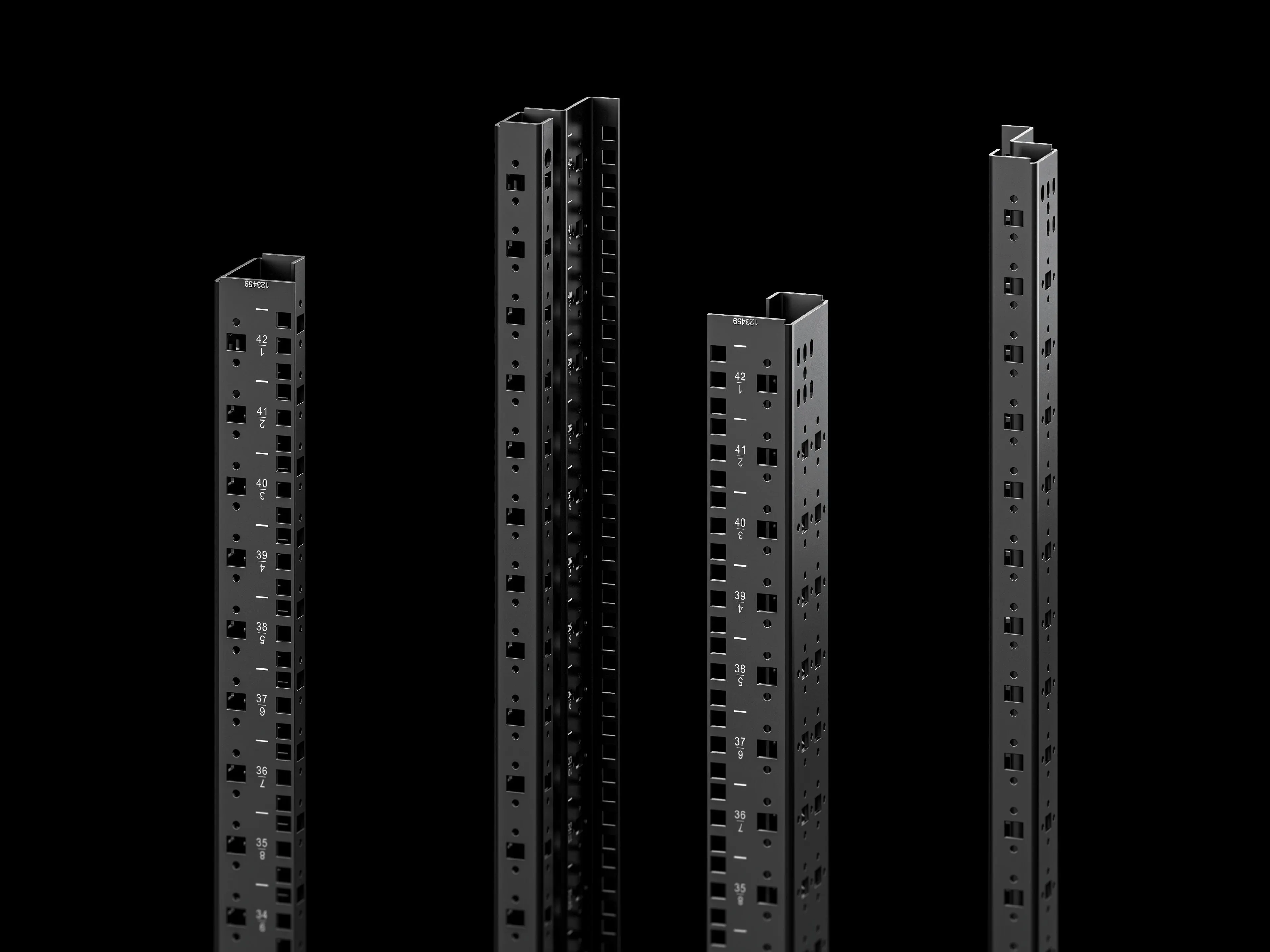

5302152 Rittal: Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2.5 mm, primed, RAL 9005
Article number
VX_IT 5302.152
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design can directly accommodate all commercially available mounting kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2.5 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 38 U
Packs of
2 pc(s).
Weight/pack
10.88 kg
PCF per pack (cradle-to-gate)
41.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955530
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2.5 mm, primed, RAL 9005
Feature → The mounting level is compatible with 482.6 mm (19\") mounting kits, enabling a precise, repeatable installation. Business Impact → Reduces alignment errors and rework, speeding deployment and lowering labor costs. Application → Fits VX IT systems to support server rack kits with minimal adjustment. Feature → L-shaped front-mount design provides direct access to the mounting area, simplifying cabling and cross-member integration. Business Impact → Improves commissioning speed and reduces downtime during upgrades. Application → Works with cross-members, depth stays or mounting brackets for secure attachment. Feature → 2.5 mm sheet steel with primed finish and RAL 9005 color provides rugged durability and uniform appearance. Business Impact → Enhances enclosure longevity and meets visual/maintenance standards in data centers. Application → Suitable for demanding environments requiring robust hardware. Feature → Packs of two with assembly parts included streamline procurement and reduce SKU complexity. Business Impact → Lower total cost of ownership and simpler stocking for IT and facilities teams. Application → Ideal for multi-rack deployments where consistent hardware is needed. Feature → Installation options accommodate 21\"–24\" variant widths, depending on mounting and rack dimensions. Business Impact → Allows flexible rack configurations and future-proofing for kit changes. Application → Supports VX IT variants across different data-center layouts. Feature → ETIM 9 and ECLASS 8.0 classifications, plus PCF category B sustainability context, assist with data-driven purchasing and lifecycle assessment. Business Impact → Improves supplier data quality and environmental accounting. Application → Integrates easily with ERP and procurement workflows while supporting green initiatives.
Get a Quick Quote for a Rittal 5302152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302152?
Enquire Now
FAQs
Yes. The VX_IT 5302.152 mounting angles are designed to retrofit and support a 482.6 mm (19") mounting level inside the VX IT rack system for 38U enclosures. They are front-mounted and come with assembly parts to attach standard 19" server kits directly to the system punchings, simplifying site installation and upgrade projects.
The angles are an L-shaped, front-mount solution engineered to accommodate 482.6 mm (19") mounting levels, enabling precise alignment and reliable support for server kits. The 2.5 mm sheet steel construction with primed finish ensures rigidity, while the included mounting parts streamline the attachment process and reduce field adjustments.
Yes. The product aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, which standardize product data for ERP and procurement systems. This improves data consistency across catalogs, BOMs, and catalogs, reducing errors in purchasing and asset management.
Installation options include alternative widths from 21" to 24", depending on the mounting variant and rack dimensions selected. This flexibility supports multiple VX IT configurations, enabling you to adapt to varying rack footprints while maintaining a consistent mounting level.
Each pack weighs 10.88 kg with two assemblies per pack, and the PCF is 41.5 kg CO2 eq (Cat B). This data supports lifecycle assessment and sustainability reporting while informing transport and handling planning for rack deployments.
