Rittal VX_IT 5302.153 Mounting Angles - EC002620
Part Number: 5302153
Quick Summary
Rittal VX_IT mounting angles enable a precise 19" mounting level within VX IT enclosures. This helps technicians avoid misalignment and kit incompatibilities when deploying server hardware in tight rack spaces. The design aligns with industry data standards ETIM EC002620 and ECLASS 27189261, and the cradle-to-gate PCF footprint is categorized as Cat B, supporting transparent sustainability. Engineered for rear mounting in VX IT racks, these angles offer reliable, repeatable installation while reducing time-to-value and improving overall rack system reliability for IT and facilities teams.
Product Information
Extended Description

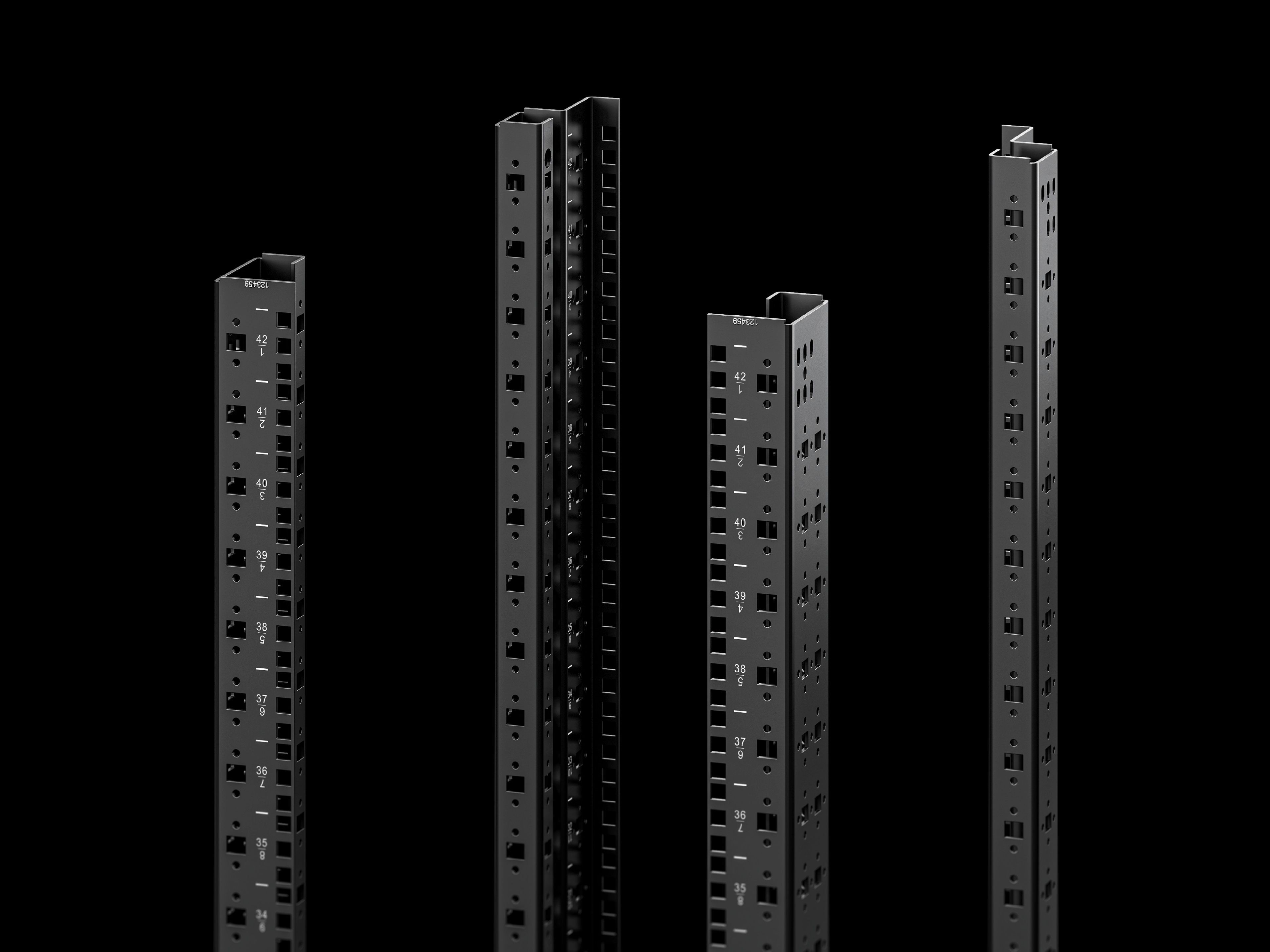

5302153 Rittal: Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2.5 mm, primed, RAL 9005
Article number
VX_IT 5302.153
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design can directly accommodate all commercially available mounting kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2.5 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 38 U
Packs of
2 pc(s).
Weight/pack
12.32 kg
PCF per pack (cradle-to-gate)
46.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955547
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 38 U, sheet steel, 2.5 mm, primed, RAL 9005
Feature: L-shaped dynamic mounting angles designed for 482.6 mm (19") mounting levels in the VX IT housing system. Business Impact: Enables direct attachment of commonly used server kits to the 482.6 mm mounting punchings, reducing additional hardware and installation steps. Application: Ideal for constructing a 19" mounting level within VX IT racks and for 38U enclosure configurations. Feature: Robust sheet steel construction at 2.5 mm with primed finish in RAL 9005. Business Impact: Delivers rigidity and corrosion resistance under dense equipment loads, boosting long-term reliability and reducing maintenance costs. Application: Suitable for high-density data-center environments and heavy server deployments. Feature: Side punchings (round and square) on a U pitch pattern. Business Impact: Supports flexible mounting kit compatibility, enabling quick swaps of cross-members, depth stays, or mounting brackets without rework. Application: Compatible with a wide range of 19" server systems and accessory kits. Feature: Packaging and sustainability data: Packs of 2, weight per pack 12.32 kg, PCF 46.9 kg CO2 eq (Cat B). Business Impact: Improves shipping efficiency and sustainability tracking, aiding lifecycle cost analyses and supplier compliance. Application: Useful for procurement planning and environmental reporting. Feature: Installation options 21"–24" widths and rear mounting position with included assembly parts. Business Impact: Provides adaptability to varying rack dimensions and simplifies on-site assembly, reducing project risk. Application: Fits diverse VX IT rack layouts and minimizes integration friction. Feature: Standards and compatibility: ETIM 9 EC002620 and ECLASS 8.0 27189261. Business Impact: Ensures data-standard compatibility for procurement systems and cross-manufacturer interoperability. Application: Streamlines purchasing workflows and BOM integration across facilities and IT teams.
Get a Quick Quote for a Rittal 5302153
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302153?
Enquire Now
FAQs
VX_IT 5302.153 provides dynamic, rear-mounted mounting angles designed for 482.6 mm (19") mounting levels within the VX IT housing system, supporting full 19" server-kit integration and partial installations. The U-pitch pattern and included assembly parts allow flexible adaptation to various rack dims, including 21" to 24" footprint options, reducing the need for custom brackets.
A standard 482.6 mm (19") mounting level simplifies the alignment of server kits and cross-members, minimizing installation errors and time. It enables direct mounting of commercially available server systems, improves cable management consistency, and supports scalable rack layouts for growing data-center needs.
Yes. The L-shaped mounting angles are designed to accommodate all commercially available 19" server kits by attaching directly to the VX IT system punchings. Compatibility is reinforced by the standard ETIM EC002620 and ECLASS 27189261 data points, ensuring consistent procurement and interoperability across vendors.
VX_IT 5302.153 aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, ensuring consistent data formatting for product information, BOMs, and purchasing workflows. This standardization supports accurate cataloging, supplier comparisons, and streamlined ERP integration for IT and facilities teams.
Each pack weighs 12.32 kg and includes two mounting angles with assembly parts. The 2.5 mm primed sheet steel construction offers robust support for 38 U enclosures. Installation options cover 21"–24" widths, enabling reliable rear-mounting configurations while keeping on-site handling straightforward and cost-effective.
