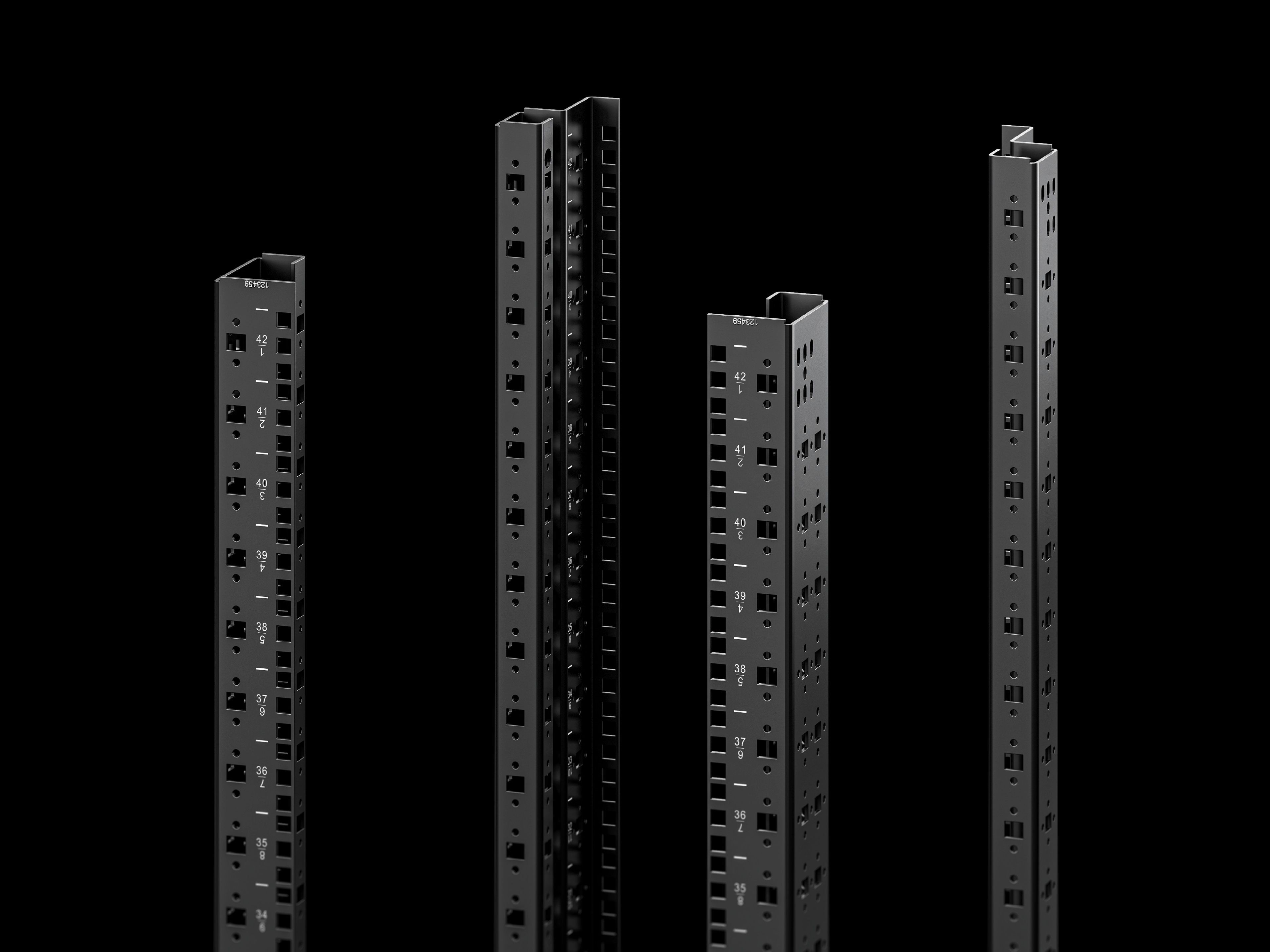

Rittal VX_IT 5302.154 Mounting Angles - 42U
Part Number: 5302154
Quick Summary
Rittal VX_IT 5302.154 mounting angles create a precise 19-inch mounting level for VX IT enclosures. Engineers often struggle with aligning server kits and keeping rails stable during installs. While the data sheet does not list SIL, IP ratings or explicit CE marks, the component is designed for CE-conformant VX IT rack systems and standard 19" server integrations. This solution also supports flexible installation options and front-mount access, delivering faster deployments and reliable rack integration for data centers and IT rooms. Secondary considerations such as installation speed, compatibility with 21"–24" widths, and environmental/Logistics impact help procurement teams optimize total cost of ownership and footprint efficiency.
Product Information
Extended Description
5302154 Rittal: Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2.5 mm, primed, RAL 9005
Article number
VX_IT 5302.154
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design can directly accommodate all commercially available mounting kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2.5 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
front
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 42 U
Packs of
2 pc(s).
Weight/pack
12.04 kg
PCF per pack (cradle-to-gate)
45.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955554
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2.5 mm, primed, RAL 9005
Feature: Precisely sized 482.6 mm (19") mounting level for VX IT systems. Business Impact: Enables repeatable, accurate rack installations, reducing misalignment of server kits and time spent leveling rails. Application: Ideal for VX IT enclosure lines in data centers requiring consistent 19" mounting platforms. This reduces field corrective work and improves deployment timelines. Long-tail keywords: 19 inch server mounting, VX IT mounting level, rack alignment solution. Feature: L-shaped mounting angles with front mounting position. Business Impact: Simplifies access and attachment of cross-members and mounting brackets, enabling front-side servicing and quicker cable management. Application: Front-access VX IT installations where minimize rear clearance is critical. Long-tail keywords: front mounting rack components, 19" mounting kit compatibility, server rack assembly. Feature: Material and finish (sheet steel, 2.5 mm, primed, RAL 9005). Business Impact: Delivers durable, corrosion-resistant hardware suitable for harsh data-center environments, extending component life and reducing replacement cycles. Application: Indoor data centers and IT closets with moderate to high usage. Long-tail keywords: 2.5 mm steel rack angles, primed rack hardware, RAL 9005 enclosure hardware. Feature: Pack configuration and weights (2 pcs per pack, weight 12.04 kg, PCF 45.9 kg CO2 eq per pack). Business Impact: Predictable logistics and environmental footprint inform procurement and sustainability reporting; supports cost planning and lifecycle assessment. Application: Multi-pack orders for scalable deployments; sustainability-focused purchasing. Long-tail keywords: rack hardware weight, CO2 footprint PCF, two-pack mounting angles. Feature: Installation options and compatibility (21"–24" widths, for 42U height). Business Impact: Provides flexibility to accommodate different rack variants and kit configurations without special orders. Application: Mixed-rack environments where multiple widths are deployed; reduces SKU proliferation. Long-tail keywords: rack width options 21 to 24, VX IT compatibility, 42U mounting height. Feature: Supply includes assembly parts and documented guidance. Business Impact: Streamlines procurement and onboarding, enabling faster and error-free installations with ready-to-use components. Application: Enginemers and technicians installing VX IT server environments. Long-tail keywords: mounting hardware kit, assembly parts included, VX IT installation guide.
Get a Quick Quote for a Rittal 5302154
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302154?
Enquire Now
FAQs
Installers begin by aligning the 482.6 mm (19") mounting level to the VX IT mounting punches, then attach the L-shaped angles to the rack structure using the supplied assembly parts. Ensure front mounting position is maintained and connect compatible 19" server kits directly to the system punchings for reliable, lockable mounting. The included documentation provides step-by-step guidance for typical VX IT configurations.
Yes. The product supports alternative installation widths from 21" to 24" depending on the mounting variant and rack dimensions selected, enabling flexible integration across varied VX IT rack configurations. Confirm your exact rack width and height (42U) before assembly to ensure a snug, compliant fit.
Each pack contains 2 mounting angles with a total weight of 12.04 kg per pack. This information helps optimize shipping, handling, and on-site installation planning, particularly when ordering multiples for larger data-center deployments and staggered rollouts.
Each pack has a PCF (cradle-to-gate) value of 45.9 kg CO2 equivalent (Category B). This metric supports lifecycle assessments and supplier sustainability reporting, allowing teams to account for environmental impact during procurement and overall data-center footprint calculations.
Documentation is available via downloadable PDFs and info sheets. Look for the View PDF and 5302154 Info Sheet (DE/EN) assets to access installation instructions, mounting guidance, and cross-reference data for 482.6 mm (19") mounting levels within the VX IT system.
