Rittal VX IT 5302.155 Mounting Angles - Racks 42U
Part Number: 5302155
Quick Summary
Rittal VX IT 5302.155 mounting angles enable a 482.6 mm (19") mounting level inside VX IT enclosures. Engineers often struggle with installing reliable 19" mounting levels quickly without compromising alignment. The solution aligns with ETIM 9 EC002620 and ECLASS 8.0 27189261, ensuring consistent data and interoperability across sourcing and procurement workflows. With a rear mounting position, primed sheet steel and a 42U capacity, these angles support scalable server deployments while reducing installation time and field adjustments in the VX IT rack system. The combination of standard 482.6 mm punchings and modular assembly parts translates into lower cost of ownership and smoother maintenance cycles for data center equipment.
Product Information
Extended Description

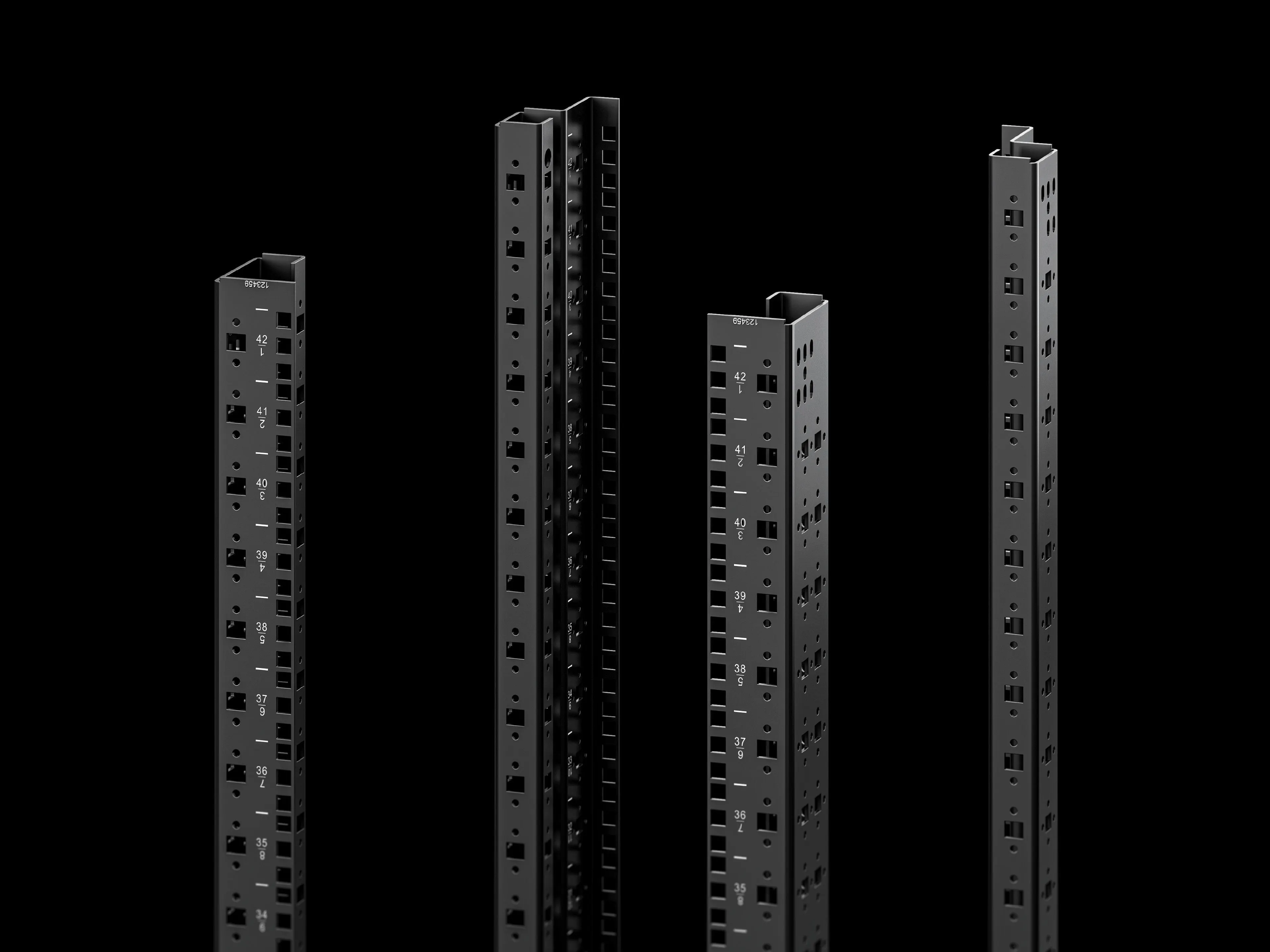

5302155 Rittal: Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2.5 mm, primed, RAL 9005
Article number
VX_IT 5302.155
Product description
Suitable for assembling a 482.6 mm (19") mounting level or for 482.6 mm (19") partial installation. The L-shaped design can directly accommodate all commercially available mounting kits for server systems, which are fastened directly to the 482.6 mm (19") system punchings.
Benefits
Integral, bidirectional U labelling
Technical specifications
Side punchings, round and square, on a U pitch pattern
Applications
For mounting a 482.6 mm (19") mounting level within the VX IT rack system
Material
Sheet steel, 2.5 mm
Surface finish
Primed
Colour
RAL 9005
Supply includes
Assembly parts
Mounting position
rear
Installation options
Alternative installation widths from 21" – 24", depending on the mounting variant and rack dimensions selected
Assembly instruction
To be combined with cross-member, depth stays or mounting bracket for attachment
To fit
Height: = 42 U
Packs of
2 pc(s).
Weight/pack
13.66 kg
PCF per pack (cradle-to-gate)
52 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955561
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Mounting angles dynamic, 482.6 mm (19") for VX IT, to build an inch-based mounting level within the VX IT housing system, for enclosure height 42 U, sheet steel, 2.5 mm, primed, RAL 9005
Feature: 482.6 mm mounting level compatibility enables direct attachment of 19" server kits to the VX IT rack system. Impact: accelerates installation and reduces misalignment risk, improving first-time right deployments. Application: ideal for data centers deploying modular server kits on a 42U VX IT enclosure. Long-tail keywords: 19 inch mounting level, VX IT rack compatibility, server kit mounting inside VX IT. Feature: L-shaped mounting angles directly accommodate all commercially available mounting kits, simplifying assembly. Impact: minimizes customization and speeds up qualification of new hardware. Application: scalable rack builds with repeatable 482.6 mm mounting points. Long-tail keywords: 482.6 mm mounting system, server rack integration, cross-member compatibility. Feature: Sheet steel, 2.5 mm with primed finish and RAL 9005 color provides robust durability in harsh environments. Impact: resist corrosion, extend service life, and reduce repainting costs. Application: suitable for industrial enclosures and OEM data centers. Long-tail keywords: 2.5 mm steel, primed surface, RAL 9005 finish. Feature: Pack of two with assembly parts and a weight of 13.66 kg per pack supports efficient logistics and predictable handling. Impact: lowers freight cost per unit and simplifies inventory planning. Application: procurement and stock management for VX IT components. Long-tail keywords: packs of 2, weight per pack, assembly parts included. Feature: Installation options allow 21"–24" alternative widths depending on mounting variant and rack dimensions. Impact: delivers flexibility for different rack footprints and site constraints. Application: multi-variant deployments across data centers and telecom environments. Long-tail keywords: installation width options, 21-24 inch variants, rack dimension compatibility.
Get a Quick Quote for a Rittal 5302155
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302155?
Enquire Now
FAQs
These mounting angles are designed for rear mounting inside the VX IT enclosure and directly align with 482.6 mm (19") system punchings. They come with assembly parts in packs of two, enabling straightforward attachment to the VX IT rack system and cross-members for a reliable 42U mounting level.
Yes. The L-shaped design accommodates all commercially available 19" mounting kits and can fasten directly to the 482.6 mm system punchings, simplifying integration of standard server equipment within the VX IT rack system.
They are made from sheet steel with a thickness of 2.5 mm, finished primed, and colored RAL 9005. This combination delivers durability in industrial environments while providing a paint-ready surface for customer-specific coating if required.
Installation options support alternative widths from 21" to 24", depending on the mounting variant and rack dimensions. This flexibility helps accommodate various VX IT configurations and site constraints without custom fabrication.
The product is supplied in packs of two with an individual weight of 13.66 kg per pack, facilitating logistics. PCF data indicates a cradle-to-gate impact of 52 kg CO2 eq per pack (Category B), aiding sustainability reporting for procurement and lifecycle assessments.
