Rittal 5302205 Keyboard Drawer - RAL 9005
Part Number: 5302205
Manufacturer
Rittal
Part number
5302205
Category
Alt Part Number
DK 5302.205
Quick Summary
The Keyboard Drawer is a 2U, 19-inch mounting solution that provides ergonomic keyboard access within industrial enclosures. In tight control rooms, limited space and tangled cables can slow operators and increase maintenance risk. This design supports CE compliance expectations and is suitable for integration inside IP-rated enclosures when installed per guidelines; for SIL environments, verify with your safety engineer. By focusing on rugged construction, an integrated folding front, and practical cable entry, it delivers reliable, space-efficient operator interfaces that reduce downtime and support streamlined maintenance in complex automation ecosystems.
Product Information
Extended Description

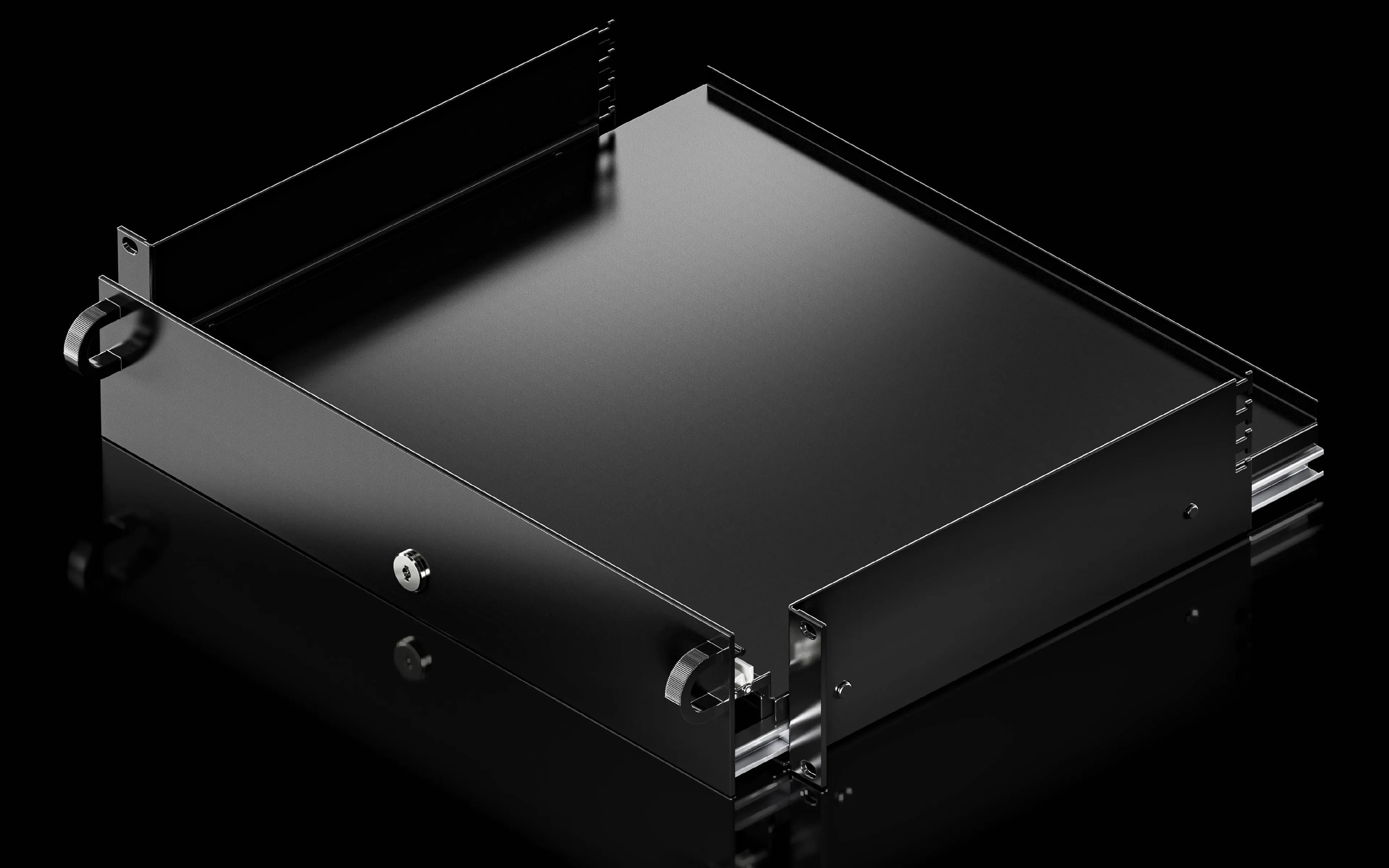

5302205 Rittal: Keyboard drawer, 2 U for one 482.6 mm (19") mounting level, sheet steel, RAL 9005
Article number
DK 5302.205
Product description
For keyboards up to 430 mm wide and 250 mm deep with the front panel folded over.
Material
Sheet steel with aluminium front
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
Lockable drawer with handles | Folding front | Pull-out mousepad | Mouse support | Practical cable entry | Strain relief
Dimensions
Width: 482.6 mm
Max. keyboard dimensions (WxHxD)
430 x 250 mm
Note on Model No.
Installation depth: 390 mm
Packs of
1 pc(s).
Weight/pack
7.04 kg
Customs tariff number
94039910
EAN
4028177955660
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
Keyboard drawer, 2 U for one 482.6 mm (19") mounting level, sheet steel, RAL 9005
Feature: 2U, 482.6 mm wide mounting for one 19" level; Benefit: Maximizes rack space while keeping the keyboard within easy reach, improving operator comfort; Application: 19" control cabinets in automation lines. Feature: Front panel folds over; Benefit: Reduces overall width when closed, protecting the keyboard and reducing cosmetic wear; Application: compact enclosure installations. Feature: Lockable drawer with handles; Benefit: Improves security and reduces accidental access in busy environments; Application: manufacturing floors and data centers. Feature: Pull-out mousepad and integrated mouse support; Benefit: Ergonomic pointing device access reduces wrist strain and speeds task execution; Application: human–machine interfaces in control rooms. Feature: Practical cable entry and strain relief; Benefit: Cleaner cabling, easier serviceability, and compliant cable management within the enclosure; Application: retrofit projects and new builds. Feature: Material and finish—sheet steel with aluminium front, spray-finished in RAL 9005; Benefit: Durable, corrosion-resistant, low-maintenance component suited for harsh industrial environments; Application: rugged, long-life installations in automation installations.
Get a Quick Quote for a Rittal 5302205
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302205?
Enquire Now
FAQs
The DK 5302.205 is designed for one 482.6 mm (19") mounting level at 2U height, with a width of 482.6 mm and a maximum keyboard footprint of 430 × 250 mm, making it suitable for standard 19" enclosures in industrial settings.
Install within a CE-aware enclosure, ensure the 390 mm installation depth is respected, and use the supplied cable entry and strain relief to manage wiring. The foldable front and locked drawer also contribute to protected, ergonomic keyboard access.
The product page supports CE-ready integration and enclosure compatibility; explicit SIL certification is not listed. For SIL environments, coordinate with your safety engineer and ensure the enclosing system meets the required SIL level.
The folding front reduces footprint when closed, while the pull-out mousepad and dedicated mouse support provide comfortable, accessible input without stationary keyboards. This simplifies daily maintenance and accelerates operator tasks in control-room applications.
The package includes a lockable drawer with handles, folding front, pull-out mousepad, mouse support, practical cable entry, and strain relief, ensuring a ready-to-install solution with organized cabling and secure access.
