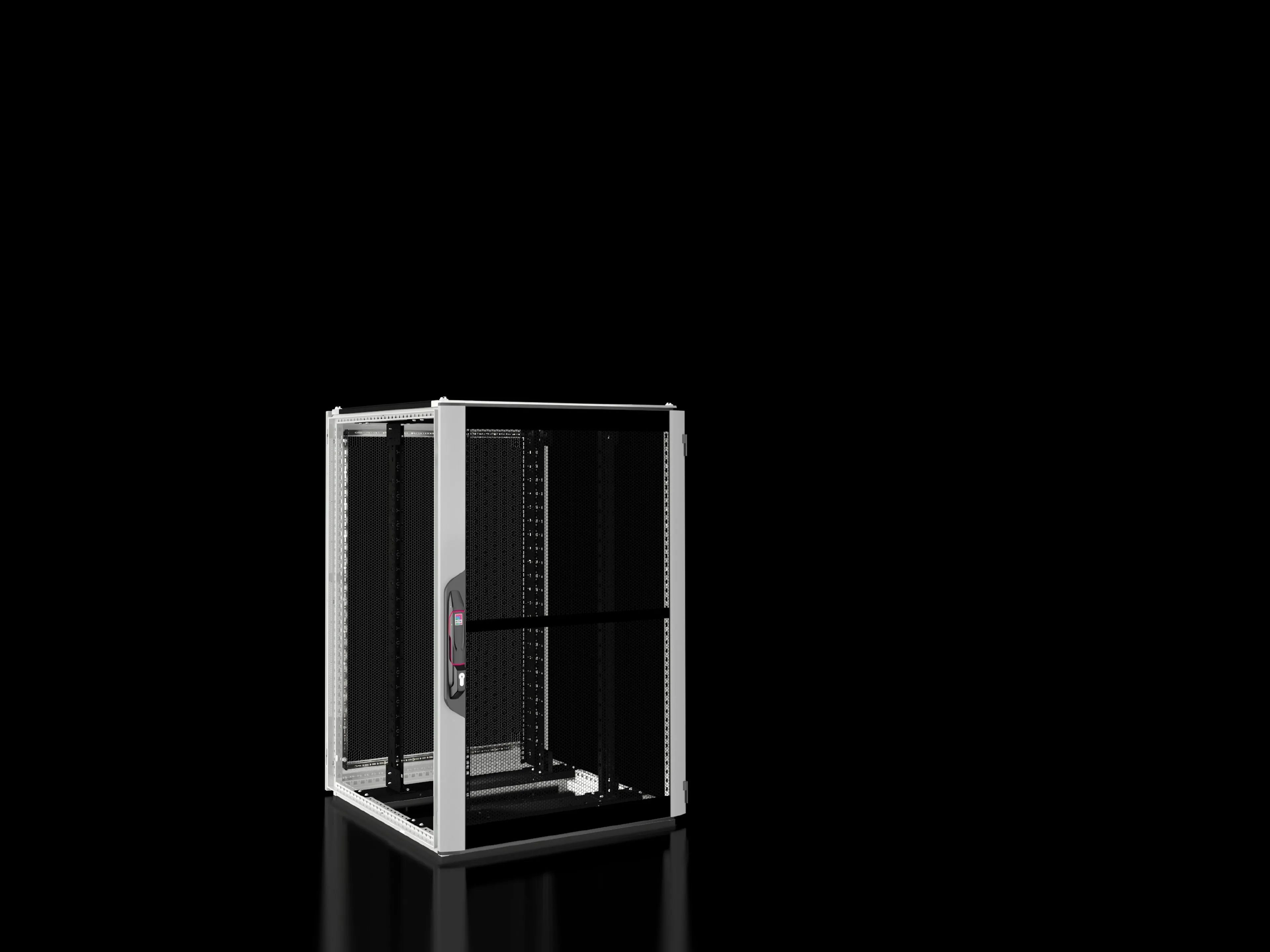

Rittal VX 5303.114 19" IT Enclosure - UL 2416
Part Number: 5303114
Quick Summary
Rittal VX 5303.114 IT enclosure securely houses 19" equipment in climate-controlled rooms. This vented, 24U cabinet helps IT and automation panels stay organized while maintaining optimal airflow. While many enclosures trap heat, the VX IT design supports passive cooling through front and rear venting and standard 19" mounting angles. UL 2416 compliance ensures structural integrity under static loads, with clear ETIM/ECLASS classifications assisting procurement. In practice, this means faster installation, predictable rack density, and dependable service life for data centers, telecom closets, and critical IT environments. The result is reduced downtime and lower total cost of ownership through a robust, configurable cabinet that aligns with standard industry practices and sustainability goals.
Product Information
Extended Description
5303114 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 1200 x 800 mm, 24 U
Article number
VX 5303.114
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel door, vented, one-piece, 130° hinges
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 800 mm
Units
24 U
Units
24 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 520 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
67.5 kg
PCF per pack (cradle-to-gate)
166.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944831
ETIM 8
EC002499
ETIM 7.0
EC011217
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 1200 x 800 mm, 24 U
Feature → Business Impact → Application: 24U capacity in a compact 800x1200x800 mm footprint enables high-density IT gear within a standard 19" rack system; improves space utilization and simplifies procurement of compatible equipment for data centers and server rooms. Feature → Business Impact → Application: Front and rear vented doors with approximately 85% perforation maximize passive cooling and air-flow management; reduces cooling load, lowers energy costs, and keeps sensitive equipment within safe operating temperatures in network closets and control rooms. Feature → Business Impact → Application: 482.6 mm (19") mounting angles front and rear provide straightforward, shared mounting for standard 19" hardware; streamlines installation and future upgrades, ideal for modular IT cabinets in automation panels. Feature → Business Impact → Application: 8,000 N load capacity supports heavy servers, UPS units, and power distribution, increasing rack density without compromising enclosure integrity; essential for high-availability data centers and industrial IT rooms. Feature → Business Impact → Application: Durable materials (sheet steel and aluminium) with multi-layer finishes (dipcoat-primed frame, powder-coated rear/roof, anodised front door) deliver long service life in demanding environments; suitable for manufacturing floors, electrical rooms, and outdoor-rated enclosures adjacent to process lines. Feature → Business Impact → Application: Comprehensive hardware and accessories (mounting angles, spacers, screws, locks, dual doors) reduce onsite assembly time and ensure secure, tamper-resistant installations; ideal for systems integrators deploying scalable IT cabinets across facilities.
Get a Quick Quote for a Rittal 5303114
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5303114?
Enquire Now
FAQs
VX 5303.114 uses standard 482.6 mm (19") mounting angles both at the front and rear, supporting common 19" IT and automation gear. The enclosure accommodates 24U of equipment and includes the required fasteners, spacers, and cross-members, enabling straightforward integration of servers, switches, and panel PCs in data centers and network closets.
The enclosure is vented on the front and rear doors with about 85% perforation, promoting passive airflow. The roof plate is prepared for a fan mounting plate, and spacers are included to raise a cover plate over the fan cut-out, enabling efficient passive cooling or easy retrofit of active cooling if needed.
The cabinet uses sheet steel and aluminium with a Dipcoat-primed frame, interior spray finish, powder-coated rear door and roof, and an anodised/spray-finished front door. It supports up to 8,000 N static load per enclosure, with a total weight of 67.5 kg per pack, making it suitable for high-density rack deployments in industrial settings.
Included are 482.6 mm mounting angles (front and rear), spacers, 12x 482.6 mm fasteners, 25 multi-tooth screws, and locks with a comfort handle. A roof plate prepared for fan mounting is included, along with vented doors. Depending on your site, you may need additional cable entry accessories or fans, but the core mounting hardware is provided.
Yes, the enclosure aligns with UL 2416 for static load performance, supporting reliable, safe operation in critical IT environments. It also provides ETIM 8 EC002499 and ECLASS 8.0 27180207 classifications. The cradle-to-gate PCF is 166.3 kg CO2 eq (Category B), reflecting its manufacturing footprint and sustainability considerations.
