Rittal VX 5303.134 VX IT Enclosure - IP55
Part Number: 5303134
Quick Summary

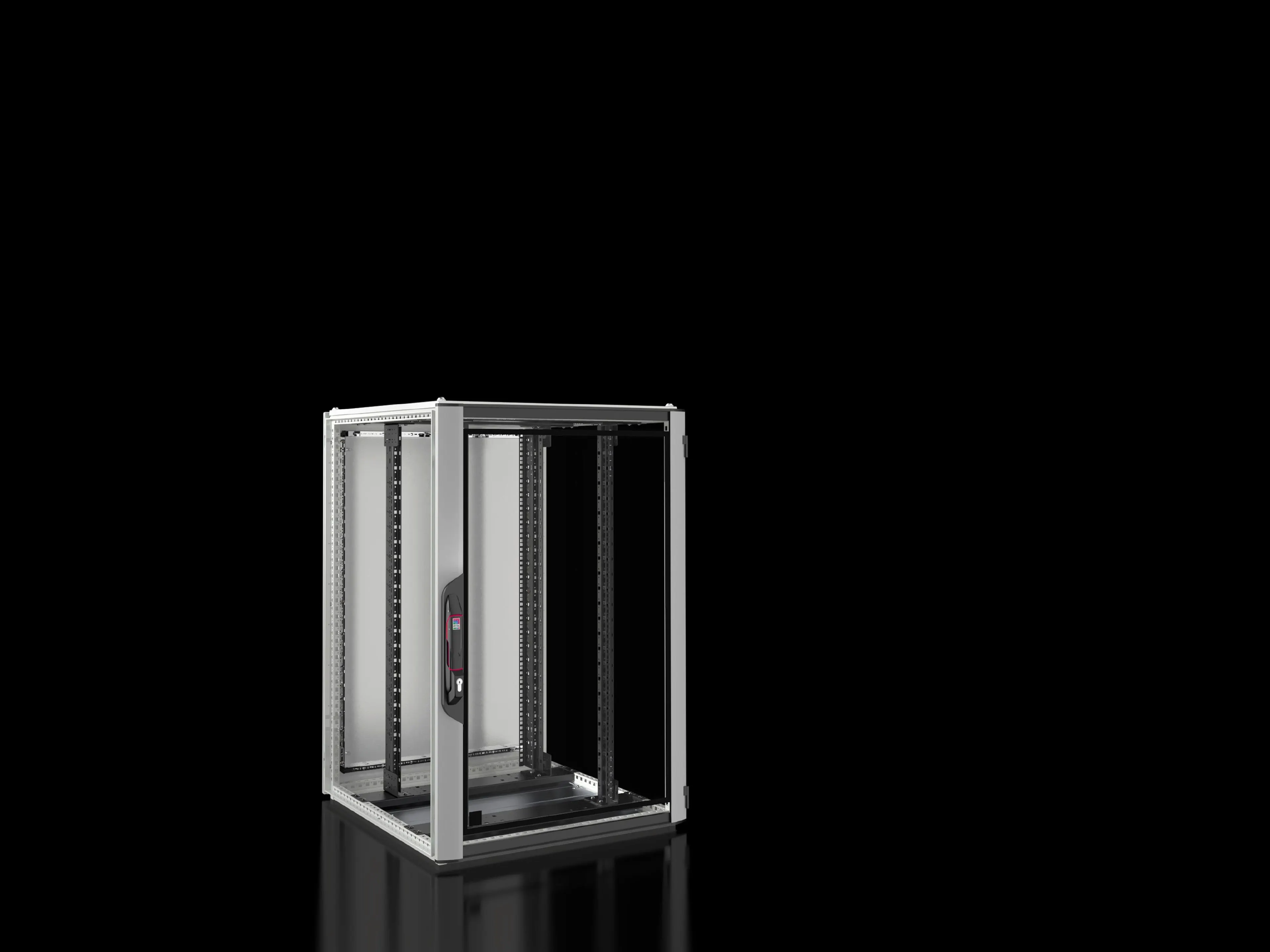

Rittal VX 5303.134 VX IT enclosure provides climate-controlled protection for 19\" IT hardware. Data centers and industrial installations often struggle with heat, dust, and space constraints that threaten uptime. It delivers IP55 protection (with baying seal) and IK08 impact resistance, aligning with UL 2416 compatibility for safe, scalable rack performance. With 24U capacity, front and rear 482.6 mm\" (19\") mounting angles, and a glazed front door, it supports modular IT housing that speeds deployment and simplifies maintenance. This combination translates to improved equipment reliability, lower maintenance costs, and faster project execution for server rooms and control cabinets.
Product Information
Extended Description
5303134 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1200 x 800 mm, 24 HE, IP 55
Article number
VX 5303.134
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 800 mm
Units
24 U
Units
24 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Base tray with gland plate, multi-piece, solid
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
90.8 kg
PCF per pack (cradle-to-gate)
223.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944855
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1200 x 800 mm, 24 HE, IP 55
Feature: 482.6 mm (19") mounting angles, standard in the VX IT enclosure. Business Impact: delivers precise 19\" rack alignment and reduces installation time for rack-mounted IT gear. Application: ideal for data centers and industrial control panels requiring reliable front and rear access. Feature: IP55 protection with baying seal and IK08 impact resistance. Business Impact: protects sensitive equipment from dust and water spray while withstanding impact in rugged environments. Application: suitable for manufacturing floors and harsh data room adjacencies where climate control and ruggedness are mandatory. Feature: 24 U unit capacity and robust load handling (8,000 N). Business Impact: enables high-density equipment layouts with durable performance under static load, reducing footprint expansion needs. Application: scalable IT cabinets for growing network infrastructure and power-intensive server deployments. Feature: front glazed aluminium door and solid rear sheet steel door with large hinge angles. Business Impact: provides easy monitoring and secure access while maintaining enclosure integrity. Application: maintenance and service workflows that require quick visual checks and reliable protection. Feature: comprehensive internal hardware including base tray with gland plate, mounting angles, and sealing kit. Business Impact: simplifies installation, improves enclosure sealing, and speeds commissioning. Application: ready-to-install IT cabinets with streamlined cabling and gland management for clean, compliant enclosures.
Get a Quick Quote for a Rittal 5303134
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5303134?
Enquire Now
FAQs
The enclosure ships with 482.6 mm (19") mounting angles and a base tray with gland plate. Align the rails to the front and rear mounting levels, secure the cross-members, and attach the 482.6 mm rails at the top and bottom. Use the included fasteners and gland hardware to complete the 19" rack installation with proper baying seals for IP55 readiness.
This VX IT enclosure offers IP55 protection (with baying seal required for IP55 operation), protecting against dust ingress and water splashes from varied directions. The IK08 rating also provides robust impact resistance, making it suitable for challenging environments such as manufacturing floors and industrial control rooms.
Yes, the VX 5303.134 supports UL 2416 in its static load design. It provides 24 U of internal rack space with a maximum static load of 8,000 N, enabling stable support for power-dense IT equipment while maintaining enclosure integrity.
The package includes the enclosure frame with front and rear doors, roof plate, base tray with gland plate, baying seal and sealing kit, 12 x 19" mounting fasteners, 25 conductive screws, and standard mounting angles for 19" installations. A glazed front door and a solid rear door provide convenient service access and secure enclosure protection.
Ideal for data centers, industrial automation cabinets, and control rooms, the VX IT enclosure provides climate-controlled housing for 19" IT hardware, front/rear access for servicing, and robust protection against dust and moisture. Its modular design supports scalable network and server deployments with reliable rack performance.
