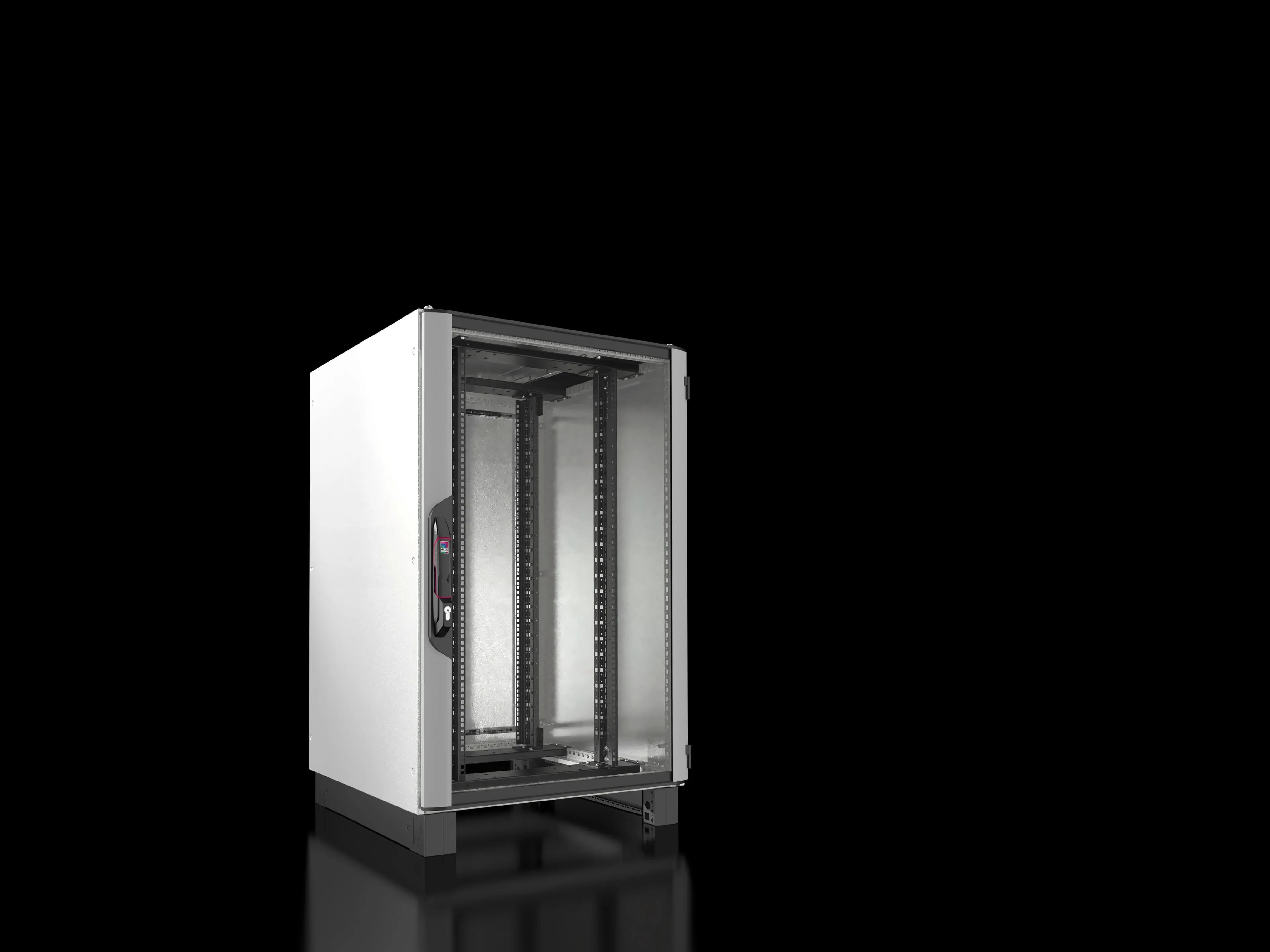

Rittal VX 5303.154 VX IT Enclosure - IK08
Part Number: 5303154
Quick Summary
Rittal VX 5303.154 VX IT enclosure is a pre-configured 19" IT cabinet designed for direct climate control in industrial networks. When integrating IT and automation gear on the shop floor, engineers often face lengthy wiring, delayed component availability, and misaligned mounting layouts. This VX IT model addresses those challenges by arriving pre-assembled with a complete equipment package and ready-to-install mounting rails. It offers CE compliance, IK08 impact resistance, and UL 2416 context for robust, industrial usage. With front and rear access, a glazed front door, and a compact WHD of 800 x 1300 x 800 mm delivering 24U of rack space, it also supports standard 19" components. The kit simplifies procurement and accelerates installation, reducing on-site engineering time and boosting system reliability.
Product Information
Extended Description
5303154 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1300 x 800 mm, 24 U, pre-configured
Article number
VX 5303.154
Material
Sheet steel | Aluminium | Plastic | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, base/plinth: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Side panels, one-piece, for screw fastening | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Base module mounted at front as infill panel | Base/plinth system VX, 100 mm, vented | Base/plinth corner pieces and trim panels, sides, screw-fastened | Base/plinth trim panels, front and rear plus corner and baying covers supplied loose | 4 levelling feet, M12, including base/plinth adaptor (supplied loose) | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | 4 combination rails for inner and outer mounting level, to fit rack depth (supplied loose) | 10 cable shunting rings, metal, 125 x 65 mm (supplied loose) | IPPC pallet | Base module mounted at front as infill panel, depth 175 mm | Sheet steel rear door, solid, one-piece, 130° hinges
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 800 mm
Units
24 U
Units
24 U
Height including base/plinth
1,300 mm
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Pre-configured
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Base module mounted at front as infill panel
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
119 kg
PCF per pack (cradle-to-gate)
293.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944862
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1300 x 800 mm, 24 U, pre-configured
Feature: Pre-configured VX IT enclosure with 19" mounting rails and comprehensive equipment kit. Benefit: Cuts on-site assembly time and ensures component compatibility, delivering faster project delivery and lower engineering risk. Application: Industrial data racks and factory IT cabinets where quick deployment is essential. Feature: Front and rear 482.6 mm (19") mounting angles. Benefit: Flexible, symmetric access for maintenance and reconfiguration, reducing downtime during upgrades. Application: Network cabinets in machine halls and automation cells. Feature: Glazed front door with 180° hinges and solid rear door. Benefit: Improved visibility for diagnostics while maintaining secure enclosure access and safety. Application: Visual monitoring in control rooms and maintenance bays. Feature: Base plinth system VX with 100 mm vented base and integrated side panels. Benefit: Enhanced passive cooling and cable management, lowering operating temperatures and simplifying cabling layouts. Application: High-density IT/industrial gear where airflow is critical. Feature: 24U interior space (WHD 800 x H 1200 x D 800 mm). Benefit: Sufficient capacity for standard IT and automation equipment without overloading the enclosure footprint. Application: Mid-sized automation cabinets and IT server nodes. Feature: Robust load capacity up to 8000 N and IK08 protection. Benefit: Reliable mechanical integrity for heavy hardware and harsh environments, reducing risk of door deformation and panel damage. Application: Rugged factory floors and data centers with vibration and impact exposure.
Get a Quick Quote for a Rittal 5303154
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5303154?
Enquire Now
FAQs
The VX IT enclosure supports 482.6 mm (19") mounting angles mounted at both front and rear, with a front glazed door and rear solid panel. It includes a base plinth system and side panels, plus a roof plate prepared for fan mounting. The design enables flexible rack mounting, simple upgrades, and straightforward retrofit in existing 19" systems.
Key specs include a width of 800 mm, height of 1,200 mm, depth of 800 mm (WHD 800 x 1300 x 800 mm), 24U of rack space, weight around 119 kg per pack, and a static load capacity up to 8,000 N. Materials include sheet steel with aluminium and glass components; IK08 impact protection and CE compliance are provided.
Yes, the VX IT enclosure is CE compliant, designed for industrial use, and offers IK08 impact protection. It aligns with UL 2416 references for enclosure integrity and safety considerations, supporting reliable operation in demanding environments and simplifying regulatory alignment for European and North American deployments.
This enclosure is ideal for industrial IT rooms, machine-level networks, and automation cabinets where climate control, robust protection, and quick deployment matter. Its pre-configured setup, glazed front door, and 24U capacity support diverse IT and automation components while maintaining compact space efficiency on factory floors.
A pre-configured VX IT enclosure reduces on-site assembly, sourcing, and configuration time, translating to faster project completion and lower labor costs. The durable IK08 construction and robust mounting options also minimize maintenance interventions, contributing to higher uptime and a lower total cost of ownership over the cabinet’s lifecycle.
