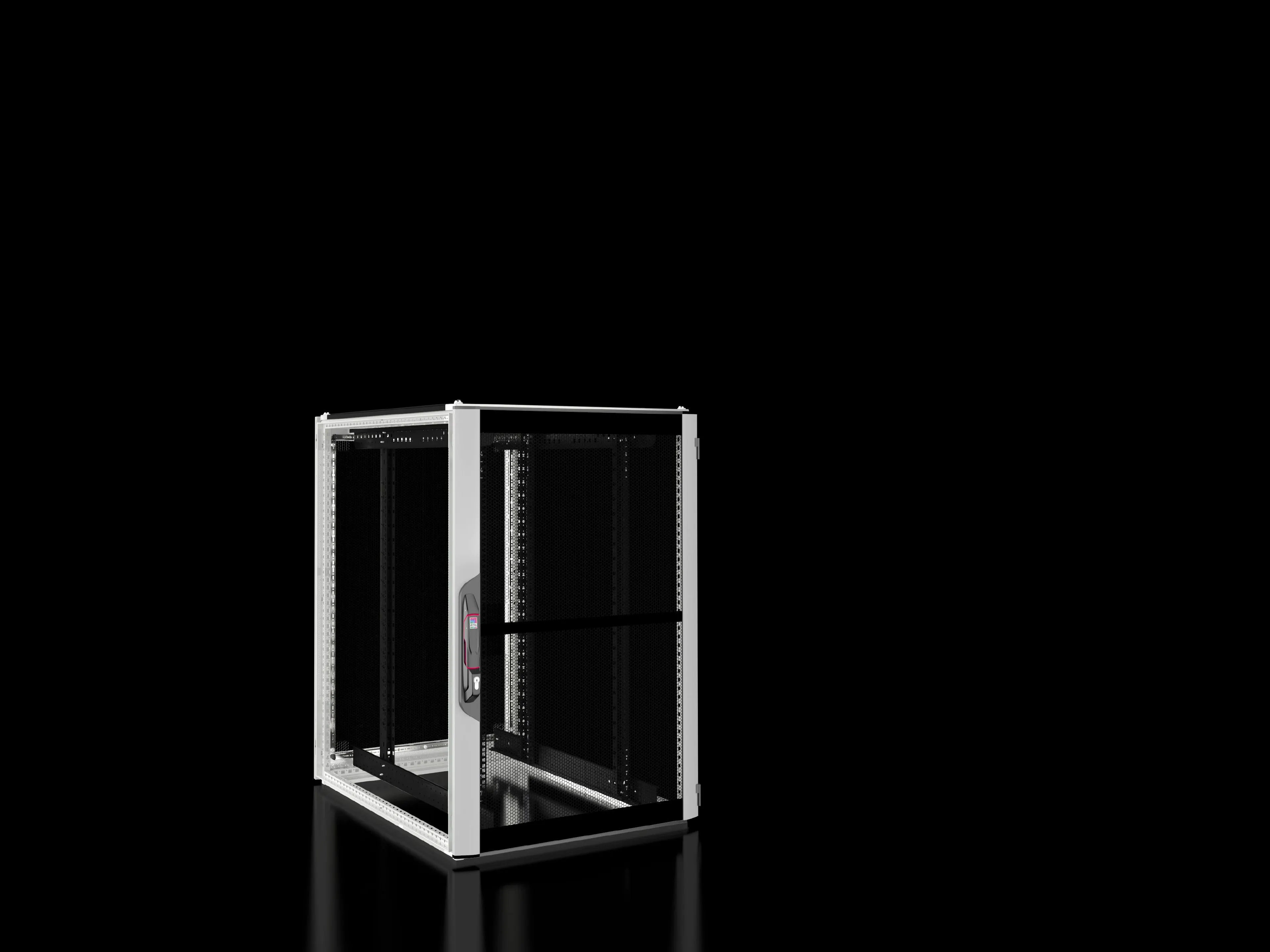

Rittal VX 5304.116 Enclosure - 19" IT, Vented, 24U
Part Number: 5304116
Quick Summary
Rittal VX IT enclosure is a vented 19-inch network/server cabinet designed for data centers and industrial IT spaces. Engineers often struggle with passive cooling, cable routing, and restricted access in busy plant rooms. This model combines a 24U capacity, front and rear vented doors, and 482.6 mm (19") mounting angles, with UL 2416 load compliance and CE‑compliant design for global deployments. Built to endure demanding environments, it features a robust sheet-steel frame with aluminum front door and durable coatings, supporting scalable IT infrastructure in manufacturing, process control, and data centers. Its installation-ready kit, including spacers and fasteners, reduces time-to-value for projects.
Product Information
Extended Description
5304116 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 1200 x 1000 mm, 24 U
Article number
VX 5304.116
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel door, vented, one-piece, 130° hinges
Dimensions
Width: 800 mm | Height: 1,200 mm | Depth: 1,000 mm
Units
24 U
Units
24 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 720 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
73.2 kg
PCF per pack (cradle-to-gate)
180.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944886
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 1200 x 1000 mm, 24 U
The VX IT enclosure uses standard 482.6 mm (19") mounting angles, mounted at both front and rear, enabling rapid integration of a wide range of 19" equipment and simplifying cable management for clean, organized layouts. This directly reduces installation time and risk of misalignment, while supporting scalable configurations for future upgrades. In practice, the result is predictable airflow paths and easier maintenance in busy control rooms and data centers. The vented front door and roof surface promote passive cooling, lowering energy consumption and extending component life in hot environments, with airflow optimization for dense IT loads. This is especially valuable in manufacturing environments where equipment heat output fluctuates and space is at a premium.
Get a Quick Quote for a Rittal 5304116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5304116?
Enquire Now
FAQs
The enclosure supports standard 19" equipment using 482.6 mm rails mounted at both front and rear. With 24U of usable space and a depth of 1000 mm, it accommodates servers, switches, and storage devices, enabling consolidated data center or industrial IT racks with consistent alignment and cable management.
It features vented front and rear surfaces and a roof designed for passive cooling, facilitating natural airflow around mounted equipment. This reduces reliance on active cooling, lowers energy use, and helps protect sensitive components from heat-induced degradation in manufacturing plants and data centers.
Yes. With 24U capacity, 800 mm width, 1200 mm height, and 1000 mm depth, the cabinet fits a broad range of IT and automation components. Front/rear access, robust construction, and standardized mounting angles make it a versatile choice for both data centers and industrial control rooms.
The VX IT enclosure aligns with UL 2416 load considerations and is CE-compliant for global deployments. Its durable coatings and modular design meet industry expectations for safety and reliability in mixed IT/industrial environments.
The package includes mounting angles, spacers, and fasteners for a ready-to-install solution, minimizing setup time. With a high static load rating and scalable 24U space, it lowers total cost of ownership by reducing retrofit needs and enabling orderly expansion as your IT/automation needs grow.
