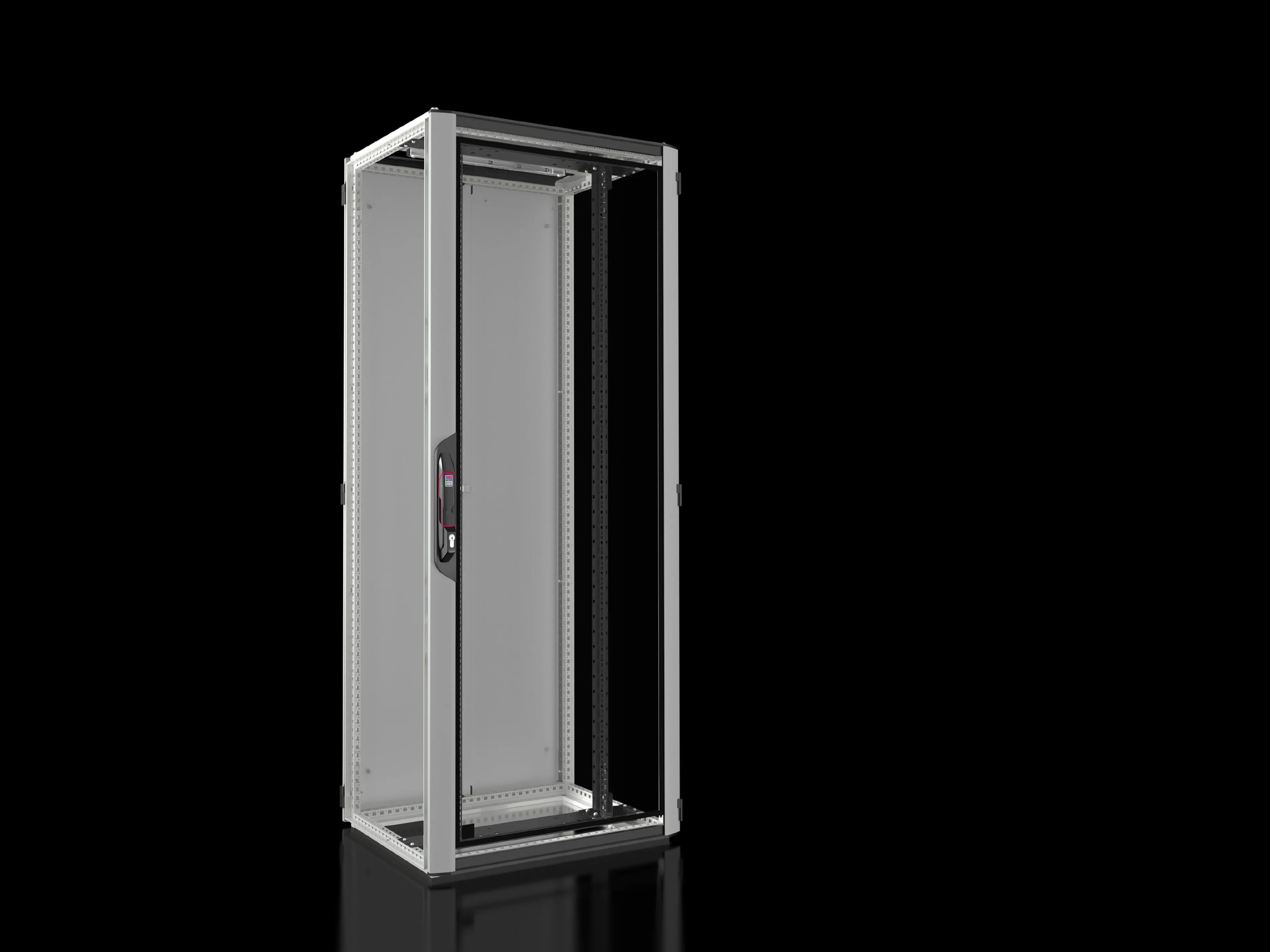

Rittal VX 5306.122 VX IT Enclosure - IK08
Part Number: 5306122
Quick Summary
Rittal VX 5306.122 VX IT enclosure is a 19" network/server cabinet for robust industrial IT deployments. On shop floors, heat, cable management, and downtime challenge uptime and project schedules; this enclosure addresses those pains by offering integrated climate control readiness and standardized 19" mounting angles. Key standards include IK08 impact resistance and UL 2416 load performance, with a front glazed door and a 42 U interior that support visibility, serviceability, and safe equipment operation. The combination of a durable enclosure, compliant load ratings, and accessible front/rear access translates to reduced maintenance costs and improved deployment velocity for automation and IT infrastructure projects.
Product Information
Extended Description
5306122 Rittal: VX IT, 19" mounting angles, standard, front, glazed door, WHD: 800 x 2000 x 600 mm, 42 U
Article number
VX 5306.122
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 600 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 372 mm
Mounting position of the 482.6 mm (19") level
front
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with horizontal cable entry at the rear and prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front
Mounting angles position
482.6 mm (19") level, front
Load capacity
4,000 N
Max. load capacity (static) per enclosure to UL 2416
4,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
91.4 kg
PCF per pack (cradle-to-gate)
225.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944923
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front, glazed door, WHD: 800 x 2000 x 600 mm, 42 U
The VX IT enclosure leverages a 42 U interior with 800 mm width, 2000 mm height and 600 mm depth to maximize rack density while preserving serviceability and airflow. This feature delivers a tangible business impact by enabling more devices in a single cabinet, reducing footprint and cabling complexity for automated systems. The glazed front aluminium door with 180° hinges provides clear visibility and easy access for technicians, accelerating maintenance cycles and minimizing downtime in critical control rooms. 482.6 mm (19") mounting angles standard in the VX IT ensure compatibility with a wide range of off-the-shelf 19" equipment, while front mounting and 150 mm front clear space enable cleaner cabling and thermal management. The roof plate is prepared for a fan mounting plate and spacers support passive cooling above the fan cut-out, improving heat dissipation and energy efficiency in high-density IT spaces. Supplying includes mounting hardware, screws and spacers, reducing field procurement and installation time, and facilitating faster, standards-compliant deployments. Constructed from sheet steel with a powder-coated rear and roof, and aluminium front door, the enclosure delivers robust mechanical protection (IK08) and long-term durability, translating to lower replacement costs and reduced lifecycle risk. Overall, the VX IT enclosure offers industry-aligned compatibility with 19" equipment, strong security with profile half-cylinder locks, and a modular design that supports scalable IT and automation architectures.
Get a Quick Quote for a Rittal 5306122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5306122?
Enquire Now
FAQs
VX 5306.122 uses standard 482.6 mm (19") mounting angles and offers a 42 U interior, front and rear access, and a front glazed door. This enables seamless installation of common 19" IT hardware, network switches, and control modules while maintaining clean cable routing and service access on the shop floor.
The roof plate is prepared for a fan mounting plate and includes spacers to raise a cover plate above the fan cut-out, enabling direct or passive cooling. This design supports adaptable airflow management in dense IT layouts, helping maintain stable operating temperatures and reduce cooling energy consumption.
Yes. The enclosure features IK08 impact resistance, a sheet steel body with powder-coated rear/roof, and a front glazed aluminium door. These build characteristics, combined with UL 2416 load performance, provide durable protection for mounted equipment in challenging manufacturing or automation environments.
The package includes 482.6 mm mounting angles, spacers (50 mm), top and bottom screws for 19" mounting, 12 x 482.6 mm fasteners, 25 multi-tooth screws, and a multi-piece roof plate with rear cable entry. This comprehensive hardware set reduces on-site sourcing time and ensures compliant, vibration-resistant installation.
The enclosure ships as a single pack weighing 91.4 kg. The cradle-to-gate PCF is 225.2 kg CO2 eq (Category B). This data supports eco-conscious procurement decisions and helps quantify lifecycle impact for sustainability reporting.
