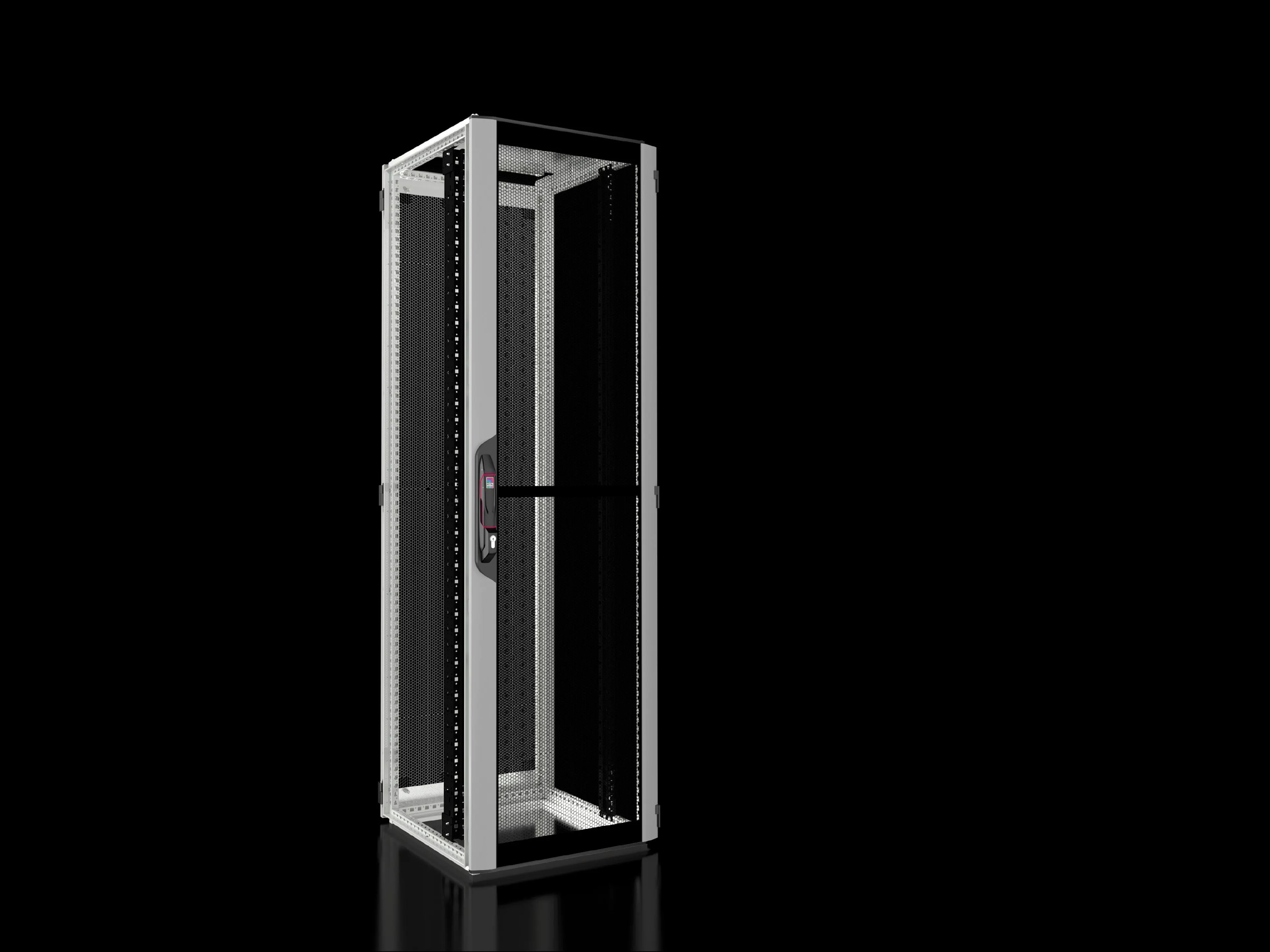

Rittal VX 5307.114 VX IT Enclosure - 42U, 19in mounting
Part Number: 5307114
Quick Summary
Rittal VX IT enclosure is a vented 42U 19in network/server cabinet designed for data centers and industrial IT rooms. It addresses common pain points like heat buildup, restricted mounting space, and difficult maintenance access on the shop floor. The design aligns with the UL 2416 load standard, and is classified under ETIM EC002499 and ECLASS 27180207 to streamline procurement and compliance. With front and rear vented doors and standard 19-inch mounting angles, it supports scalable, compliant IT infrastructure, delivering reliable cooling and secure access for demanding industrial environments.
Product Information
Extended Description
5307114 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2000 x 800 mm, 42 U
Article number
VX 5307.114
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
89.8 kg
PCF per pack (cradle-to-gate)
221.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177944947
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2000 x 800 mm, 42 U
Vented enclosure design enables passive cooling, reducing energy costs and improving equipment longevity while maintaining airflow efficiency for dense IT deployments. The 42U space combined with 800 mm width and 800 mm depth supports a wide range of 19" IT gear, from switches to blade servers, enabling compact data-center racks and shop-floor configurations. Business impact: higher rack density, lower cooling requirements, and simpler cabling management in high-heat environments. Application: data centers, manufacturing IT rooms, and industrial control rooms where reliable enclosure cooling and organized rack layouts are critical. 19" mounting angles standard in VX IT ensure rapid installation and compatibility with common racks and accessories, reducing commissioning time and procurement complexity. Business impact: faster project delivery and predictable integration with existing infrastructure. Application: scalable IT cabinets for growing networks and edge computing deployments. Front and rear vented doors with 180° hinges enhance serviceability, quick access for maintenance, and balanced airflow management. Business impact: minimized downtime and improved fault diagnosis. Application: rack-mounted IT hardware on the factory floor. Load capacity of 8,000 N per enclosure supports heavy equipment and dense server configurations, delivering structural reliability for mission-critical deployments. Application: high-density compute and storage in constrained spaces. The enclosure ships with mounting angles, spacers for passive cooling, and required fasteners, reducing on-site sourcing and installation time. Business impact: lower total cost of ownership and faster ROI. Material mix of sheet steel and aluminium provides rugged strength with reduced weight, enhancing transport efficiency and longevity in challenging environments. Application: on-site installation and long-term durability in harsh industrial settings. Aluminum front door and powder-coated rear section improve corrosion resistance and aesthetics, supporting compliant and visually consistent installations. Industry readiness: ETIM EC002499 and ECLASS 27180207 classifications ensure streamlined procurement and accurate product categorization across ERP systems, while the included roof plate is prepared for fan mounting, enabling straightforward upgrades for active cooling when needed.
Get a Quick Quote for a Rittal 5307114
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5307114?
Enquire Now
FAQs
Yes. The VX IT enclosure uses standard 482.6 mm (19 inch) mounting angles and provides 42 U of interior space. It accommodates a wide range of 19" IT hardware, from network switches to blade servers, with front and rear mounting rails designed for easy installation and organized cabling.
The enclosure is vented front and rear, enabling passive cooling alongside optional active cooling via the prepared fan mounting plate in the roof. It supports up to 8,000 N static load per enclosure, ensuring stable support for dense equipment and reducing risk of structural failure in high-density racks.
Absolutely. With 42U of space, 800x2000x800 mm dimensions, vented doors, and compatible mounting rails, it fits data centers and shop-floor IT rooms where controlled cooling and secure access are essential. Its robust build and compatibility with standard 19" gear make it a versatile choice for edge and central IT deployments.
The product aligns with UL 2416 load requirements, supporting safe, compliant operation for heavy equipment. It is catalogued under ETIM EC002499 and ECLASS 27180207, which facilitates procurement and ERP classification. Note that explicit CE or IP certifications are not stated in the data, so verify regional compliance as needed.
Included mounting angles, spacers for passive cooling, and diverse hardware reduce install time and on-site sourcing. The 42U capacity and 8,000 N load rating, combined with robust materials and corrosion-resistant finishes, support a lower total cost of ownership and predictable ROI through improved reliability and easier scalability for growing IT workloads.
