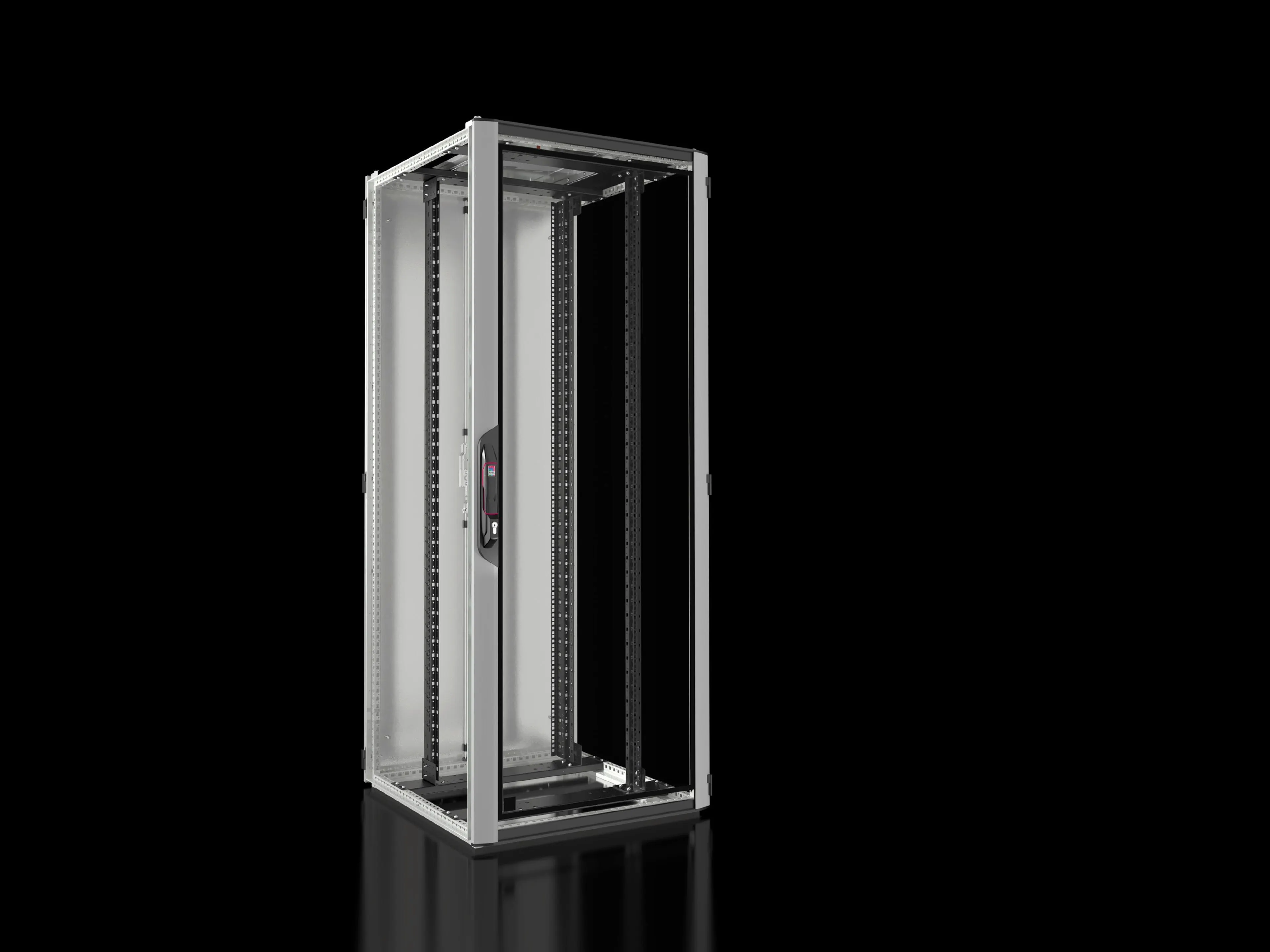

Rittal VX 5307.124 IT Enclosure - 42U IK08 Certified
Part Number: 5307124
Quick Summary
VX IT enclosure secures 19" IT equipment with integrated climate control for data centers and industrial facilities. Operators often battle inconsistent cooling and cramped cable management inside closed cabinets. IK08 impact resistance and UL 2416 compliance ensure robust performance in harsh environments, while the durable frame finishes resist wear. This enclosure also supports front and rear access and passive cooling options, delivering scalable, maintenance-friendly infrastructure. By leveraging standard 482.6 mm (19") mounting angles and 42 U of mounting space, it simplifies upgrades and future-proofing for growing IT loads, with a focus on reliability, serviceability, and total cost of ownership.
Product Information
Extended Description
5307124 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2000 x 800 mm, 42 U
Article number
VX 5307.124
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
107 kg
PCF per pack (cradle-to-gate)
263.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177944954
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2000 x 800 mm, 42 U
19-inch rack compatibility with standard 482.6 mm mounting angles provides a flexible, plug-and-play integration path for network gear. Business impact: faster deployments and fewer field modifications. Application: data centers, automation racks in control rooms. Glass front door for visibility and lockable access reduces maintenance cycles and enhances security, enabling quick visual checks without compromising airflow. This front/rear glazing supports monitoring and serviceability in busy environments. The enclosure uses rugged materials—a sheet steel frame, aluminum front door, and powder-coated rear/roof components—delivering durability in industrial settings and extending service life, which lowers replacement costs. With a load capacity of 8,000 N, it safely supports dense server and switch configurations while maintaining structural integrity during peak operations. Dimensions of 800 mm width, 2,000 mm height, and 800 mm depth (42 U) align with standard rack footprints, easing cabinet planning and future expansions. Mounting angles positioned at the 482.6 mm (19") level front and rear enable flexible internal layouts and easy retrofits. The roof is prepared for fan mounting and side cable entry, supporting both passive cooling and active airflow strategies, which translates into stable operating temperatures and reduced energy use.
Get a Quick Quote for a Rittal 5307124
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5307124?
Enquire Now
FAQs
The VX IT enclosure uses standard 482.6 mm (19") mounting angles and supports 42 U of rack space, making it straightforward to mount common networking switches, servers, and storage. With front and rear mounting options, you can optimize cable routing, optimize airflow, and simplify future expansions without custom fabrication.
The rear roof design is prepared for a fan mounting plate and includes spacers to raise a cover plate above the fan cut-out, enabling passive cooling or the addition of active cooling. This facilitates controlled airflow, minimizes hot spots, and helps maintain stable internal temperatures in dense IT deployments.
Yes. With a 42 U capacity, 800×2000×800 mm footprint, front glazing, and robust IK08-rated construction, it serves both data center racks and automation cabinets. The sturdy sheet steel construction and powder-coated finish withstand industrial conditions, while lockable doors and secure mounting options meet facility security and reliability requirements.
The enclosure carries IK08 impact resistance and UL 2416-compliant load performance, confirming durability against physical impacts and reliable structural integrity for network equipment. While CE marking and other certifications may be present for broader compliance, IK08 and UL 2416 specifically address mechanical robustness and safe static loading in challenging environments.
The durable finishes, modular 19" mounting rails, front/rear access, and ready-for-fan mounting reduce maintenance time and downtime during upgrades. Its 8,000 N load capacity supports growing hardware footprints, enabling longer asset lifecycles and lower total cost of ownership by delaying cabinet replacement and simplifying service events.
