Rittal VX 5307.157 IT Network Rack - IK08
Part Number: 5307190
Quick Summary
VX IT network/server rack from Rittal securely houses IT and server equipment in industrial environments. It addresses common pain points like limited rear access, cooling constraints, and the challenge of scaling rack capacity in busy facilities. Key certifications and design features include IK08 impact protection and a robust 19-inch mounting framework for rugged industrial use. This enclosure is pre-configured for fast deployment, with a glazed front door, direct rear access, and a swing frame that enhances serviceability. From data centers to manufacturing floors, operators gain reliability, easier maintenance, and compliant, scalable IT infrastructure. Its modular base plinth, 19-inch level compatibility, and pre-fitted accessories help reduce installation time and lifecycle costs. A high load capacity and versatile mounting hardware support demanding rack configurations.
Product Information
Extended Description

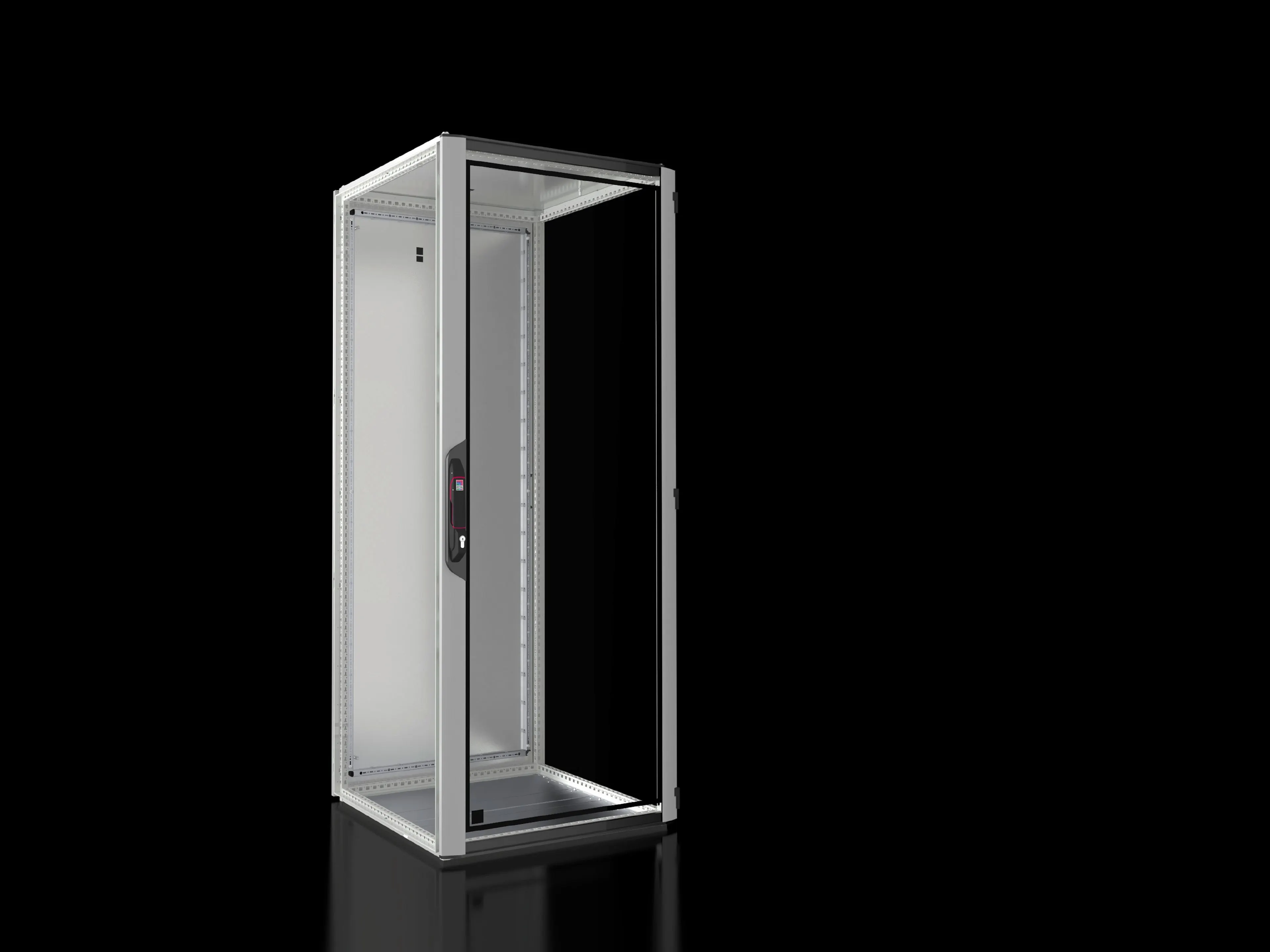

5307190 Rittal: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 800 x 2000 x 800 mm, 42 U, IP 55
Article number
VX 5307.190
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, one-piece, 130° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Roof plate, one-piece, solid | Base tray with gland plate, multi-piece, solid | Baying seal and sealing kit for gland plates (supplied loose) | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 800 mm
Units
42 U
Units
42 U
Roof design
one-piece, solid
Rear door design
Sheet steel door, solid, one-piece, 130° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
without
Base design
Base tray with gland plate, multi-piece, solid
Mounting angles position
without
Protection category to IEC 60 529
IP 55 only in conjunction with baying seal or screw-fastened side panels
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
95.6 kg
PCF per pack (cradle-to-gate)
235.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177944992
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 800 x 2000 x 800 mm, 42 U, IP 55
Pre-configured VX enclosure accelerates deployment and reduces on-site assembly risk, delivering faster time-to-value for IT and automation projects. This translates to lower labor costs and fewer schedule slippages when provisioning new workloads or expanding capacity in data centers and industrial facilities. The integrated design ensures repeatable rack layouts and consistent mounting quality, enabling predictable airflow management and easier spare-part planning. The 482.6 mm (19-inch) interior with a large swing frame (130°) provides direct access to rear-mounted components, simplifying cable management, fault isolation, and field maintenance in tight installations. Glazed front aluminium doors with 180° hinges improve visibility and accessibility while preserving security and environmental protection. The base/plinth system, vented 100 mm plinth, and removable roof plate support passive cooling strategies and vibration resilience, helping to maintain optimum temperatures in harsh environments. The included rails, fasteners, and spacers reduce the risk of mismatched hardware and ensure robust, vibration-resistant mounting for high-density equipment. With a 3,500 N load capacity and IK08 rating, this enclosure supports heavy equipment and rugged factory conditions while maintaining structural integrity over time. Overall, the VX 5307.157 combines rugged construction with modular accessories, shortening installation times, lowering lifecycle costs, and enabling scalable IT infrastructure across mixed IT and automation landscapes.
Get a Quick Quote for a Rittal 5307190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5307190?
Enquire Now
FAQs
VX 5307.157 is designed around a 482.6 mm (19-inch) mounting standard with dedicated combination rails and a large swing frame. It supports typical 19-inch server, network, and industrial automation modules, allowing straightforward installation of rack-mount equipment and accessories while maintaining alignment and grounding.
The enclosure includes a vented base/plinth and a removable roof plate with side cable entry, enabling optimized passive cooling paths and flexible fan or venting options. These features help maintain stable temperatures in high-density IT and automation racks, reducing thermal hotspots and extending component longevity.
Yes. With IK08 impact protection and a robust steel/aluminium construction, the VX 5307.157 is built to withstand challenging environments. Its 3,500 N load capacity supports heavy equipment, while the solid rear door and secure glazing front door provide protection without compromising serviceability.
The enclosure uses a 130° swing frame for full rear access and a glazed front aluminium door with 180° hinges. Plan for sufficient clearance to allow full door movement, and ensure that mounting and cabling paths can accommodate the swing range to simplify maintenance and future upgrades.
Investing in the VX 5307.157 yields faster deployment due to pre-configuration, reduced on-site assembly, and easier maintenance thanks to full rear access and modular mounting. With a durable IK08-rated build and a 40 U capacity, you gain long-term reliability, lower lifecycle costs, and scalable IT infrastructure that supports evolving automation needs.
