Rittal VX 5309.156 VX IT Enclosure - 42U IK08
Part Number: 5309156
Quick Summary
Rittal VX IT Enclosure is a rugged 19" network/server cabinet for data and control cabinets in industrial environments. Engineers often wrestle with thermal management, cable routing, and long lead times when deploying IT in demanding machinery spaces. This VX IT model delivers IK08 impact resistance and UL 2416 compliant load handling, plus durable powder-coated surfaces and a front glazed aluminium door for quick status checks. The enclosure ships pre-configured with practical equipment, 482.6 mm (19") mounting angles, and a front/rear access layout that speeds installation. With base plinths, side panels, and fan-mounting readiness, it supports scalable IT infrastructure in factories, data centers adjacent to production lines, and hybrid automation environments. This combination reduces downtime and accelerates project ROI.
Product Information
Extended Description

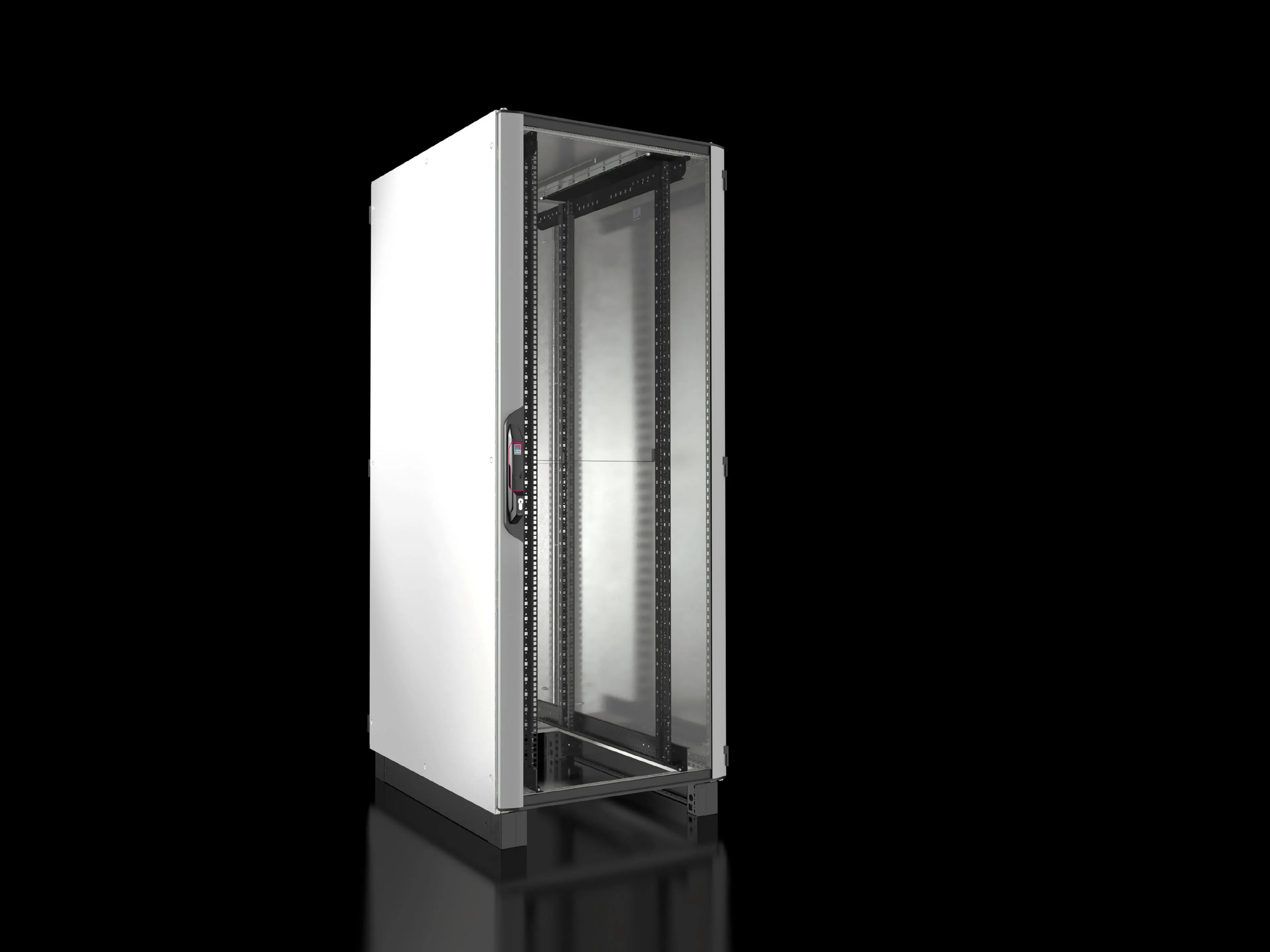

5309156 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2100 x 1000 mm, 42 U, pre-configured
Article number
VX 5309.156
Material
Sheet steel | Aluminium | Plastic | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, base/plinth: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Side panels, one-piece, for screw fastening | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Base module mounted at front as infill panel | Base/plinth system VX, 100 mm, vented | Base/plinth corner pieces and trim panels, sides, screw-fastened | Base/plinth trim panels, front and rear plus corner and baying covers supplied loose | 4 levelling feet, M12, including base/plinth adaptor (supplied loose) | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | 4 combination rails for inner and outer mounting level, to fit rack depth (supplied loose) | 10 cable shunting rings, metal, 125 x 65 mm (supplied loose) | IPPC pallet | Base module mounted at front as infill panel, depth 75 mm | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,000 mm
Units
42 U
Units
42 U
Height including base/plinth
2,100 mm
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
Pre-configured
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Base module mounted at front as infill panel
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
177 kg
PCF per pack (cradle-to-gate)
436.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945111
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2100 x 1000 mm, 42 U, pre-configured
482.6 mm 19-inch mounting rails, front and rear. Feature provides a stable backbone for diverse IT gear, reducing installation time and misalignment risk. In practice, engineers can drop in switches, servers, and controllers into the VX IT enclosure with confidence in consistent mounting across both levels, supporting scalable automation architectures. Glazed front door and robust enclosure. The 3 mm safety glass front offers quick visual status without compromising security, while the aluminium door and 180° hinges simplify access during maintenance. This is especially valuable in live production environments where downtime must be minimized. Base plinth system and vented options. The 100 mm vented base module and 4 levelling feet allow precise floor leveling on uneven plant floors, improving airflow and reducing dust ingress, translating to steadier cable runs in retrofit projects. Comprehensive pre-configured contents. The VX IT ships with side panels, roof plate with side cable entry, fan mounting readiness, and multiple mounting rails plus spacers and screws, accelerating project timelines by cutting ordering and assembly steps for machine builders integrating PLCs and industrial PCs. Cable management and cooling enhancements. The interior includes 12 x 482.6 mm fasteners and 10 cable shunting rings to organize harnesses, while spacers support passive cooling above fan cut-outs, aiding compliant thermal design in harsh environments. Rugged materials and rating. With sheet steel construction, powder-coated rear door and roof, and IK08 impact resistance, the VX IT enclosure withstands demanding factory conditions. The color scheme (RAL 7035) and front/rear access options help maintain safety standards and streamline changes as equipment evolves. Compliance and compatibility. Dimensions of 800 x 2000 x 1000 mm and 42 U capacity align with standard 19" equipment, ensuring compatibility with most IT gear. The UL 2416 loading guidance provides a benchmark for safe weight distribution on production-floor installations, while pre-configured mounting angles simplify upgrades.
Get a Quick Quote for a Rittal 5309156
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5309156?
Enquire Now
FAQs
The VX IT enclosure includes 482.6 mm (19") mounting angles with front and rear support, plus 12 x 482.6 mm fasteners and 4 combination rails to fit 42U configurations. This setup ensures straightforward, repeatable rack mounting for switches, servers, and controllers, reducing misalignment risk and installation time on crowded factory floors.
It provides side cable entry, a roof plate prepared for a fan mounting plate, and spacers for passive cooling above the fan cut-out. A vented 100 mm base module and multiple cable management accessories keep harnesses organized, improving airflow and maintenance access without sacrificing enclosure integrity in harsh environments.
Yes. It features IK08 impact resistance and UL 2416 loading guidance, supporting reliable operation in demanding production settings. The front glazed aluminium door and powder-coated surfaces offer long-term durability, while the 800x2000x1000 mm footprint aligns with common 19" equipment and installation patterns.
Dimensions are Width 800 mm, Height 2000 mm, Depth 1000 mm, with a total height including base/plinth of 2100 mm. The 42 U interior accommodates typical 19" hardware, and the base plinth plus leveling feet ensure stable alignment even on uneven floors, simplifying floor planning and airflow calculations.
The unit ships with base/plinth components, 19" mounting rails, side panels, roof plate with side cable entry, and multiple mounting and fastener sets. Upgrade options include additional base plinth modules, fan mounting accessories, and spare spacers for passive cooling, enabling scalable deployments as IT loads grow or equipment changes.
