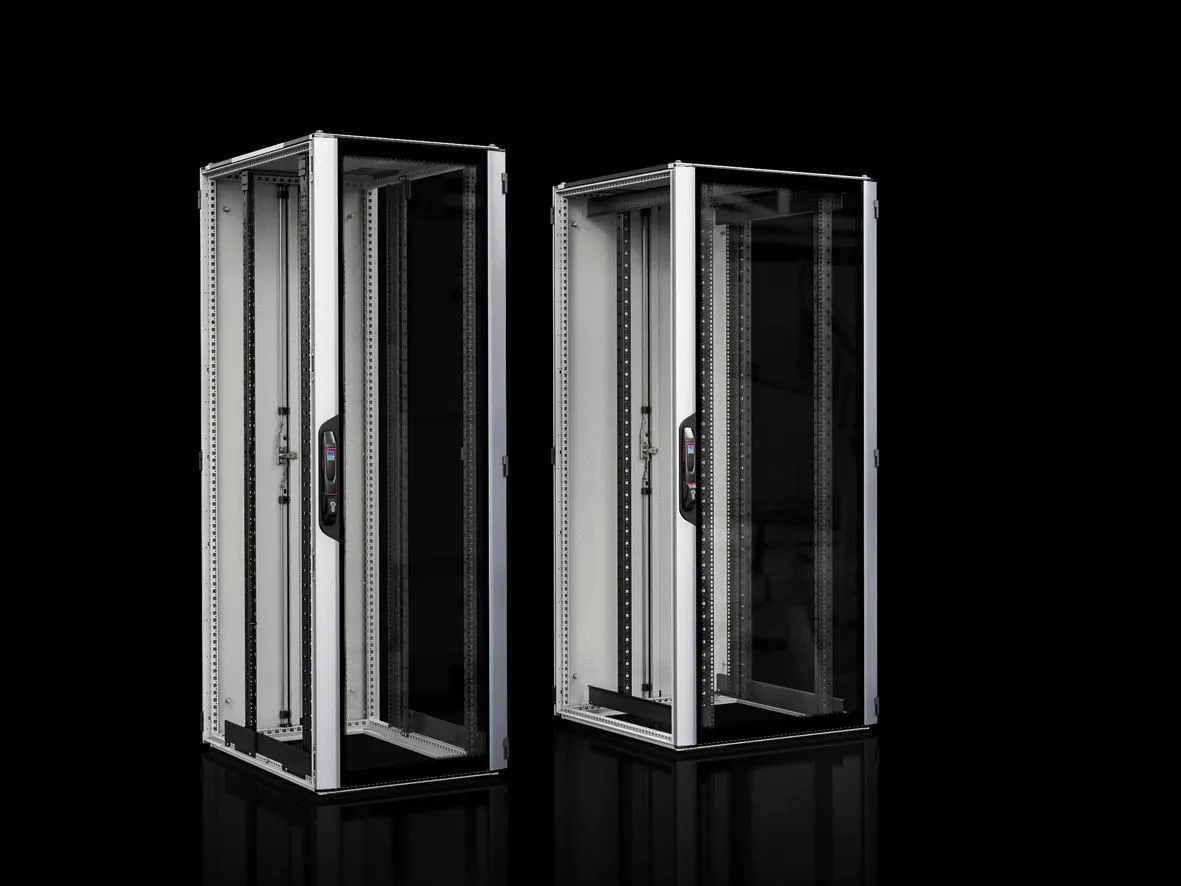

Rittal VX IT 5309.826 IT Enclosure - Dynamic 19" mounting
Part Number: 5309826
Quick Summary
Rittal VX IT 5309.826 IT enclosure provides closed climate-controlled housing for server and network equipment in data centers and industrial IT rooms. The design addresses common pain points like heat buildup, airflow management, and limited front/rear access during maintenance. It achieves IK08 impact resistance and UL 2416 compliance, helping you meet safety and performance standards without compromising enclosure practicality. This solution also supports scalable IT infrastructure with standard 19-inch equipment compatibility, while offering a robust, serviceable enclosure for critical applications in both data center and harsh industrial environments.
Product Information
Extended Description
5309826 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, glazed door, WHD: 800 x 2000 x 1000 mm, 42 U
Article number
VX 5309.826
Product description
TS IT, glazed door, solid rear door, 482.6 mm (19") mounting frame
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,000 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 213 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
700 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
dynamic
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
122 kg
PCF per pack (cradle-to-gate)
300.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945159
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, glazed door, WHD: 800 x 2000 x 1000 mm, 42 U
42U capacity and precise 800×2000×1000 mm dimensions provide ample room for current and future IT gear, enabling consolidations and fewer cabinet spares while maintaining efficient airflow. Feature → Business Impact → Application: The 42U IT enclosure with a 482.6 mm (19") mounting frame front and rear offers scalable rack integration for multi-vendor gear, reducing deployment time and simplifying maintenance in data centers and industrial IT rooms. The dynamic mounting angles facilitate quick reconfiguration to accommodate changing load and cooling needs, improving uptime and reducing downtime during upgrades. The glazed front door in aluminium combines visibility with security, allowing operators to monitor activity while protecting delicate components; the solid rear door adds robust cabinet integrity for rugged environments such as manufacturing floors. Material and finish choices—sheet steel, aluminium, safety glass, and powder-coated components—deliver long service life and reduced maintenance costs, with a corrosion-resistant surface suitable for mixed indoor environments. The roof plate is prepared for fan mounting and includes spacers for passive cooling, enabling energy-efficient cooling options without compromising enclosure integrity. The included 12× 482.6 mm fasteners, 25 multi-tooth screws, and spacers simplify installation and ensure a stable, grounded assembly, reducing retrofit risk. Weight and transport considerations are addressed with a per-pack weight of 122 kg and a clear pallet-ready packaging approach, supporting safer handling and site readiness. This enclosure aligns with standard 19" equipment footprints, easing procurement of compatible IT hardware and accessories while offering a professional, standards-aligned solution for climate-controlled IT housing. Compatibility with standard 19-inch rack gear and the option for fan-assisted cooling make it suitable for data centers, edge computing deployments, and industrial control rooms where reliable protection and serviceability matter.
Get a Quick Quote for a Rittal 5309826
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5309826?
Enquire Now
FAQs
Begin by aligning the VX IT 5309.826 enclosure with the 482.6 mm (19") mounting frame in the front and rear. Use the supplied 12 × 482.6 mm fasteners to secure the frame to the base or rack system, then attach the 19" mounting angles top and bottom as specified. Verify cable entry and door clearance before powering up. The dynamic mounting angles simplify reconfiguration if you add or move equipment later, reducing downtime during expansion.
Key specs include a 42U cabinet with dimensions 800 mm wide, 2000 mm high, 1000 mm deep; front glazed aluminium door and solid rear door; IK08 impact protection; weight around 122 kg per pack; load capacity up to 18,000 N (static 15,000 N per UL 2416); and a roof plate designed for passive or active cooling with fan mounting options.
Yes. The enclosure is designed for direct climate control tailored to the enclosure, with a roof plate prepared for a fan mounting plate and spacers for passive cooling. This enables efficient cooling for high-density IT deployments while preserving equipment integrity and serviceability in data centers or industrial IT rooms.
Absolutely. The front is a glazed aluminium door with 180° hinges, and the rear is a solid sheet steel door with 180° hinges, allowing full front and rear access. This design supports convenient installation, cable management, and maintenance without relocating the cabinet.
The enclosure features IK08 impact protection and UL 2416 compatibility for static load performance, aligning with demanding safety and reliability requirements in industrial and data-center environments. It also carries associated product data and classifications (ETIM 9 EC002499, ECLASS 8.0 27180207) for efficient procurement and system integration.
