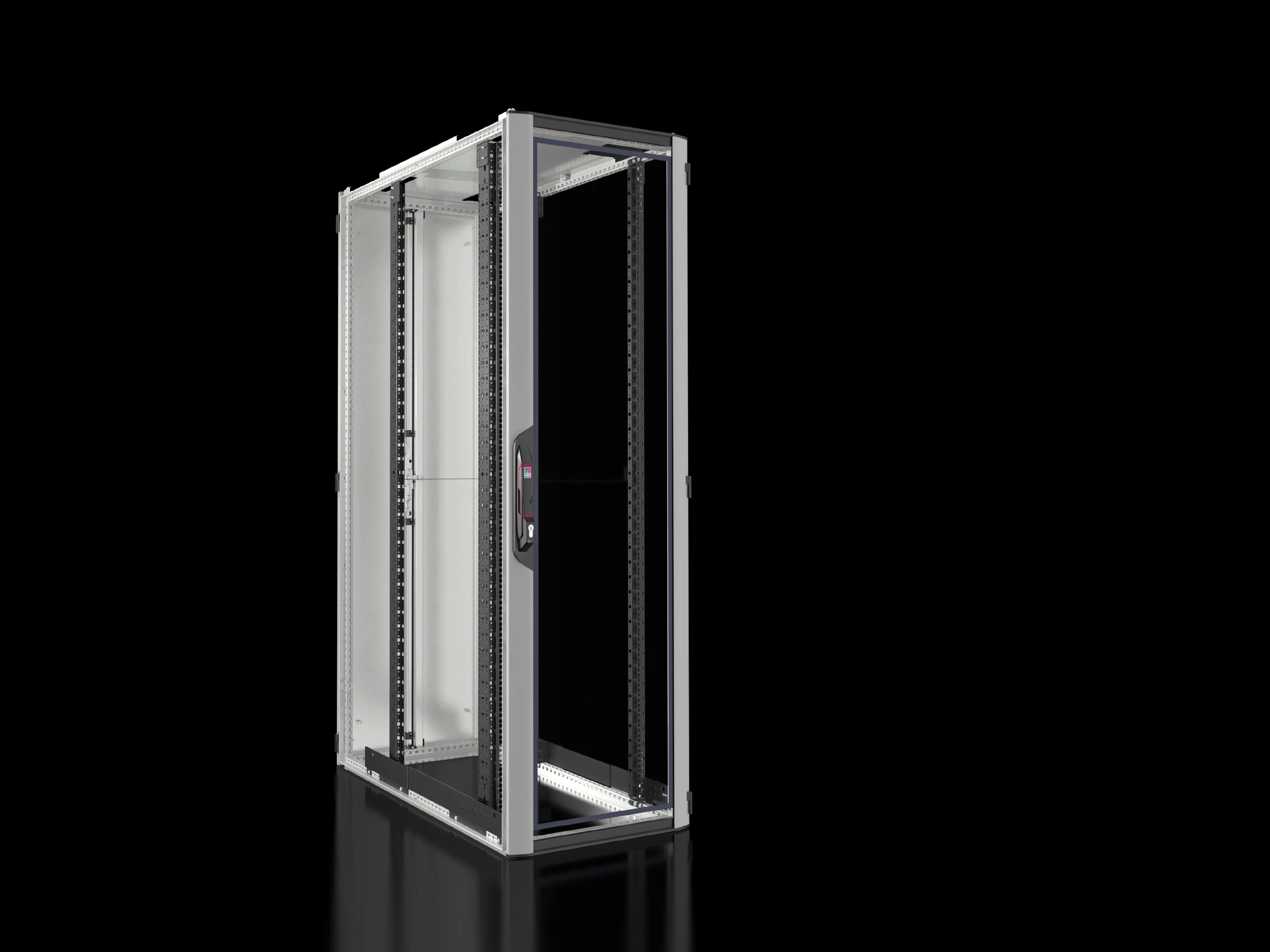

Rittal VX 5310.128 VX IT Enclosure - IK08, 42U
Part Number: 5310128
Quick Summary
Rittal VX IT enclosure is a rugged 19" server cabinet designed for direct climate control in industrial IT applications. Engineers often struggle to protect sensitive equipment from dust, heat, and airflow disruptions while keeping cable routing accessible for maintenance. IK08 impact protection and UL 2416 compliance provide rugged reliability in harsh factory environments, ensuring long-term performance. With a 600 x 2000 x 1200 mm footprint and 42U of mounting space, front and rear 482.6 mm (19") levels, and a glazed front door for quick checks, it supports scalable, secure deployments. This combination helps IT/OT teams accelerate projects, simplify thermal management, and reduce downtime across manufacturing and data-center edge environments.
Product Information
Extended Description
5310128 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 1200 mm, 42 U
Article number
VX 5310.128
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 1,200 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 330 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
92.5 kg
PCF per pack (cradle-to-gate)
227.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945180
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 600 x 2000 x 1200 mm, 42 U
The VX IT enclosure uses a 600 mm width, 2,000 mm height, and 1,200 mm depth footprint delivering 42U of usable mounting space for dense 19" equipment. This translates to higher device density and streamlined cable routing, enabling quicker deployments and easier maintenance in edge data centers and production lines. The front glazed aluminium door, 180° hinges, and rear sheet steel door provide secure access with clear visibility for inspection without compromising protection. Included 482.6 mm (19") mounting angles, plus height spacers and 12 x 482.6 mm fasteners, simplify installation and align equipment for optimal airflow and passive cooling when required. With IK08 protection and UL 2416 static/load ratings, the enclosure promises robust performance in demanding environments, reducing replacement costs and downtime. The design also accommodates front and rear mounting levels, improving serviceability and future scalability in automation cabinets.
Get a Quick Quote for a Rittal 5310128
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5310128?
Enquire Now
FAQs
The VX 5310.128 uses standard 482.6 mm (19") mounting angles, mounted front and rear, allowing direct installation of 19" equipment. Its 600 mm width, 2,000 mm height, and 1,200 mm depth yield 42U of space. Free mounting space is 150 mm at the front and 330 mm at the rear, with a 720 mm distance between levels to accommodate diverse rack configurations.
Key specifications include IK08 impact protection and UL 2416 compliance for load capacity. The enclosure supports up to 15,000 N load capacity (with a static limit of 12,000 N per UL 2416) to withstand harsh industrial conditions, while the robust sheet steel construction and glazed front door contribute to reliable operation in demanding environments.
The supply includes the VX enclosure frame with doors and roof plate, glazed front door with 180° hinges, comfort handle and security lock, 482.6 mm mounting angles, spacers for passive cooling, required fasteners, and a multi-piece roof plate with cable entry. Packaging includes a pallet and necessary hardware to support straightforward installation and serviceability.
Ideal for edge data centers, manufacturing automation cabinets, and controlled IT rooms requiring robust climate management. The combination of front/rear access, 19" mounting compatibility, and passive cooling options makes it well-suited for scenarios needing reliable thermal control, visual access, and scalable IT/OT integration.
With front and rear access, 19" mounting levels, and included spacers for passive cooling, maintenance windows are shortened and airflow is easier to manage. The 42U capacity supports more equipment in a single cabinet, reducing rack footprint and installation costs while UL 2416 and IK08 ratings boost equipment reliability and lifetime value.
