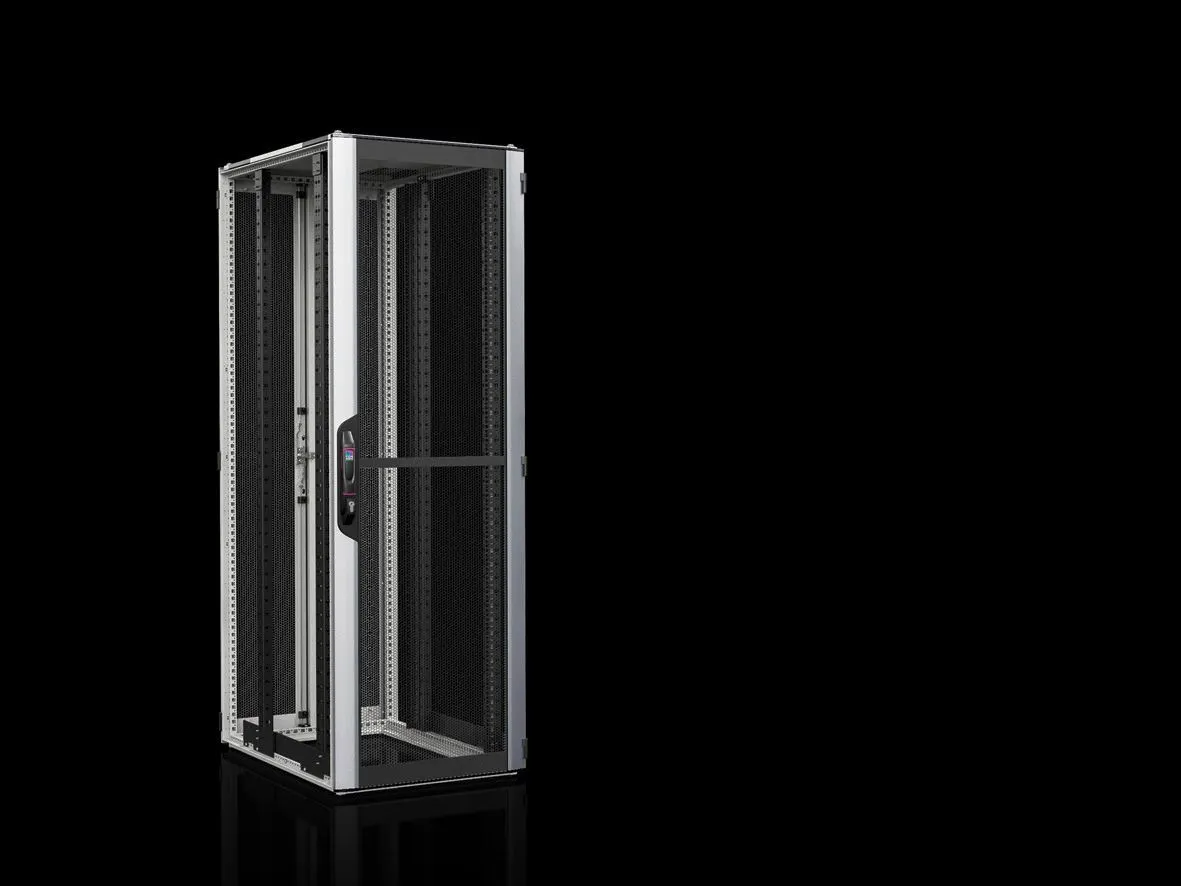

Rittal VX 5310.818 VX IT Enclosure - 42U, Dynamic
Part Number: 5310818
Quick Summary
Rittal VX IT enclosure protects IT equipment in climate-controlled rooms with secure 19 in rack mounting. Users often struggle with heat buildup, restricted service access, and tangled cabling when configuring modular server rooms. The design aligns with common industry standards and regulatory expectations for data-center hardware, including provisions for CE-style compliance considerations and robust front and rear venting. With 42 U of internal space, 600 mm width and 1200 mm depth, plus front and rear 482.6 mm 19 in mounting angles, it supports scalable IT infrastructure while enabling straightforward installation and servicing. This combination delivers reliability, data-center readiness, and improved total cost of ownership, integrating smoothly with existing racks and cabinet ecosystems.
Product Information
Extended Description
5310818 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2000 x 1200 mm, 42 U
Article number
VX 5310.818
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear
Dimensions
Width: 600 mm | Height: 2,000 mm | Depth: 1,200 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 325 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
725 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and on depth stays at the bottom
Design
dynamic
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
97 kg
PCF per pack (cradle-to-gate)
239 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945197
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2000 x 1200 mm, 42 U
Feature 42 U capacity with width 600 mm, height 2000 mm, depth 1200 mm provides scalable growth for mid-size data centers and edge deployments, reducing the need for frequent reconfiguration. Business Impact: More efficient space planning and future-proofing avoid costly relocations as equipment grows. Application: Suitable for telecom rooms, server enclosures, and distributed IT spaces. Feature Front and rear vented doors with 85% perforated surfaces improve passive cooling and airflow, lowering active cooling load and energy use. Application: Critical for equipment densely packed in tight racks. Feature Dynamic 19 inch mounting angles front and rear enable flexible rail placement and easy retrofitting of mixed equipment, speeding installation. Business Impact: Shorter downtime during upgrades and simpler hardware swaps. Application: Compatible with standard 19" servers and network devices. Feature Load capacity of 18,000 N (static 15,000 N per UL 2416) provides sturdy support for heavy equipment and future upgrades. Application: Reliable for power-hungry servers and dense storage arrays. Feature Supplied with mounting rails, spacers for passive cooling, and screws for quick assembly reduces field labor and mistakes. Application: Fast, repeatable installations with repeatable results. Feature Materials of sheet steel and aluminium combined with robust surface finishes offer strength with lighter weight and corrosion resistance. Application: Durable in industrial environments where exposure to dust and humidity is possible. Feature 42 U unit spacing and available free mounting space (front 150 mm / rear 325 mm) supports clean cable management and equipment access. Application: Clear front/rear access for maintenance and upgrades. Feature Comprehensive documentation and connectors in the roof plate with corner-entry cable routing simplifies wiring schemes. Application: Seamless integration with existing power, climate, and data cabling layouts.
Get a Quick Quote for a Rittal 5310818
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5310818?
Enquire Now
FAQs
The VX 5310.818 is designed for standard 19 inch rack installations with 482.6 mm mounting rails. It ships with front and rear rails, 12 x 19 inch fasteners, and spacers to raise a cover plate for passive cooling. For compatibility, verify rack mounting depth and check that mounting angles align front and rear as specified (150 mm front clearance, 325 mm rear clearance).
Key performance specs include 42 U of internal space, 600 mm width, 2000 mm height, 1200 mm depth, and a maximum load capacity of 18,000 N (static 15,000 N to UL 2416). The cabinet is vented at both doors (~85% perforated) to support passive cooling, reducing reliance on active cooling in appropriate layouts.
Yes. With 42 U capacity, 19 inch mounting rails front and rear, vented doors, and robust construction, the VX IT enclosure supports dense server, storage, and networking gear in climate-controlled spaces such as data centers and telecom closets. Its modular design enables scalable configurations while maintaining service accessibility.
Product specifications reference ETIM and ECLASS classifications (EC002499 and 27180207) and EAN 4028177945197, along with packaging and material data. While region-specific CE marking and IP ratings depend on final regional approvals, the enclosure is built to align with common industry standards and is documented for formal certification review via the provided datasheet.
ROI is driven by improved airflow, reduced cooling energy, easier future upgrades, and lower maintenance downtime due to front/rear access and standardized 19" rails. The 42 U capacity supports longer asset lifecycles, while the predictable mounting and cable-management features minimize installation time and field labor, delivering lower total cost of ownership over the cabinet’s lifecycle.
