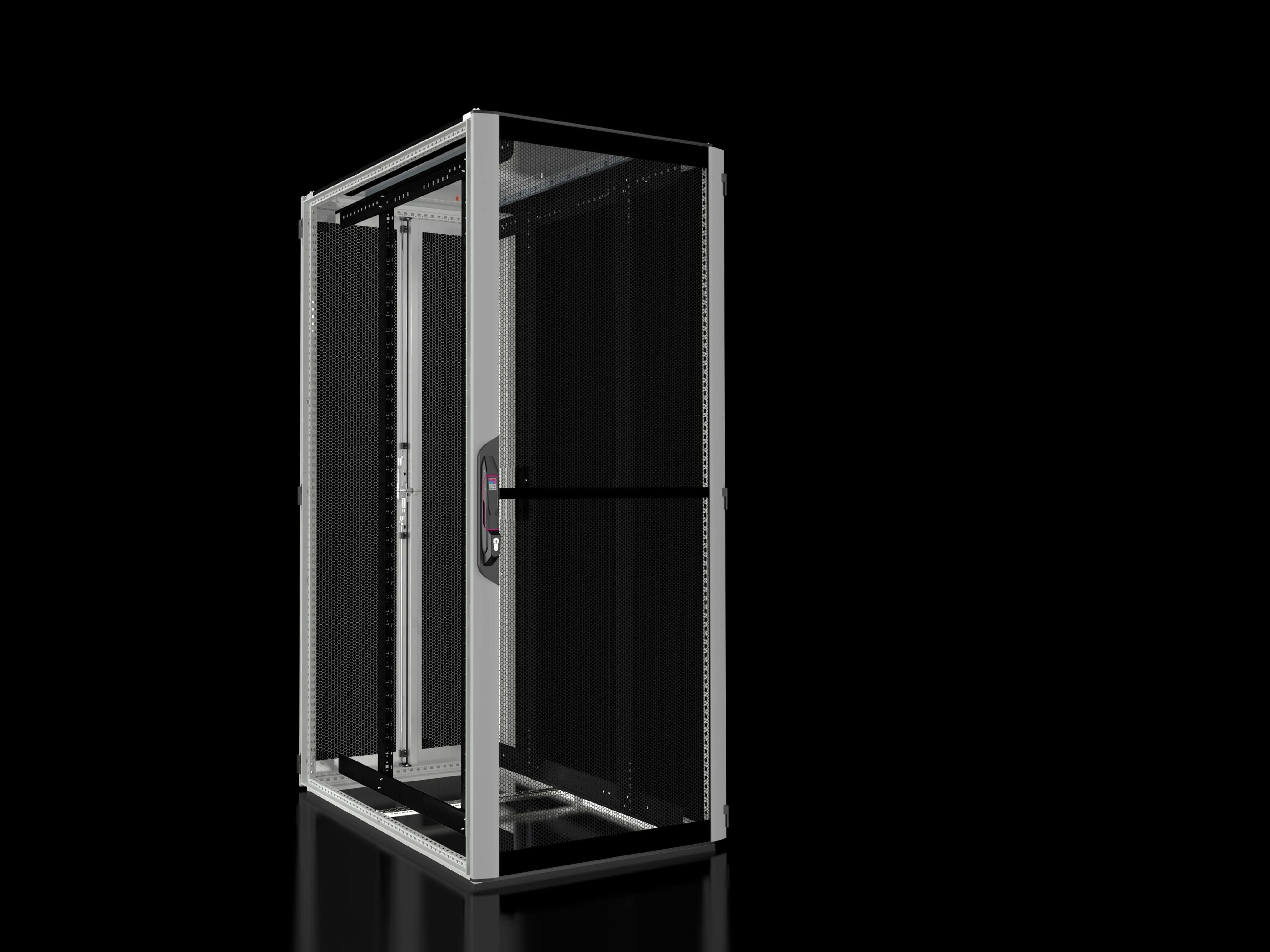

Rittal VX 5311.116 VX IT Enclosure - 42U Ventilated
Part Number: 5311116
Quick Summary
Rittal VX 5311.116 VX IT enclosure is a vented 42U 19" rack system designed for IT and network equipment in data centers. When space and cooling budgets tighten, you need modular, ship-ready enclosures with front and rear access. This design aligns with UL 2416 load requirements and carries ETIM 9 / ECLASS 8 classifications for easy procurement and system integration. Using 482.6 mm mounting angles and passive cooling features, it supports scalable airflow management and durable long-term operation. In practice, designers gain reliable airflow, quick deployment, and predictable maintenance cycles for IT rack deployments.
Product Information
Extended Description
5311116 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2000 x 1200 mm, 42 U
Article number
VX 5311.116
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,200 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 330 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
screw-fastened onto depth stays, top and bottom, and to the support rail on the frame structure
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
101 kg
PCF per pack (cradle-to-gate)
248.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945210
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 800 x 2000 x 1200 mm, 42 U
Ventilated 19" enclosure with front and rear access enables efficient airflow management and simplifies maintenance, boosting data-center efficiency and reducing cooling energy. → Business impact: improved thermal performance and lower operating costs in IT closets and server rooms. → Application: 19" mounting angles provided for standard equipment mounting, ensuring compatibility with a wide range of rack-mount gear. This reduces deployment time and minimizes customization needs. The 482.6 mm (19") level mounting supports front and rear alignment, enabling flexible cable routing and consistent equipment layout. → Business impact: faster installation and cleaner cabling in network rooms. → Application: data centers and telecom cabinets.
Get a Quick Quote for a Rittal 5311116
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5311116?
Enquire Now
FAQs
Install using the standard 482.6 mm (19 inch) mounting angles provided, mounting front and rear rails to the frame. Ensure the enclosure sits on a stable base and align with the 720 mm level-to-level spacing. Use the supplied 12 x 482.6 mm fasteners and 25 multi-tooth screws for secure assembly, then connect cooling and cabling through the roof plate’s side entry.
Confirm dimensions: width 800 mm, height 2000 mm, depth 1200 mm (42 U). Check the front and rear vented doors, 19" mounting rails, and the weight of 101 kg per pack. Ensure the enclosure supports your equipment weight (load capacity up to 15,000 N) and that the mounting angles are positioned for front and rear access as delivered.
Yes. The enclosure is vented with an approximately 85% perforated front door and roof design prepared for fan mounting. Spacers are included to raise a cover plate for passive cooling, promoting natural convection and reducing active cooling load in suitable configurations.
The design adheres to UL 2416 load requirements for static load capacity, supporting safe, high-availability rack deployments. Its data-driven classification (ETIM 9, ECLASS 8) simplifies procurement and integration with enterprise IT ecosystems.
The package includes the enclosure frame with both front and rear doors, roof plate, 482.6 mm mounting angles, spacers for passive cooling, 12 fasteners, 25 conductive screws, and necessary hardware for secure mounting and electrical grounding, all packed on a suitable pallet for transport.
