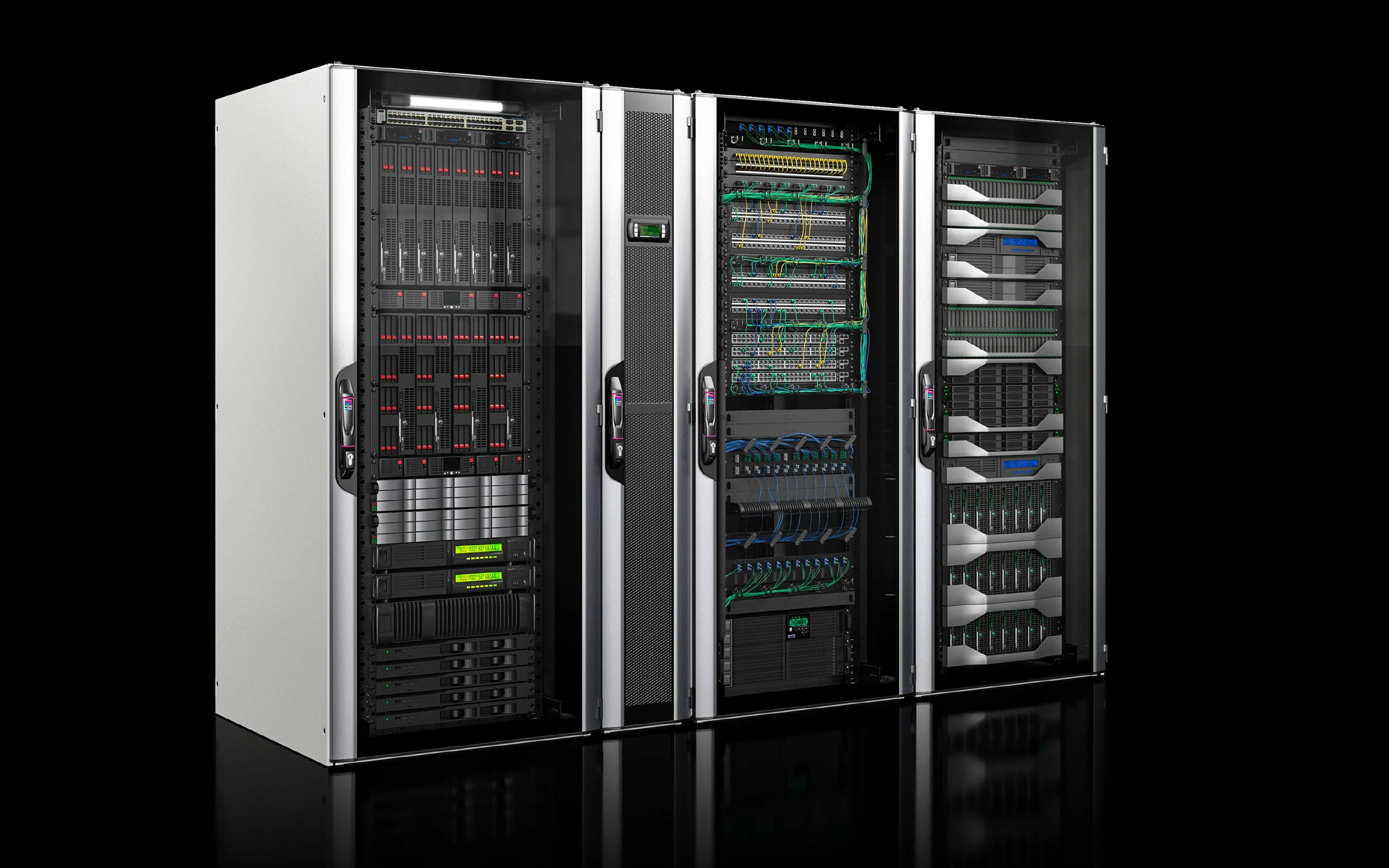

Rittal VX IT 5311.126 Enclosure - IK08, 42U, 19in
Part Number: 5311126
Quick Summary
Rittal VX IT 5311.126 enclosure provides climate-controlled 19" IT racks for data centers and industrial control rooms. Facility teams often struggle with space constraints, inconsistent cooling, and complex cable routing during upgrades or expansions. Key protections include IK08 impact resistance and UL 2416 compliance, helping to mitigate risk in harsh environments. With front and rear access, glazed front for visibility, and standard 482.6 mm (19") mounting angles, it supports scalable IT deployment while maintaining predictable airflow. This enclosure delivers repeatable performance, simplifies procurement, and reduces total cost of ownership through modular design and robust build.
Product Information
Extended Description
5311126 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2000 x 1200 mm, 42 U
Article number
VX 5311.126
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,200 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 330 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
screw-fastened onto depth stays, top and bottom, and to the support rail on the frame structure
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
116 kg
PCF per pack (cradle-to-gate)
285.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945227
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2000 x 1200 mm, 42 U
Feature → Business Impact → Application: The VX IT uses 19" mounting angles with depth-variable capability, enabling flexible rack layouts and rapid reconfiguration for evolving IT workloads, reducing changeover time and downtime. Application: data centers, control cabinets, and industrial networking environments. Feature → Business Impact → Application: Heavy-duty sheet steel with aluminium and a glazed front door delivers robust protection (IK08) while maintaining high visibility of critical equipment; Benefit: enhanced physical security and quick fault identification in demanding environments. Application: mission-critical server rooms and automated production cells. Feature → Business Impact → Application: Front and rear access with 482.6 mm (19") mounting levels and 720 mm level spacing enables organized cable management and simplified maintenance; Benefit: faster service and improved airflow management. Application: scalable IT deployments and multi-rack ecosystems. Feature → Business Impact → Application: Roof plate designed for side cable entry and prepped for fan mounting with spacers for passive cooling; Benefit: energy-efficient cooling options and easy integration of cooling accessories. Application: climate-sensitive equipment and equipment cooling optimization. Feature → Business Impact → Application: Included hardware such as mounting angles, screws, spacers, and a multi-piece roof plate; Benefit: reduced install time and lower total installed cost. Application: quick deployment in project-driven environments. Feature → Business Impact → Application: Color and finish (RAL 7035 exterior, RAL 9005 interior) plus sturdy rear door and glazed front door; Benefit: durable aesthetics and long-term maintenance friendliness. Application: installations requiring consistent appearance and easy cleaning, with long service life.
Get a Quick Quote for a Rittal 5311126
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5311126?
Enquire Now
FAQs
Yes. The enclosure uses standard 482.6 mm (19") mounting angles with front and rear mounting levels, matching most 19" network and server gear. It supports front and rear access, 42U of space, and includes the required hardware to streamline initial rack assembly and future expansions.
Key specs include a 42U unit with dimensions of 800 × 2000 × 1200 mm, IK08 impact protection, a maximum static load per UL 2416 of 12,000 N, and a full front glazed aluminium door plus a rear sheet steel door. The weight per pack is 116 kg, with a robust sheet steel frame and aluminium components for durability.
It is ideal for data centers, industrial control rooms, and mixed IT/OT environments where reliable climate control, 19" rack mounting, and secure access are needed. The unit supports passive cooling options with spacers and is designed for scalable IT deployment with front and rear accessibility for maintenance and upgrades.
The product explicitly features IK08 protection and UL 2416 compliance for load ratings. ECLASS 8.0 and ETIM 9 identifiers are listed (27180207 and EC002499, respectively). CE marking is not stated in the provided data, so verify regional requirements for European installations where CE might be expected.
Pre-supplied mounting angles, connectors, and spacers reduce initial install time, while front and rear access simplify ongoing maintenance. The durable finish and robust construction help minimize replacement cycles in demanding environments, contributing to lower long-term maintenance costs and a favorable total cost of ownership for mid-to-large scale IT deployments.
