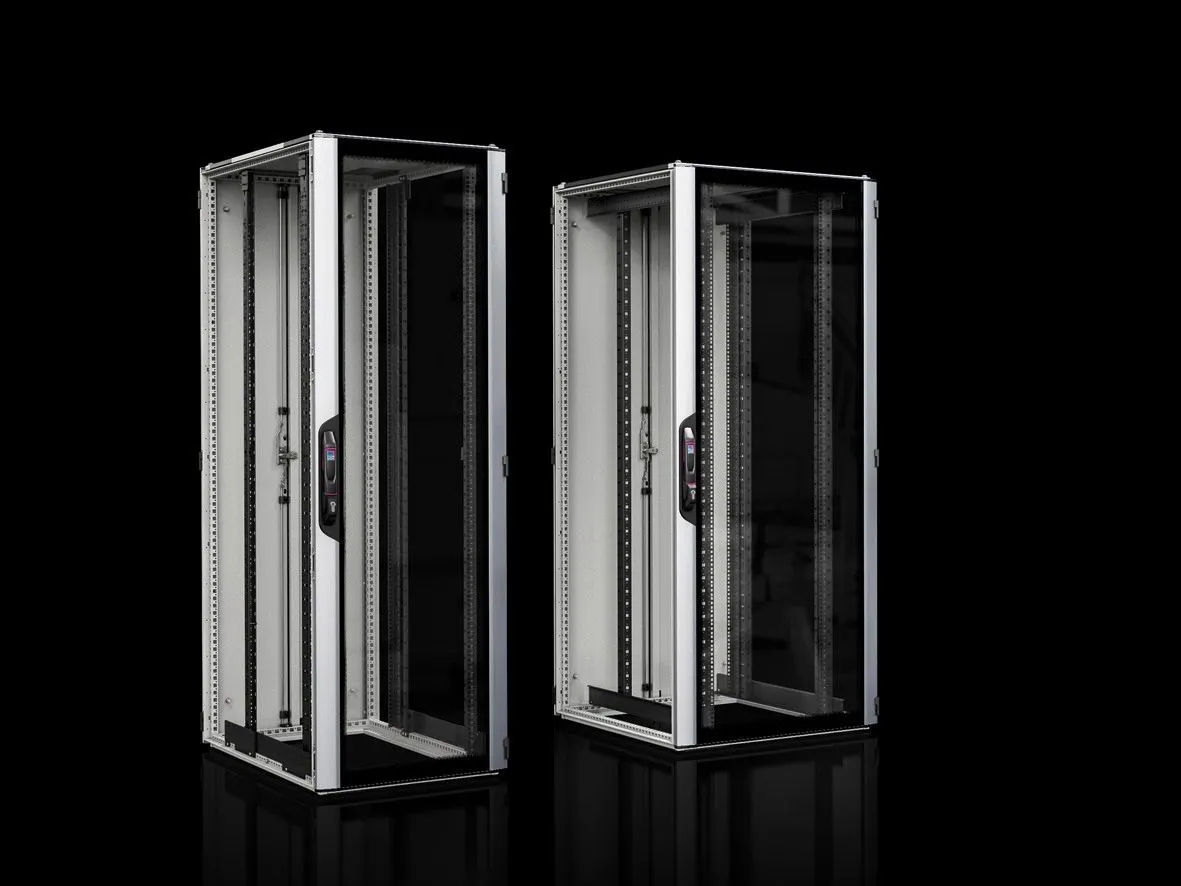

Rittal VX 5311.826 VX IT Enclosure - IK08 Dynamic 19in
Part Number: 5311826
Quick Summary
Rittal VX 5311.826 VX IT Enclosure is a climate-controlled 19" cabinet for IT and automation. Operators often battle heat buildup, limited ventilation, and messy cable routing in dense racks. It complies with CE, delivers IK08 impact resistance, and aligns with UL 2416 static-load standards for industrial enclosures. For IT and automation teams, the enclosure reduces downtime, improves airflow, and simplifies maintenance in industrial environments while supporting scalable 19-inch rack deployments. Designed as a versatile industrial enclosure, it combines front and rear access with glazed visibility to boost efficiency and asset protection.
Product Information
Extended Description
5311826 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, glazed door, WHD: 800 x 2000 x 1200 mm, 42 U
Article number
VX 5311.826
Product description
TS IT, glazed door, solid rear door, 482.6 mm (19") mounting frame
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Sheet steel rear door, solid, vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,000 mm | Depth: 1,200 mm
Units
42 U
Units
42 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 325 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
725 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
dynamic
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
123.1 kg
PCF per pack (cradle-to-gate)
303.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945241
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, glazed door, WHD: 800 x 2000 x 1200 mm, 42 U
Feature -> Business Impact -> Application: Dynamic 482.6 mm (19") mounting angles enable flexible front and rear equipment alignment, improving airflow and service access; this translates to shorter maintenance windows and lower downtime on busy factory floors. Application: ideal for data centers and automated production lines where modularity and rapid reconfiguration are required without compromising safety. Feature -> Business Impact -> Application: Glazed front door provides real-time visual status of critical components, reducing inspection time and enabling proactive maintenance; applicable to control cabinets housing sensitive IT/OT equipment. Feature -> Business Impact -> Application: Front and rear doors with robust sheet steel rear and glass front protectors deliver enhanced physical security and EMI containment, supporting compliance in harsh environments. Feature -> Business Impact -> Application: 42 U internal space with 800x2000x1200 mm WHD supports full 19" rack systems; translates to higher rack density and scalable deployments in manufacturing and data centers. Feature -> Business Impact -> Application: Passive cooling capabilities and roof plate readiness with spacers offer adaptable cooling strategies, decreasing energy use and enabling silent operation in office-adjacent tech rooms. Feature -> Business Impact -> Application: 18,000 N load capacity and IK08 impact resistance ensure reliable performance under vibration and external forces common in industrial environments, reducing replacement costs over the product life cycle. Feature -> Business Impact -> Application: CE and UL 2416 alignment provides regulatory confidence for multinational installations, simplifying procurement and traceability for controlled environments. Feature -> Business Impact -> Application: 482.6 mm (19") mounting frame integrates with common global 19" rack standards, ensuring compatibility with a wide ecosystem of IT and automation components without custom adapters. This reduces total cost of ownership by minimizing bespoke hardware and accelerating deployment timelines.
Get a Quick Quote for a Rittal 5311826
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5311826?
Enquire Now
FAQs
The enclosure uses front and rear 482.6 mm mounting angles that screw to the top and bottom of the depth stays. Begin with the frame alignment, attach mounting angles, then secure with the supplied 12 x 482.6 mm fasteners and 25 multi-tooth screws to ensure a rigid, vibration-resistant install suitable for industrial environments.
Key specs include 800 mm width, 2,000 mm height, 1,200 mm depth, 42 U of mounting space, load capacity up to 18,000 N (static 15,000 N to UL 2416), IK08 impact resistance, and CE compliance. The glazed front door and rear sheet-steel door provide secure access and visibility for critical equipment.
While well-suited for industrial automation and manufacturing floors, the VX IT enclosure's climate control, modular 19" mounting, and front/rear access also make it compatible with data centers and hybrid facilities that require robust, scalable IT/OT cabinets with reliable cooling and quick maintenance access.
The enclosure carries CE conformity, IK08 impact resistance, and UL 2416 compatibility for static loads, which matter for regulatory compliance, asset protection in vibration-prone environments, and reliable performance within mixed IT/OT installations.
ROI is driven by reduced downtime due to better cooling and easier access, lower maintenance labor from front/rear serviceability, and compliance-driven risk reduction. The product's 42 U capacity and dynamic mounting support scalable configurations, minimizing refresh cycles and supporting longer asset lifecycles.
