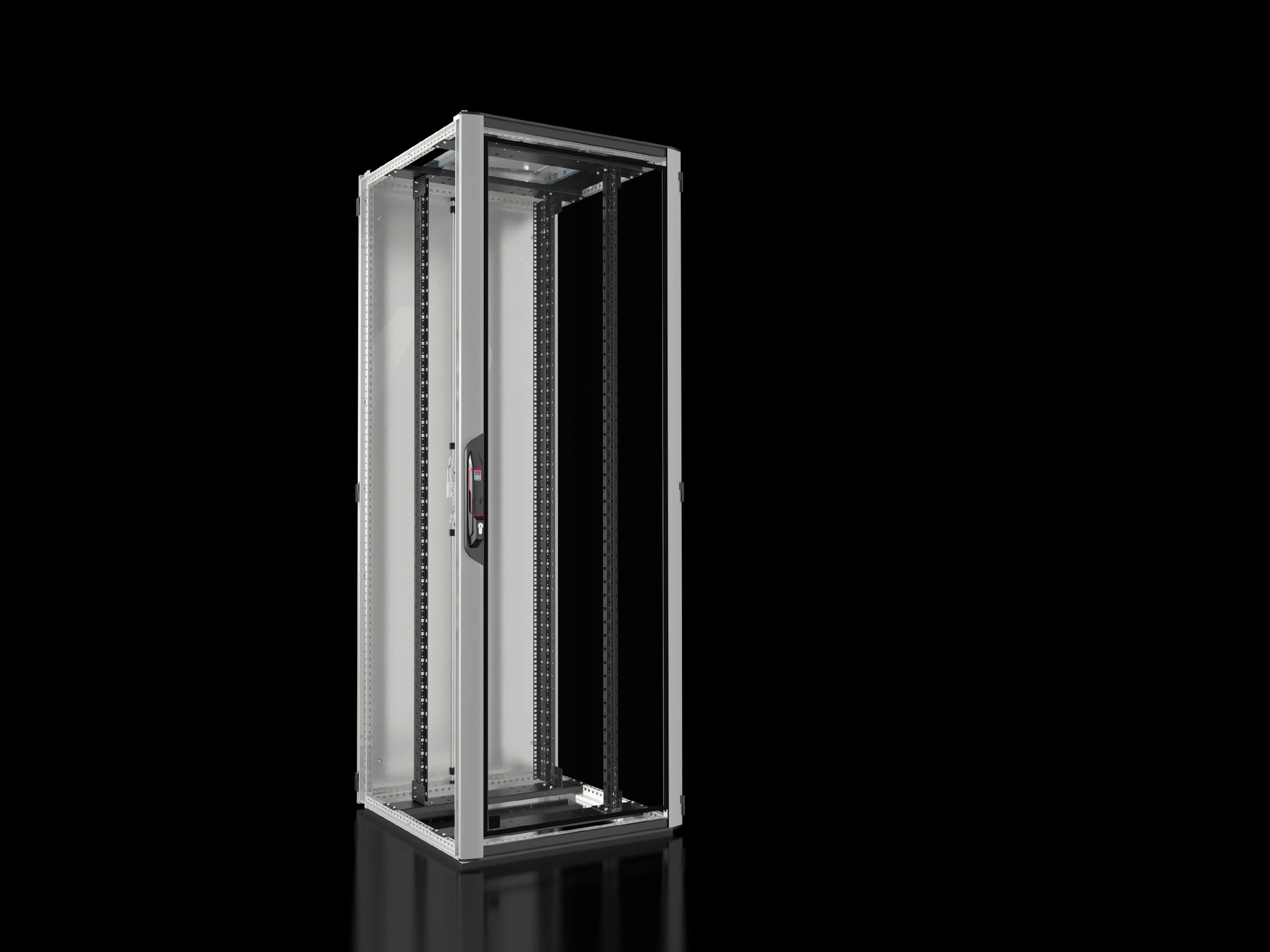

Rittal VX 5312.124 19\" IT Enclosure - IK08
Part Number: 5312124
Quick Summary
Rittal VX 5312.124 IT enclosure provides climate-controlled housing for 19\" network and server equipment. Facilities often struggle with compact data-center space, complex cable routing, and maintaining reliable cooling for dense IT racks. This cabinet offers IK08 impact resistance, UL 2416-compliant load ratings, and a 47U footprint to support scalable configurations—features commonly expected in European deployments with CE marking. The design includes 482.6 mm (19\") mounting angles, front and rear access, and a glazed front door, enabling straightforward installation in data centers, automation cabinets, and telecom rooms. With pre-installed mounting hardware, passive cooling options, and clearly defined assembly steps, it helps cut installation time, reduce downtime, and improve long-term maintenance planning for mission-critical IT and automation workloads.
Product Information
Extended Description
5312124 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2200 x 800 mm, 47 U
Article number
VX 5312.124
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 800 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 130 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
520 mm
482.6 mm (19") attachment
on the cross-member, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
8,000 N
Max. load capacity (static) per enclosure to UL 2416
8,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
115 kg
PCF per pack (cradle-to-gate)
283.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945272
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2200 x 800 mm, 47 U
Feature: 482.6 mm (19\") mounting angles, front and rear. Business Impact: ensures compatibility with standard 19\" equipment and supports flexible cabling routes. Application: data centers, automation cabinets, telecom rooms. Feature: Front glazed aluminium door with 180\° hinges. Business Impact: enhanced visibility for monitoring and easier access during maintenance, improving uptime. Application: high-availability IT rooms and industrial control cabinets. Feature: Dimensions 800 mm W x 2,200 mm H x 800 mm D (47 U). Business Impact: ample space for servers, switches, and power distribution units, enabling future expansion. Application: mid-to-large IT racks and automation enclosures. Feature: Load capacity 8,000 N (static) and IK08. Business Impact: supports heavy equipment and rugged environments, reducing structural concerns. Application: data centers with dense gear and industrial automation installations. Feature: Roof plate prepared for fan mounting plate and spacers for passive cooling. Business Impact: enables targeted cooling strategies and energy efficiency. Application: climate-sensitive deployments with potential for passive or mixed cooling. Feature: Material mix sheet steel and aluminium; surfaces primed and powder-coated. Business Impact: durable construction with corrosion resistance and service-life extension. Application: harsh industrial environments and long-term facility use. Feature: Comprehensive mounting hardware included (screws, spacers, and fasteners). Business Impact: accelerates installation and reduces sourcing steps. Application: turnkey data-center and factory-floor deployments.
Get a Quick Quote for a Rittal 5312124
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5312124?
Enquire Now
FAQs
VX 5312.124 uses standard 482.6 mm (19") mounting angles and a front/rear access design, supporting common 19" equipment racks. The included mounting hardware and detailed assembly guidance simplify installation in data centers and automation cabinets, minimizing downtime during rack expansion or reconfiguration.
The enclosure delivers a static load capacity of up to 8,000 N and carries IK08 impact protection, providing robust support for heavy IT gear and rugged industrial environments while maintaining cabinet integrity under demanding use.
Yes. With front and rear access, a glazed front door, 47U rack space, and climate-control readiness, the VX IT enclosure is well-suited for data centers, telecom rooms, and industrial automation cabinets requiring reliable cooling and easy service access.
The enclosure features IK08 protection and UL 2416-compliant load ratings, aligning with rugged, load-bearing cabinet requirements. European deployments commonly expect CE-marking; this model is designed with CE expectations in mind and supports standard industry compliance for rack enclosures.
Pre-fitted 19" mounting angles, front/rear door access, a roof plate prepared for fans, and spacers for passive cooling streamline installation and cooling optimization. The durable finish, included spacers and fasteners, and clear documentation help reduce downtime and simplify long-term maintenance planning.
