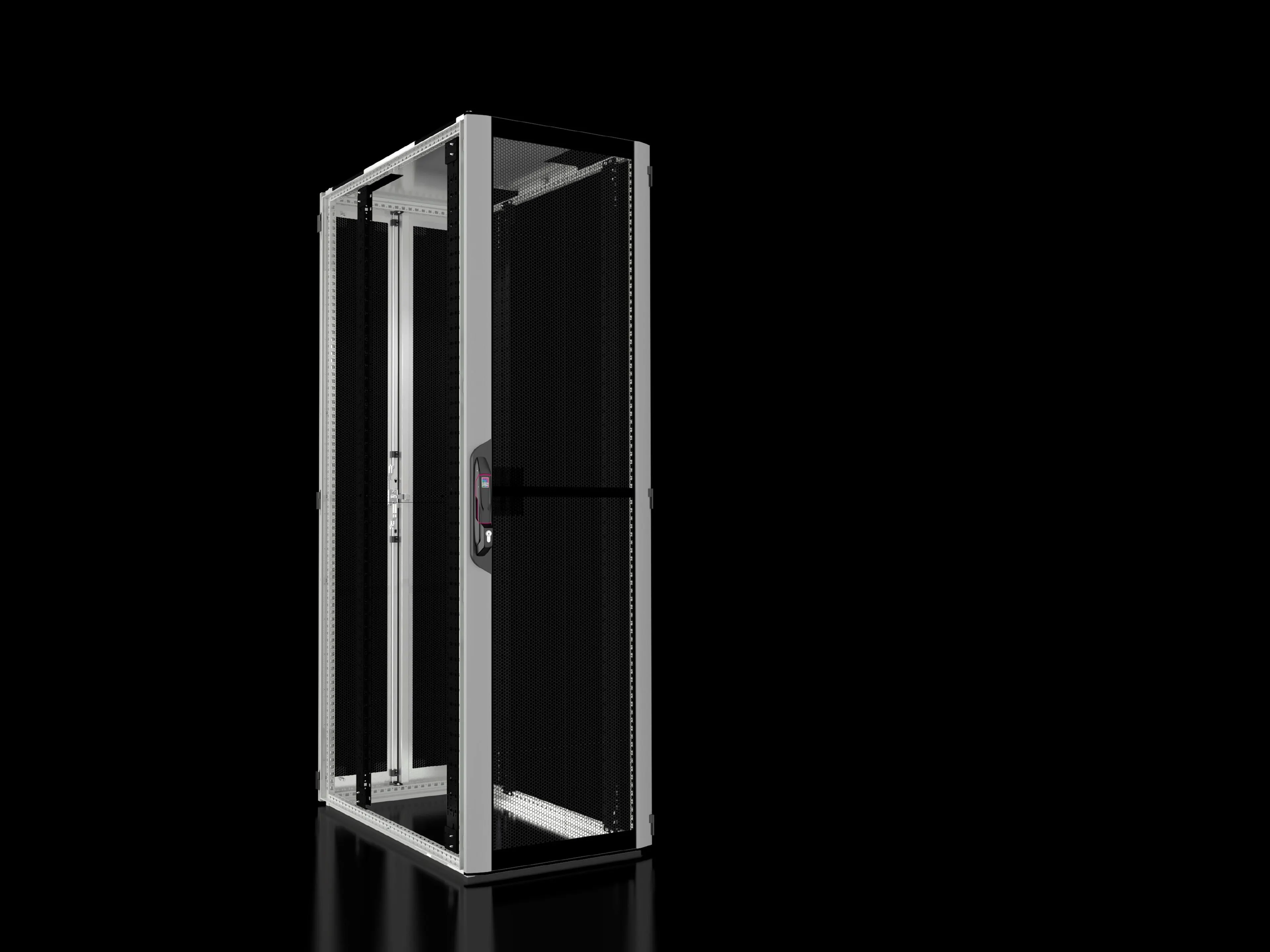

Rittal VX 5313.113 IT Enclosure - 47U, Vented
Part Number: 5313113
Quick Summary
VX IT enclosure is a robust 19" data cabinet designed for room climate-controlled IT spaces. Engineers often struggle with airflow management, cable routing, and tight installation footprints in dense rack environments. This VX 5313.113 model delivers front and rear venting, 47U of mounting space, and a 600 x 2200 x 1000 mm footprint, while UL 2416 compliance and ETIM EC002499 along with ECLASS 27180207 classifications support reliability and procurement. By combining standard 482.6 mm (19") mounting angles with durable materials and modular doors, it enables scalable configurations for data centers, manufacturing IT rooms, and telecom closets. A predictable total cost of ownership is achievable with this well-designed, climate-conscious enclosure.
Product Information
Extended Description
5313113 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 1000 mm, 47 U
Article number
VX 5313.113
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,000 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
84.6 kg
PCF per pack (cradle-to-gate)
208.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945296
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 1000 mm, 47 U
Feature: Standard 482.6 mm (19") mounting angles provide universal rack compatibility. Business impact: Simplifies equipment mix, accelerates installation, and reduces customization costs. Application: Data centers and industrial IT rooms where varied devices share a single cabinet. Feature: Front and rear vented doors with approximately 85% perforation support improved airflow and passive cooling. Business impact: Lower energy use for cooling and more stable operating temperatures for servers and controllers. Application: Dense IT racks and automation closets with heat dissipation concerns. Feature: 47U total height with 600 mm width and 1000 mm depth delivers ample mounting space. Business impact: Enables multi-rack, multi-vendor configurations without overbuilding. Application: Telecom closets, control cabinets, and network server areas. Feature: Front aluminium/sheet steel doors and rear sheet steel door with 180° hinges optimize access and serviceability. Business impact: Faster maintenance cycles and reduced downtime. Application: Regular electrical and network equipment servicing in industrial settings. Feature: Robust construction using sheet steel and aluminum, plus open base design. Business impact: Strong, vibration-resistant mounting for heavy automation gear while allowing efficient cable routing. Application: Industrial automation cabinets and data-center-adjacent enclosures. Feature: Compliance indicators and environmental data, including UL 2416 load validation and ECO metrics (PCF) with 208.4 kg CO2 eq per pack. Business impact: Clear reliability and sustainability metrics support governance and lifecycle planning. Application: Corporate sustainability reporting and procurement audits.
Get a Quick Quote for a Rittal 5313113
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5313113?
Enquire Now
FAQs
The enclosure measures 600 mm wide, 2,200 mm high, and 1,000 mm deep, delivering 47 U of mounting space. It uses standard 482.6 mm (19") mounting angles front and rear, allowing straightforward integration with common 19" rack equipment and rails, while preserving ample clearance for cable routing and airflow.
Yes. The 482.6 mm (19") mounting angles are standard in the VX IT series and are screw-fastened to the frame at the top and bottom. This provides secure, tool-friendly installation and straightforward replacement or reconfiguration of internal equipment without modifying the frame.
The front and rear doors are vented with approximately 85% perforation, designed for balanced airflow through the enclosure. This supports passive cooling and reduces reliance on active cooling, which lowers energy consumption and helps maintain stable operating temperatures for servers, controllers, and other heat-generating devices.
The VX 5313.113 includes UL 2416 load validation, indicating robust static-load performance. It also lists ETIM EC002499 and ECLASS 8.0 27180207 classifications, which streamline procurement, product data interoperability, and cross-system compatibility within industrial automation ecosystems.
With its rugged sheet steel and aluminum construction, front/rear access and 19" mounting compatibility, maintenance cycles are streamlined, reducing downtime. The enclosure supports efficient passive cooling and scalable configurations, which lower ongoing energy use and capital expenditure over the equipment lifecycle, aligning with long-term ROI goals for data centers and plant IT rooms.
