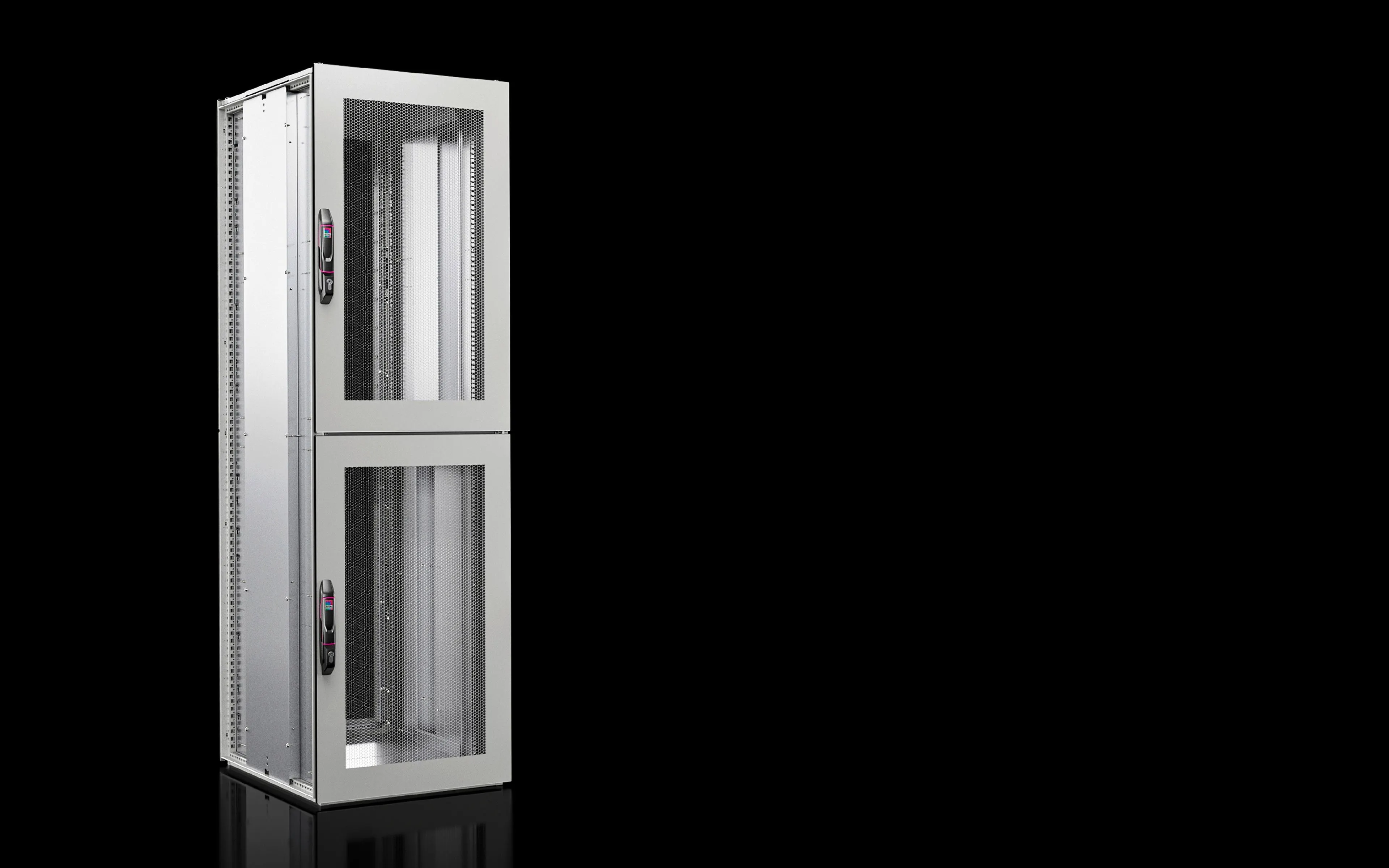

Rittal VX 5313.175 VX IT Compartment Rack - 2x23U vented
Part Number: 5313175
Quick Summary
The VX IT Compartment Rack provides secure, dual‑compartment enclosure for IT and control gear. Shared enclosures often force compromises on cabling layout and access control, leading to downtime and maintenance headaches. It supports CE conformity and industry classifications (ETIM EC002499, ECLASS 27180207) for procurement and interoperability. Designed for scalable IT and industrial control deployments, it helps simplify installation, improve airflow, and reduce total cost of ownership, while delivering robust modularity for reliable rack mounting in modern data centers and automation environments.
Product Information
Extended Description
5313175 Rittal: VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5313.175
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 2 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with two independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | 2 sheet steel doors, vented, front and rear | Gland plate divided in the centre, pre-configured across the entire rack depth | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 4 keys
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,000 mm
Distance between levels as delivered
740 mm
Number front doors
2
Number back doors
2
482.6 mm (19") attachment
2 x 23 U
Installation of PDU vertically in the rear area
Vertical PDU with IEC C20 connection (max. length of PDU 1000 mm), Model No. 7979.117/.118/.217/.317/.417
Design
Compartment Rack, 2 x 23 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into two, vented
Front door design
divided into two, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
2 x 23 U
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950054
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Two independent compartments with 19\" mounting angles front and rear (482.6 mm rails), adjustable independently, enable separate configuration and secure cabling for IT and control systems, reducing cross-talk and maintenance time while supporting compliant, modular installations in industrial enclosures. This layout is ideal for applications requiring distinct access control and cabling paths, such as mixed IT/OT deployments or shared data rooms. The vented front and rear doors per compartment improve thermal management, lowering cooling costs and minimizing equipment hotspots in high-density racks, a critical factor for uptime in automation environments. Construction uses sheet steel with a durable RAL 7035 frame and panels and RAL 9005 interior finish, ensuring long‑life protection in harsh facilities. These design choices support easy upgrades and future expansion without sacrificing organization or airflow.
Get a Quick Quote for a Rittal 5313175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5313175?
Enquire Now
FAQs
Installation begins with securing the two independent compartments using the 19" mounting angles at both front and rear. Install the center gland plate and route cabling through the divided gland areas before mounting IT and control devices. A vertically mounted rear PDU (IEC C20) can be fitted up to 1000 mm, with access maintained via the vented doors for each compartment. Ensure proper earthing and use the pull-out base for service access, then verify door opening angles and cable bend radii align with your installation standards.
Each of the two compartments includes 482.6 mm (19") mounting rails front and rear, with two 23 U levels per compartment. The rails are independently adjustable, allowing different equipment heights to be accommodated within the same enclosure. This arrangement supports mixed equipment inventories, simplifies upgrades, and maintains consistent hardware alignment for reliable hot-swapping and serviceability in production or data floor environments.
Yes. The VX IT Compartment Rack is specifically designed for two physically independent installation compartments, enabling separate access control and independent cabling. This setup reduces cross‑access risk and simplifies maintenance when IT and control gear share a single enclosure. With vented doors on both sides per compartment and central gland plates, it supports clean separation of power and data paths while providing scalable, modular growth for evolving automation architectures.
The enclosure aligns with CE conformity and follows industry classifications such as ETIM EC002499 and ECLASS 8.0 27180207 for procurement and interoperability. While exact IP or SIL ratings aren’t specified in this data sheet, the robust sheet‑steel construction, vented doors, and defined mounting standards reflect common European enclosure practices designed to support compliant installations in industrial automation and IT environments.
The independent compartments simplify cabling management, reducing troubleshooting time and improving uptime. Independent cabling paths, pull-out base design for service access, and central PDU installation options streamline routine maintenance and upgrades, lowering total cost of ownership. The dual‑compartment layout also supports future capacity growth without needing a new enclosure, delivering a favorable return on investment through extended hardware life and easier scalability.
