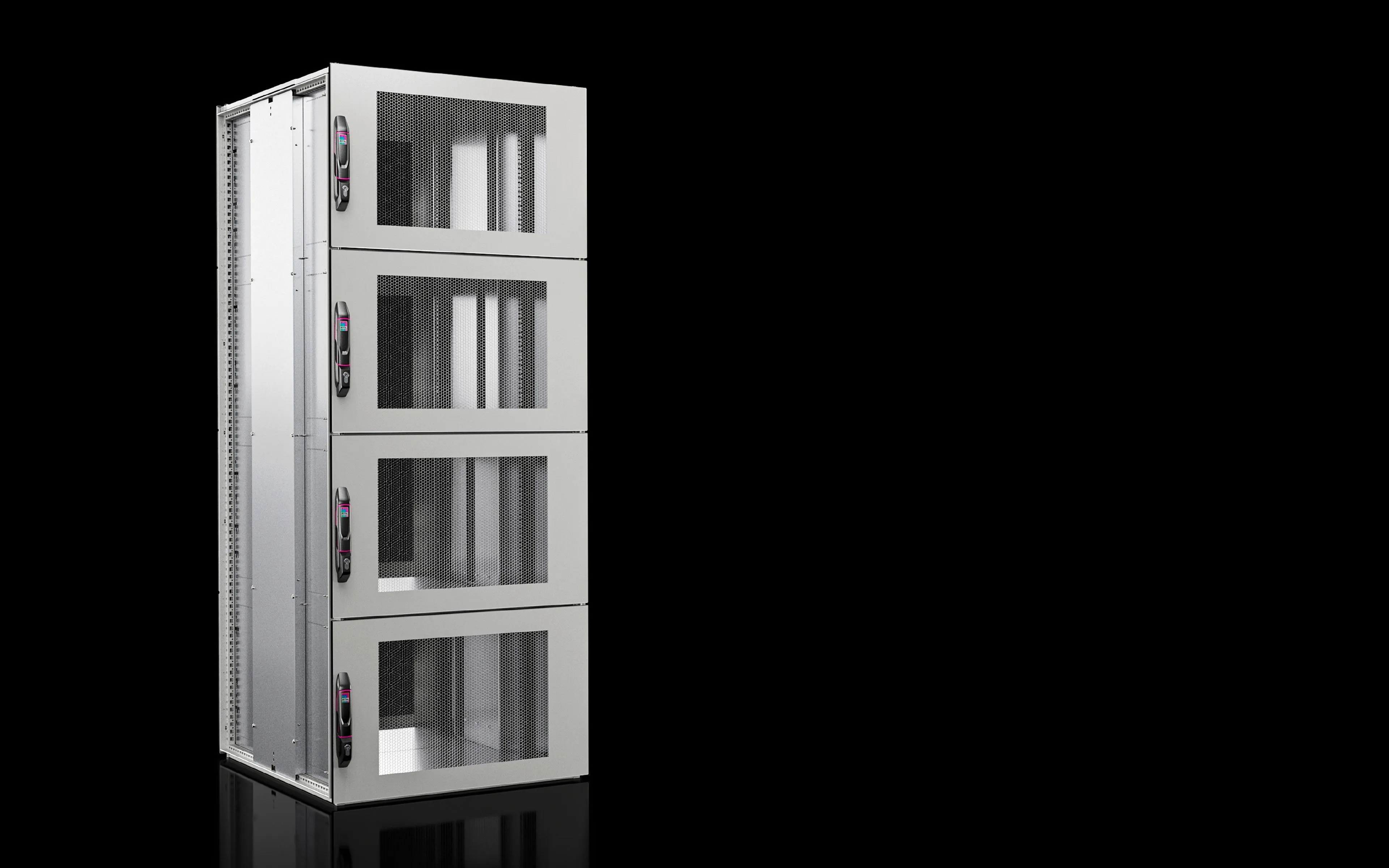

Rittal VX 5313.185 VX IT Compartment Rack - 4 x 11U
Part Number: 5313185
Quick Summary
The VX IT Compartment Rack provides modular, ventilated enclosure space for independent IT and electrical installations in industrial facilities. This design addresses the common pain point of coordinating multiple teams and cables within a shared cabinet, which can lead to downtime and cross-talk. While the data does not specify SIL, CE or IP ratings, the enclosure uses robust sheet steel construction and vented doors to support rugged operation and safe access. It also leverages independent compartment configuration and standardized 19-inch mounting angles to deliver scalable IT/control integration and cost-effective maintenance for evolving plant needs.
Product Information
Extended Description
5313185 Rittal: VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5313.185
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 4 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with four independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | Gland plate divided in the centre, pre-configured across the entire rack depth | 4 sheet steel doors, vented, front and rear | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 8 keys
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,000 mm
Distance between levels as delivered
740 mm
Number front doors
4
Number back doors
4
482.6 mm (19") attachment
4 x 11 U
Design
Compartment Rack, 4 x 11 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into four, vented
Front door design
divided into four, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950061
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Feature: Four independent compartments with vented doors front and rear. Business Impact: Enables separate teams to configure and cable each zone without interference, improving airflow and reducing cross-cabling risk. Application: Ideal for manufacturing lines and data-intensive automation projects where IT and control hardware share a cabinet. The VX IT Compartment Rack supports independent installation, minimizing downtime during upgrades and reconfigurations. Feature: Front and rear 482.6 mm (19") mounting angles per compartment, adjustable independently. Business Impact: Accelerates deployment and simplifies cable routing by providing clearly defined slots per compartment. Application: Suitable for equipment with 11 U slots requiring precise alignment and easy access for maintenance. Feature: Ventilated front and rear doors with a one-piece roof plate and centralized cable entry. Business Impact: Improves thermal management and reduces hot spots in dense server and controller stacks. Application: Effective in environments with restricted air flow or where heat dissipation is a concern. Feature: Central gland plate, pre-configured dividers, and a pull-out base frame. Business Impact: Streamlines installation, grounding prep, and service access while maintaining cabinet integrity. Application: Supports robust grounding and EMI control in automated systems. Feature: Base materials, finishes, and color scheme (RAL 7035/9005) plus robust sheet steel construction. Business Impact: Delivers durable, corrosion-resistant enclosures that endure harsh plant conditions, extending service life and reducing replacement costs. Application: Long-term investment for industrial automation cabinets and process control enclosures. Feature: Supplied with 8 keys and earthing strap preparation. Business Impact: Enhances security and electrical safety, enabling controlled access and safe maintenance. Application: Multi-user environments with strict access policies.
Get a Quick Quote for a Rittal 5313185
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5313185?
Enquire Now
FAQs
Each of the four compartments includes 19-inch mounting angles front and rear, with independent adjustment (482.6 mm level), enabling precise alignment of rack-mounted equipment and clean cable routing. This design supports scalable configurations across mixed IT and automation gear with consistent spacing and accessibility.
The unit uses a central gland plate, divided compartments, and vented front and rear doors along with integrated air baffles to promote uniform airflow and minimize hotspots. The one-piece roof plate also includes a central cable entry, simplifying cabling while preserving thermal performance in dense installations.
Yes. The rack is designed with four separate compartments that can be accessed independently, supporting multi-user access control scenarios. This structure helps apply role-based access while maintaining security and reducing cross-contamination between IT and automation gear.
The VX 5313.185 aligns with ETIM 9 EC002499 and ECLASS 8.0 27180207 classifications. It is associated with EAN 4028177950061 for procurement, and uses standard RAL 7035 exterior with RAL 9005 interior accents, supporting consistent corporate color schemes and documentation.
Plan for a WHD of 600x2200x1000 mm, 4 x 11U mounting per compartment, and 482.6 mm (19”) level front and rear. Ensure depth and mounting angle compatibility with your equipment, and verify grounding strap preparation and security locking as part of the pre-configured base. This helps minimize on-site adjustments and speeds up commissioning.
