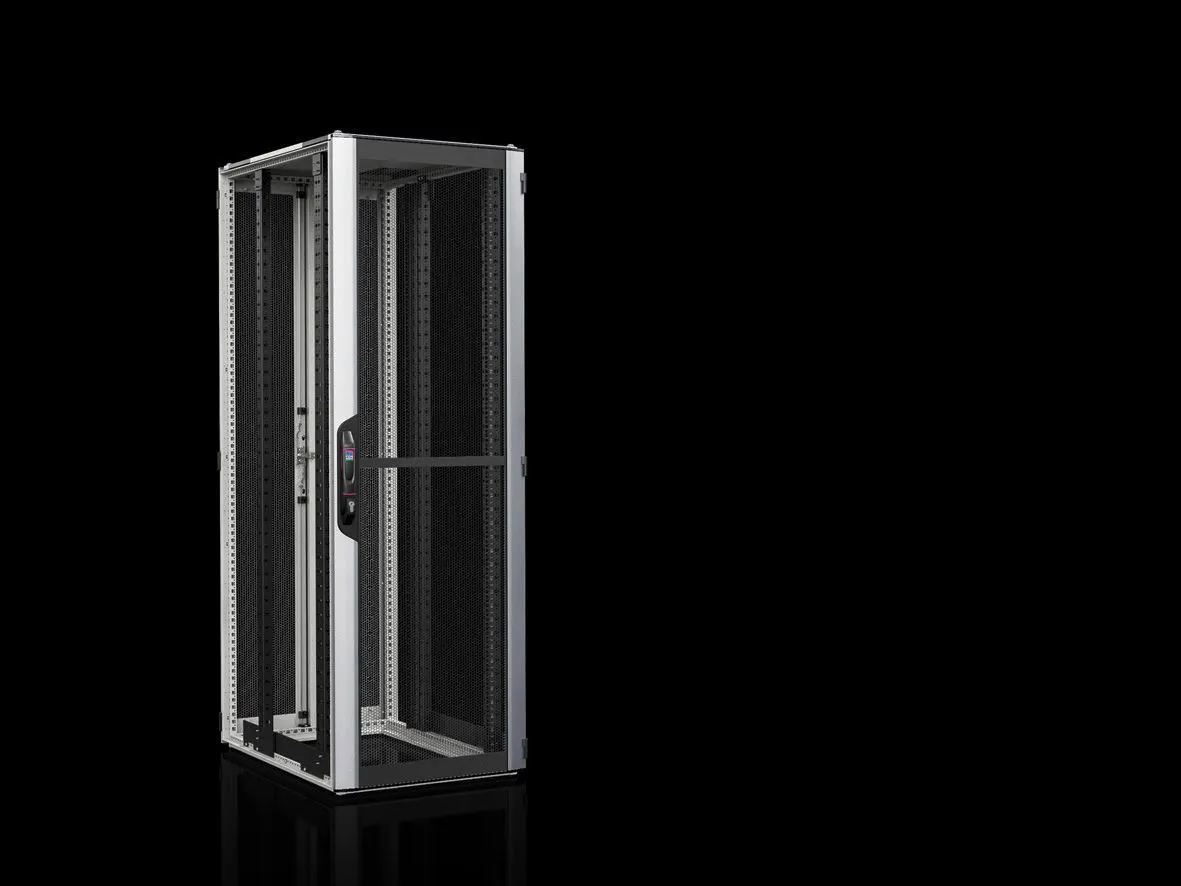

Rittal VX 5313.813 IT Enclosure - 47U Ventilated
Part Number: 5313813
Quick Summary
The VX IT enclosure provides rugged 19" IT rack housing for data centers and network rooms. Engineers often struggle with heat buildup, space constraints, and cable management; this enclosure improves cooling airflow with vented front and rear panels and depth-variable 482.6 mm mounting angles. Key standards accompany the design, including UL 2416 static load compliance, plus ETIM EC002499 and ECLASS 27180207 classifications to simplify procurement and integration. The 47 U capacity supports dense server, switch, and patch-panel configurations, while the modular mounting and passively cooled roof options support efficient airflow and serviceability. This combination delivers faster deployment, lower maintenance costs, and scalable, future-proof IT infrastructure for growing data centers and edge deployments. Partnering with Rittal VX IT also helps ensure future-ready infrastructure with predictable spare parts and straightforward upgrades.
Product Information
Extended Description
5313813 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2200 x 1000 mm, 47 U
Article number
VX 5313.813
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,000 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 213 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
700 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
dynamic
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
89 kg
PCF per pack (cradle-to-gate)
219.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945302
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 600 x 2200 x 1000 mm, 47 U
The VX IT enclosure uses 19" dynamic mounting angles at the front and rear, enabling quick, precise installation and reliable, repeatable rack alignment across deployments. This translates to reduced field errors and faster time-to-value when expanding IT cabinets in data centers and telecom rooms. Ventilated front and rear doors provide approximately 85% perforation, which improves cooling efficiency, reduces hotspot formation, and lowers fan speeds for meaningful energy savings in high-density racks. With a capacity of 47 U in a 600×2200×1000 mm footprint, it consolidates equipment and minimizes the footprint required for growing IT ecosystems, while front and rear 482.6 mm rails support scalable configurations and clean cable management. The robust construction uses sheet steel with an aluminium front door, finished to RAL 7035, offering long service life in challenging environments and straightforward maintenance. A multi-piece roof with corner cable entries enables efficient passive cooling and tidy cable routing, minimizing airflow disruption. The enclosure supports heavy equipment thanks to an 18,000 N load rating (15,000 N static to UL 2416) and 180° door hinges for maximum access during maintenance. Spacers, height-adjustable 50 mm, and 12×482.6 mm fasteners plus 25 multi-tooth screws are included to simplify field installation and ensure reliable performance. The packaging uses an IPPC pallet, and the PCF of 219.3 kg CO2 eq (Cat B) supports responsible sourcing and lifecycle planning. This combination gives IT teams a scalable, durable solution that balances performance, cost of ownership, and sustainability in rugged environments.
Get a Quick Quote for a Rittal 5313813
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5313813?
Enquire Now
FAQs
VX 5313.813 is designed for standard 19" IT gear with front and rear 19" rails. It ships with 12 fasteners for the 482.6 mm (19") level and 25 multi-tooth screws, and includes mounting angles to Position rails at both the top and bottom. This ensures straightforward, repeatable installation and reliable alignment across multiple racks in data centers and telecom rooms.
The enclosure supports up to 18,000 N load capacity, with a static rating of 15,000 N per UL 2416. Ventilated front and rear doors provide ample airflow (approx. 85% perforated), supporting high-density equipment with reduced cooling fan loads. The roof design also accommodates cable entry for passive cooling, aiding thermal management in dense deployments.
Yes. The VX IT enclosure is tailored for data centers, edge compute, and telecom rooms, offering 47 U of space, 600×2200×1000 mm WHD, and dynamic 19" mounting angles front and rear. Its robust construction, vented panels, and flexible mounting support scalable rack layouts while maintaining serviceability in mission-critical IT environments.
Key compliance references include UL 2416 for static load, along with ETIM 9 EC002499 and ECLASS 8.0 27180207 classifications to align with procurement and data-center IT enclosure standards. The product also carries an EAN (4028177945302) for traceability, and CE/other certifications are typically addressed in manufacturer documentation for regional markets.
The package includes essential hardware such as 12 x 482.6 mm fasteners and 25 multi-tooth screws, plus spacers for height adjustment, reducing field labor and risk. With a weight per pack of 89 kg and PCF of 219.3 kg CO2 eq (Cat B), the enclosure offers predictable lifetime costs and a clear basis for lifecycle planning and environmental impact assessments.
