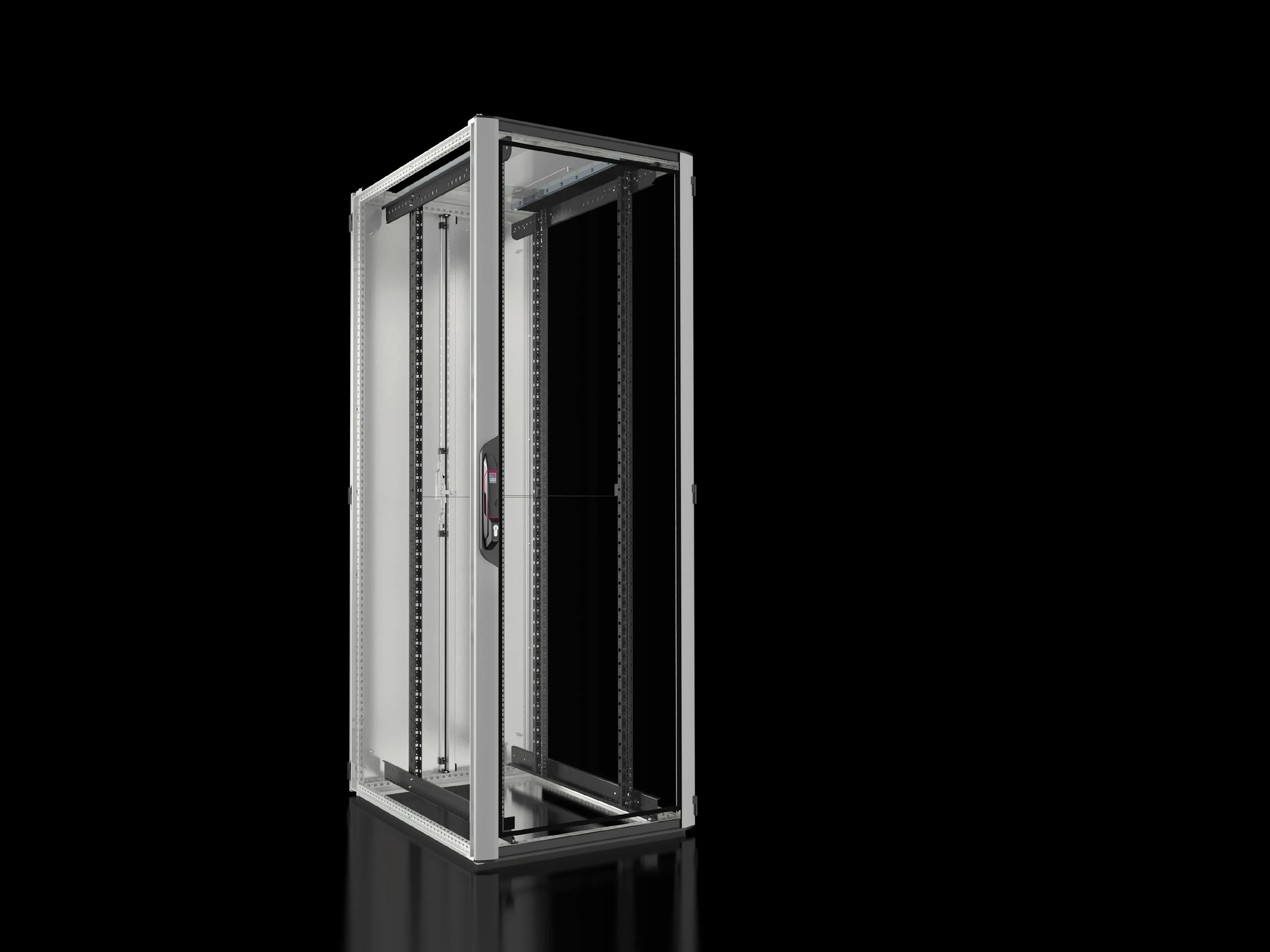

Rittal VX 5314.126 VX IT Network Enclosure - IK08
Part Number: 5314126
Quick Summary
Rittal VX 5314.126 VX IT Network Enclosure is a secure 19" cabinet for IT and network gear in data centers. Engineers often struggle with cramped space, poor airflow, and complex cable routing inside shared enclosures. Key certifications include IK08 impact protection and UL 2416 compatibility, backed by CE manufacturing practices for European markets. The design supports flexible 19" mounting, front and rear access, and passive cooling options to reduce energy costs. This enclosure integrates with standard IT cabinets and is ideal for industrial data applications.
Product Information
Extended Description
5314126 Rittal: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2200 x 1000 mm, 47 U
Article number
VX 5314.126
Material
Sheet steel | Aluminium | Glazed door: Single-pane safety glass, 3 mm
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Glazed aluminium door at the front, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate | Sheet steel rear door, solid, vertically divided, 180° hinges
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,000 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 193 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
Standard
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, solid, vertically divided, 180° hinges
Front door design
Glazed aluminium door, solid, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
IK Code
IK08
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
115 kg
PCF per pack (cradle-to-gate)
283.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945326
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 2200 x 1000 mm, 47 U
Feature: 19" mounting angles, front and rear; Business impact: simplifies installation and future expansion, reducing downtime; Application: data centers and telecom closets with modular rack layouts. Feature: 47 U capacity; Business impact: maximizes equipment density in a single cabinet, cutting footprint and wiring complexity; Application: high-density IT and control system racks. Feature: Glazed front aluminium door; Business impact: enables monitoring without frequent door openings, improving security and environmental control; Application: server rooms with visibility requirements. Feature: Heavy-duty frame from sheet steel with powder-coated rear/roof and anodised front; Business impact: enhances durability in harsh environments, lowering maintenance costs; Application: industrial automation and outdoor-adjacent data zones. Feature: Roof plate prepared for fan mounting; Business impact: enables efficient passive/active cooling without redesign, saving energy; Application: enclosed IT and network gear in warm facilities. Feature: 482.6 mm (19") mounting angles; Business impact: consistent, compliant rack alignment; Application: standard 19" equipment installations across multiple bays. Feature: Integrated spacers and conductive fasteners; Business impact: ensures proper grounding and airflow, reducing EMI concerns; Application: equipment with sensitive electronics and cable management needs.
Get a Quick Quote for a Rittal 5314126
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5314126?
Enquire Now
FAQs
To install the VX IT enclosure, mount the 482.6 mm (19") angles at front and rear as specified, secure with the included 12 x 482.6 mm fasteners, and install spacers to elevate the cover plate for any passive cooling components. The front glazed door provides quick visual access, while the rear solid door enables convenient cable routing. This configuration supports immediate rack integration with standard 19" equipment.
The VX 5314.126 supports up to 15,000 N load capacity with a static limit around 12,000 N per UL 2416, and it carries IK08 impact protection. These specs ensure robust mechanical integrity for dense server configurations while maintaining structural safety under seismic or vibration conditions typical in industrial settings.
Yes. With 47 U of internal space, front and rear 19" mounting, glazed front door for monitoring, and compatibility with passive cooling accessories, the VX IT enclosure is well-suited for data center servers, networking gear, and industrial control panels requiring reliable climate control and organized cable management.
The enclosure features IK08 protection, UL 2416-compatible load ratings, and CE-compliant manufacturing practices. These certifications support safe, compliant deployments in European markets and provide assurance for mechanical durability and electrical safety in demanding environments.
The standard 19" mounting angles, integrated spacers, and prepped roof plate for fan mounting simplify initial setup and future cooling upgrades, reducing installation time and service interruptions. Durable sheet steel construction lowers maintenance needs, while modular connectivity and cable entry options improve ongoing organization and fault isolation, delivering a lower total cost of ownership.
