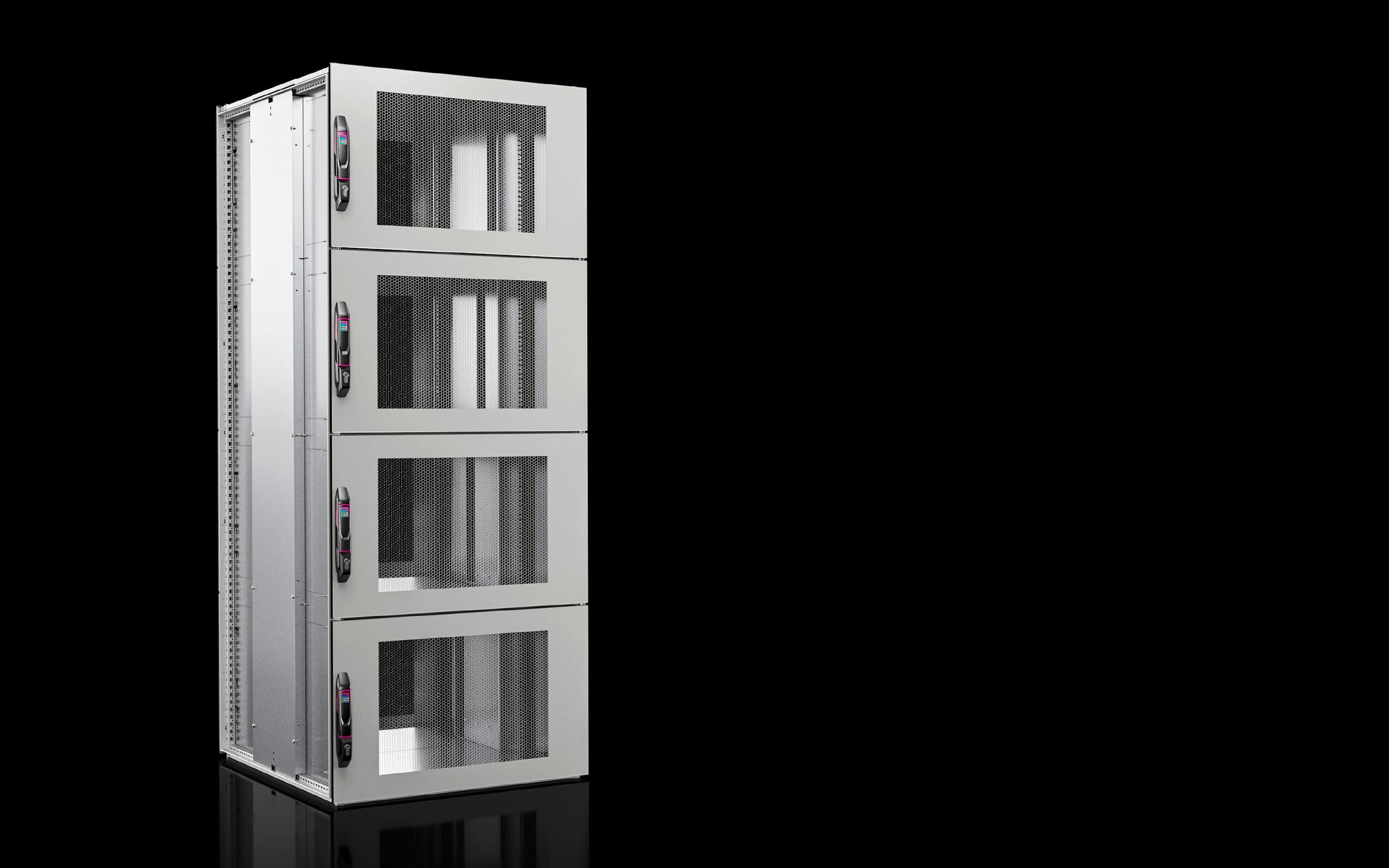

Rittal VX 5314.185 VX IT Compartment Rack - 4 Compartments
Part Number: 5314185
Quick Summary
Rittal VX 5314.185 VX IT Compartment Rack isolates four IT compartments in a shared enclosure. Engineers often struggle with cross-cabling and maintaining separate access in multi-application cabinets. Designed to support common industry standards such as CE marking, IP-rated door protection, and SIL-ready configurations where applicable. This modular enclosure enables independent cable routing and configuration of each compartment, delivering scalable IT infrastructure with improved security and faster deployment. In practice, it reduces integration time, simplifies maintenance, and supports future upgrades while aligning with your branding and facility requirements through adjustable mounting angles and standardized 19" hardware.
Product Information
Extended Description
5314185 Rittal: VX IT Compartment Rack, vented, 4 compartments, 4 x 11 U, WHD: 800x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5314.185
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 4 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with four independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | Gland plate divided in the centre, pre-configured across the entire rack depth | 4 sheet steel doors, vented, front and rear | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 8 keys
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,000 mm
Distance between levels as delivered
740 mm
Number front doors
4
Number back doors
4
482.6 mm (19") attachment
4 x 11 U
Design
Compartment Rack, 4 x 11 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into four, vented
Front door design
divided into four, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950085
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 4 compartments, 4 x 11 U, WHD: 800x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Independent four-compartment design enables true separation of power, data, and control modules, reducing cross-talk and enhancing security across applications. This translates to lower risk of interference and easier governance for multi-tenant IT environments, data centers, or industrial automation cabinets. The enclosure ships with 482.6 mm (19") mounting angles front and rear, adjustable per compartment, delivering flexible rack configuration and faster installation without custom fabrication. Ventilated front and rear doors preserve airflow, supporting thermal management in compact spaces and improving equipment longevity. A central gland plate and depth-configured dividers simplify cable routing while maintaining clean, serviceable layouts. Roof entry on both sides provides versatile cable ingress, reducing field wiring complexity and enabling above- or below-rloor installation strategies. The base frame includes a pull-out feature and integrated air baffles to optimize cooling and maintenance access. Materials and finish—sheet steel construction, RAL 7035 finish and RAL 9005 accents—blend durability with appearance across industrial environments. The kit includes two 482.6 mm mounting angles per compartment, eight keys, and earthing preparation for reliable grounding, supporting compliance and reducing installation rework. This VX IT Rack is well-suited for manufacturing, data rooms, and automation panels where separate access groups and robust cabling are essential for uptime and security.
Get a Quick Quote for a Rittal 5314185
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5314185?
Enquire Now
FAQs
The VX 5314.185 supports four independent 11 U compartments, each with front and rear 19" mounting angles. It features a pull-out base, a center gland plate, and depth-variable mounting angles, enabling above- or below-rack cable routing and flexible site deployment in shared enclosures.
Each compartment includes vented front and rear doors and integrated air baffles to optimize cooling. The roof is a one-piece plate with central cable entry on both sides, while a central gland plate simplifies centralized cabling. These features reduce thermal hotspots and simplify routine maintenance.
Yes. Its four independent compartments, 4 x 11 U each, and separate cabling allow IT equipment, control systems, and instrumentation to reside in the same enclosure without cross-interference, while independent access control supports multi-user environments and enhanced security.
The enclosure footprint is 800 mm wide, 2,200 mm high, and 1,000 mm deep. It uses 19" mounting angles (front and rear) with 482.6 mm levels, ensuring compatibility with standard 19" racking and straightforward integration into existing data and control cabinets.
Modular four-compartment design simplifies scaling and upgrades, reducing downtime during expansions. Features like the pull-out base, centralized gland plate, and vented doors streamline maintenance, while robust sheet-steel construction and finish provide long-term durability—lowering lifecycle costs and improving total cost of ownership.
