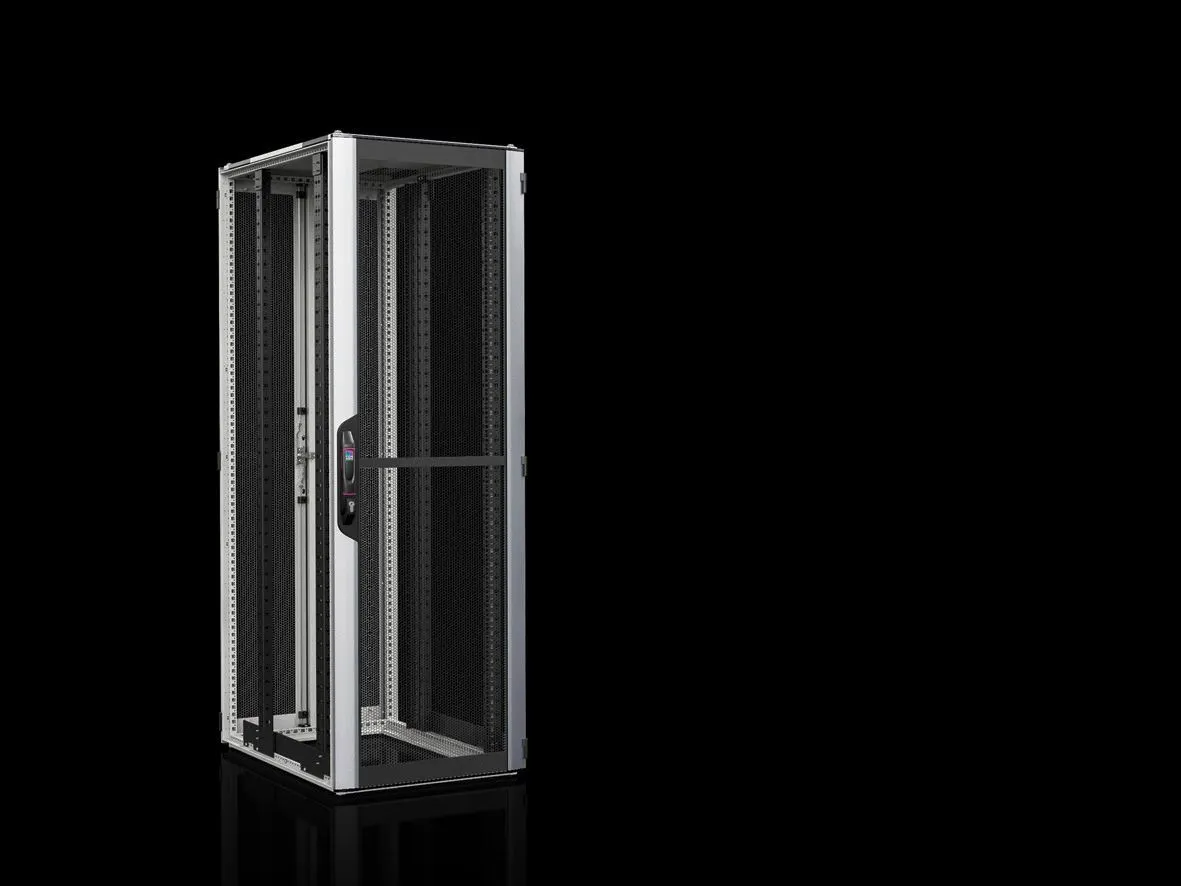

Rittal VX 5314.816 VX IT Enclosure - 47U Dynamic Vented
Part Number: 5314816
Quick Summary
Rittal VX IT enclosure securely houses IT hardware in data centers and industrial environments. This enclosure provides robust 19-inch mounting angles and a vented design to manage airflow and cable routing in confined rooms. Engineers often struggle with hot spots, limited mounting space, and difficult access to rear equipment—this VX IT solution addresses those pain points with front and rear access, plus depth-variable mounting options. The design aligns with UL 2416-rated load performance, and the enclosure uses a durable mix of sheet steel and aluminium with durable powder and spray finishes, while ETIM and ECLASS classifications support accurate procurement data. With 47 U capacity and vented doors, it supports scalable deployments while delivering reliable cooling and serviceability.
Product Information
Extended Description
5314816 Rittal: VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 800 x 2200 x 1000 mm, 47 U
Article number
VX 5314.816
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated), vertically divided, 180° hinges | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Dimensions
Width: 800 mm | Height: 2,200 mm | Depth: 1,000 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
87 mm / 213 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
700 mm
482.6 mm (19") attachment
on depth stays, screw-fastened at the top and bottom
Design
dynamic
Roof design
multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
Dynamic 482.6 mm (19") mounting angles in the VX IT
Base design
Open
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
18,000 N
Max. load capacity (static) per enclosure to UL 2416
15,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
105 kg
PCF per pack (cradle-to-gate)
258.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177945340
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, dynamic, front and rear, vented, WHD: 800 x 2200 x 1000 mm, 47 U
47 U, 800x2200x1000 mm footprint delivers maximum rack density in a single enclosure, enabling efficient space planning and reducing cabinet sprawl in IT rooms. This space advantage translates to lower facility footprint, easier cabling, and improved airflow management for critical equipment. The front and rear vented doors with approximately 85% perforation optimize cooling performance, helping to prevent hot spots and extend component life in demanding environments. Dynamic 482.6 mm (19") mounting angles provide installation flexibility, allowing depth-adjustable configurations and simpler upgrades without removing the cabinet from the floor. A robust load rating of 18,000 N supports heavy servers and network gear while maintaining structural integrity; static rating up to 15,000 N per UL 2416 ensures可靠 performance under peak loads. Roof plate is prepared for a fan mounting plate and spacers (50 mm) are supplied to raise a cover plate for passive cooling, improving energy efficiency by enhancing natural convection. The enclosure uses a durable material mix (sheet steel with aluminium components) and finishes designed for operational longevity and corrosion resistance, while the included rails, screws, and spacers streamline installation and future maintenance. Overall, the VX IT enclosure delivers a modular, service-friendly solution that reduces downtime, simplifies upgrades, and aligns with enterprise IT and industrial automation environments.
Get a Quick Quote for a Rittal 5314816
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5314816?
Enquire Now
FAQs
VX 5314.816 includes 12 x 482.6 mm (19") fasteners and mounting angles designed for 19" equipment. The unit provides 87 mm of free mounting space at the front and rear and features 700 mm between levels, ensuring compatible spacing for standard 19" racks and accessories.
The enclosure supports up to 18,000 N load capacity, with a static rating up to 15,000 N per UL 2416, ensuring structural integrity for dense server deployments. Front/rear venting and a roof plate prepared for a fan mounting plate enable proactive cooling, while spacers permit passive cooling enhancements.
Yes. At 800 mm wide, 2,200 mm high, and 1,000 mm deep (47 U), with vented doors and 19" mounting angles front and rear, it is well-suited for data centers and industrial IT rooms requiring robust airflow management, secure access, and scalable expansion.
The product data references UL 2416 for load performance, and includes ETIM 9 (EC002499) and ECLASS 8.0 (27180207) classifications for procurement data. Specific CE or IP certifications are not listed in the provided data, so verify with the supplier for your regional compliance requirements.
Durable materials (sheet steel with aluminium components), front/rear access, and a design prepared for future cooling upgrades (fan mounting, spacers) minimize downtime during maintenance and upgrades. The 47 U capacity and standardized mounting reduce cabinet sprawl, while UL 2416-rated strength assures long-term reliability in demanding environments, contributing to lower total cost of ownership.
