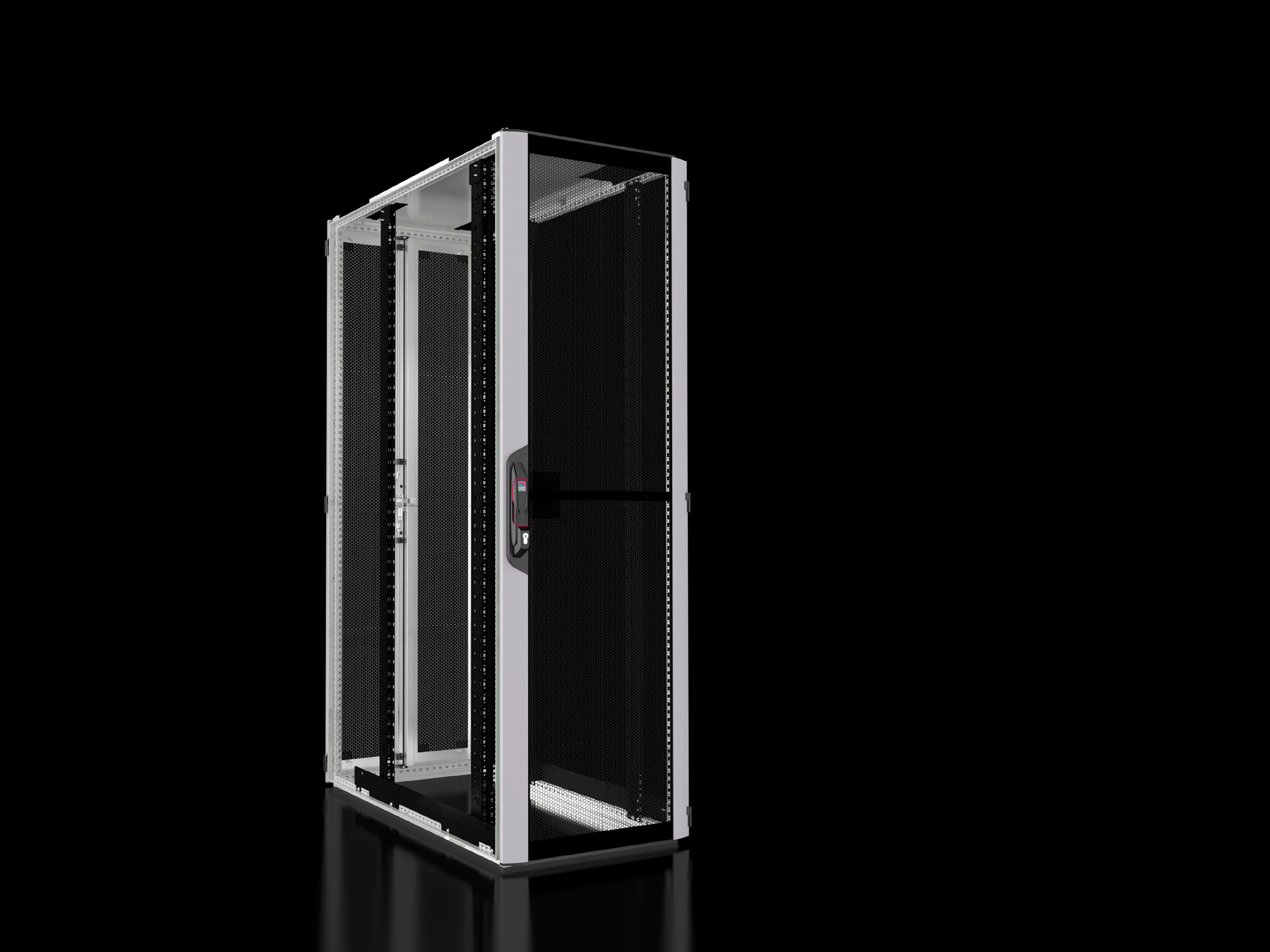

Rittal VX 5315.118 VX IT Enclosure - 19\" mounting angles
Part Number: 5315118
Quick Summary
Rittal VX 5315.118 VX IT enclosure is a vented 19-inch rack enclosure designed for IT networking gear in data centers and server rooms. This solution addresses heat buildup and airflow challenges by providing front and rear ventilation and 47U of mounting space. Typical certifications for IT enclosures include CE marking, UL/ULc readiness, and IP ratings to protect sensitive equipment; verify exact certifications for this variant. With 600 x 2200 x 1200 mm WHD and 19-inch mounting angles, it supports scalable deployments while maintaining organized cable management. The design also delivers reliable grounding and robust construction, offering a balance of performance, ease of installation, and total cost of ownership improvement for enterprise IT infrastructure. It integrates with standard IT cabinets, offering straightforward retrofit and compatibility with existing 19" equipment, cables, and power distribution units.
Product Information
Extended Description
5315118 Rittal: VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 1200 mm, 47 U
Article number
VX 5315.118
Design
Standard | Vented | with 482.6 mm (19") mounting angles
Material
Sheet steel | Aluminium
Surface finish
Enclosure frame: Dipcoat-primed | Interior installation: Spray-finished | Rear door and roof: Dipcoat-primed, powder-coated | Front door: Aluminium, anodised/spray-finished
General colour
RAL 7035
Colour
Enclosure frame, rear door and roof: RAL 7035 | Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005 | Interior installation, vent grille at the front: RAL 9005 | Handle and hinges: RAL 9005
Supply includes
VX enclosure frame with doors and roof plate | Aluminium/sheet steel door at the front, vented (vented surface area approx. 85% perforated), 180° hinges | Sheet steel rear door, vented (vented surface area approx. 85% perforated) | Lock front and rear: Comfort handle for profile half-cylinders and security lock 3524 E | Mounting angles, 482.6 mm (19") | Spacers, height 50 mm, to raise a cover plate above the fan cut-out in the roof plate, for passive cooling (supplied loose). Not required for variants without a cut-out. | 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose) | 25 multi-tooth screws, conductive (supplied loose) | IPPC pallet | Roof plate, multi-piece, with cable entry in the corner sections front and rear | Sheet steel rear door, vented, vertically divided, 180° hinges
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,200 mm
Units
47 U
Units
47 U
Free mounting space to the 482.6 mm (19") level, front/rear
150 mm / 330 mm
Mounting position of the 482.6 mm (19") level
front and rear
Distance between levels as delivered
720 mm
482.6 mm (19") attachment
with mounting bracket screw-fastened to the frame at the top and bottom
Design
Standard
Roof design
multi-piece, with cable entry in the corner sections front and rear
Rear door design
Sheet steel door, vented, vertically divided, 180° hinges
Front door design
Aluminium/sheet steel door, vented, one-piece, 180° hinges
Mounting angle design
482.6 mm (19") mounting angles, standard in the VX IT
Base design
Open
482.6 mm (19") level(s) version
front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Load capacity
15,000 N
Max. load capacity (static) per enclosure to UL 2416
12,000 N
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
85.1 kg
PCF per pack (cradle-to-gate)
209.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177945364
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT, 19" mounting angles, standard, front and rear, vented, WHD: 600 x 2200 x 1200 mm, 47 U
Feature → Business Impact → Application: Ventilated front and rear surfaces with approximately 85% perforated area promote effective passive cooling, reducing energy consumption and extending component life in dense IT racks. This translates to lower operational costs and fewer fan-related failures in data centers and telecom rooms. Application: data centers, server rooms, and edge deployments seeking reliable airflow. Feature → Business Impact → Application: 47 U mounting capacity and 600 mm width with 482.6 mm (19") mounting angles provide scalable space for servers, storage, and switches while preserving cable routing. Benefit: easier future upgrades and cleaner installations. Application: growing IT infrastructures and retrofit projects. Feature → Business Impact → Application: Front and rear doors made of vented sheet steel and aluminum front with 180° hinges enable quick access for maintenance and service. Benefit: faster support, reduced downtime, and improved cable management. Application: routine maintenance, hardware swaps, and routine inspections. Feature → Business Impact → Application: Robust frame with dipcoat-primed exterior and sprayed interior finishes enhances corrosion resistance in harsh data-center environments. Benefit: longer service life and lower replacement costs. Application: facilities with variable humidity and temperature cycles. Feature → Business Impact → Application: 15,000 N load capacity and UL 2416 compatible static rating provide structural confidence for dense equipment loads. Benefit: safer installations, compliance with safety standards, and scalable deployments. Application: multi-rack rows housing high-density equipment. Feature → Business Impact → Application: Comprehensive supply includes 482.6 mm mounting brackets, spacers, and conductive fasteners enabling grounding and passive cooling options. Benefit: simplified installation, improved grounding continuity, and ready-to-use configurations. Application: turnkey deployments and reduced lead times for project teams.
Get a Quick Quote for a Rittal 5315118
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5315118?
Enquire Now
FAQs
Installation starts with selecting a level, stable floor footprint and attaching the 482.6 mm (19") mounting angles to the enclosure frame at both front and rear. Use the supplied screws and conductive fasteners to ground the cabinet, then align the 19" equipment with the mounting rails. The rear door and roof plate include cable entry options for efficient routing. For best results, plan airflow paths to maximize passive cooling and minimize hot spots near cooling outlets.
Yes. The enclosure uses standard 482.6 mm (19") mounting angles, front and rear, and provides 47 U of mounting space within a 600 mm wide frame. It accommodates typical IT hardware such as servers, switches, and storage units. The included spacers and cable-entry features support orderly cable management and straightforward integration with existing 19" devices.
The VX IT enclosure is ideal for data centers, server rooms, and telecom deployments requiring organized, ventilated cabinet housing for IT networking gear. Its vented front and rear doors, substantial mounting space, and robust construction support scalable deployments, reliable cooling, and easy access for maintenance and upgrades in high-density environments.
Typical IT enclosures emphasize CE marking, UL/ULc readiness, and appropriate IP ratings to meet environmental and safety standards. For VX 5315.118, verify the exact certifications applicable to your region and installation context with the supplier, ensuring compliance for electrical safety, ingress protection, and configuration with your data-center standards.
Projected ROI stems from improved cooling efficiency, reduced energy consumption, and lower downtime due to easier maintenance access. The vented design, dual-access doors, and ready-to-install mounting hardware shorten deployment times, while the durable materials and coatings extend service life, lowering replacement and maintenance costs in busy IT environments.
