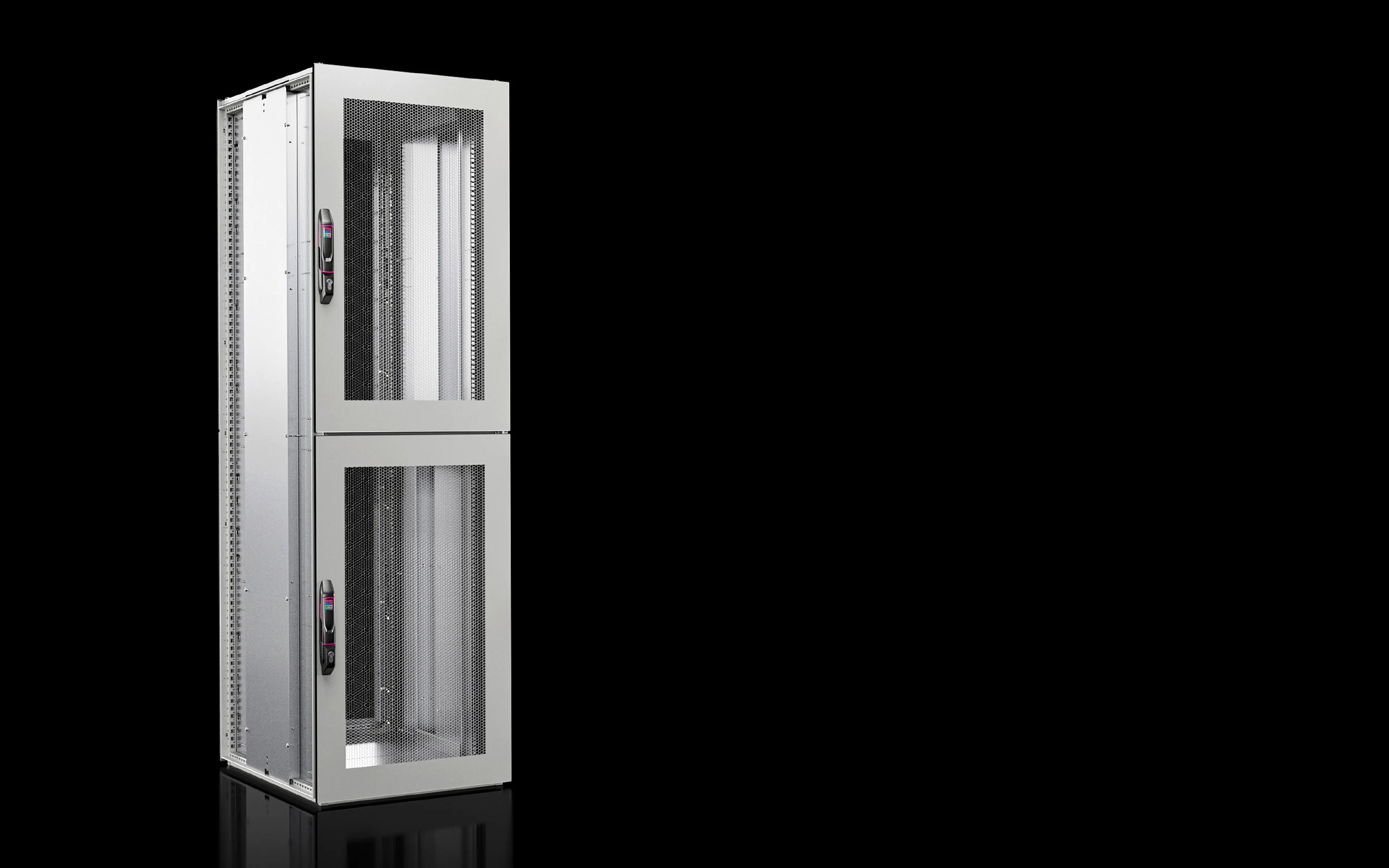

Rittal 5315175 VX IT Compartment Rack - Dual-compartment
Part Number: 5315175
Quick Summary
The Rittal VX IT Compartment Rack provides dual, independent compartments for secure IT and control equipment in factory automation environments. Managing mixed IT and automation gear in a single enclosure often leads to shared cabling and access bottlenecks; with two independently configurable compartments, it reduces cross-talk and risk. This enclosure aligns with ETIM EC002499 and ECLASS 27180207 standards, supporting reliable procurement and interoperability across your supply chain. By offering pre-configured 19\" mounting angles and centralized gland plates, it speeds installation while delivering scalable IT and control expansion for growing facilities.
Product Information
Extended Description
5315175 Rittal: VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Article number
VX 5315.175
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 2 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with two independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | 2 sheet steel doors, vented, front and rear | Gland plate divided in the centre, pre-configured across the entire rack depth | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 4 keys
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,200 mm
Distance between levels as delivered
740 mm
Number front doors
2
Number back doors
2
482.6 mm (19") attachment
2 x 23 U
Installation of PDU vertically in the rear area
Vertical PDU with IEC C20 connection (max. length of PDU 1000 mm), Model No. 7979.117/.118/.217/.317/.417
Design
Compartment Rack, 2 x 23 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into two, vented
Front door design
divided into two, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
2 x 23 U
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950092
ETIM 9
EC002499
ETIM 8
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 19" mounting angles front and rear, 2 compartments, 2 x 23 U, WHD: 600x2200x1000 mm, enclosure frame and panels: RAL 7035, interior components: RAL 9005
Feature: Dual independent compartments with front and rear 482.6 mm (19") mounting angles. Business impact: Enables physically separate IT and control domains, reducing risk from shared cabling and improving security. Application: Data/industrial networks on the factory floor where isolated zones are required. Feature: Vented front and rear doors for each compartment. Business impact: Improves thermal management and airflow, reducing cooling costs and failure risk. Application: High-density equipment hosting in mixed IT/OT environments. Feature: Center-divided gland plate and integrated air baffles. Business impact: Streamlines cable routing and EMI control, enabling faster maintenance and cleaner installations. Application: Centralized power distribution and cabling along the rack depth. Feature: Robust sheet steel construction with defined finishes (RAL 7035 frame/panels; RAL 9005 for interior components). Business impact: Durable, industrial-grade enclosure that withstands harsh environments, reducing replacement cycles. Application: Industrial automation and IT deployments in manufacturing settings. Feature: Two front doors and two rear doors with a 130° opening angle. Business impact: Simplifies access for service and upgrades, minimizing downtime. Application: Routine maintenance and component replacement in constrained spaces. Feature: Vertically installed PDU option in the rear area (IEC C20, up to 1000 mm). Business impact: Flexible power distribution integration without compromising enclosure integrity. Application: Power management for multi-rack configurations. Feature: Roof design with dual cable entry in the center and a solid base with integrated gland plates. Business impact: Improves cable ingress management and simplifies siting. Application: New builds and retrofits in controlled environments. Feature: 2 x 23 U per compartment with 740 mm level spacing. Business impact: Clear provisioning for mixed equipment heights, improving airflow and accessibility. Application: Configurations that separate network gear from industrial controllers.
Get a Quick Quote for a Rittal 5315175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5315175?
Enquire Now
FAQs
The VX IT Compartment Rack is designed around standard 19" mounting angles (482.6 mm) located at the front and rear of each of the two independent compartments. This enables seamless integration of existing 19" equipment, minimizes retrofitting, and supports clean, industry-standard rack layouts for IT and control hardware.
Key specs include two independent 23U compartments with 19" mounting angles, 600 mm width, 2,200 mm height, and 1,200 mm depth, plus vented front and rear doors. A center gland plate and integrated air baffles optimize cable routing and airflow, reducing thermal bottlenecks and EMI concerns in busy industrial environments.
Yes. The design provides dual compartments that isolate IT from control hardware while sharing a common enclosure. This separation supports consolidated management, improved security, and streamlined maintenance for mixed IT/OT deployments on the factory floor.
The VX 5315.175 aligns with recognized industry classifications such as ETIM EC002499 (relevant for data and enclosure components) and ECLASS 8.0 27180207, ensuring compatibility in procurement systems and interoperability across suppliers and customers.
Modularity and dual independent compartments reduce downtime during maintenance by localizing work to a single compartment. Pre-configured mounting, gland plates, and accessible PDU integration simplify installation, which lowers labor costs and accelerates project timelines, delivering faster ROI in expansion or upgrade projects.
