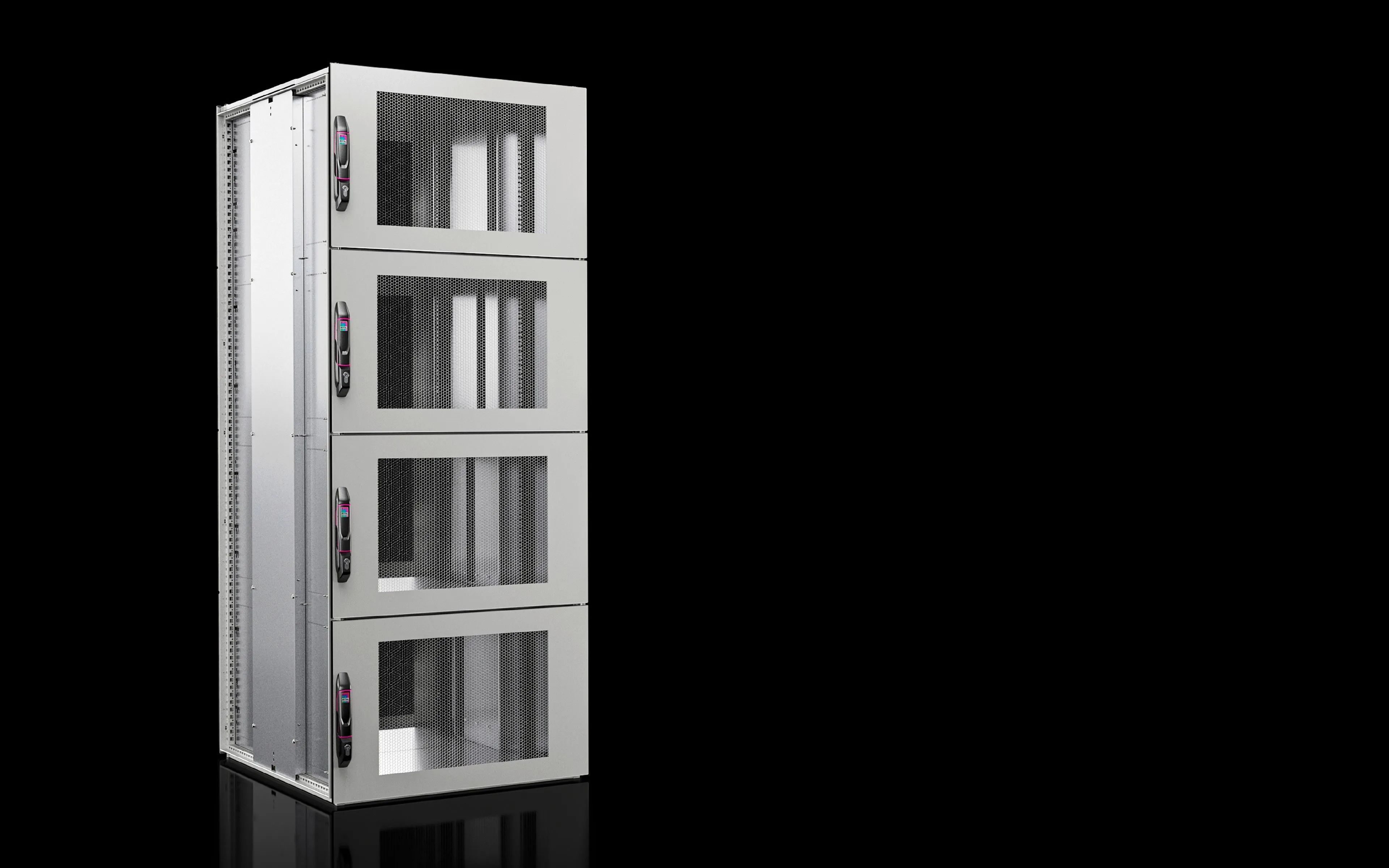

Rittal VX 5315.185 VX IT Compartment Rack - 4 x 11U
Part Number: 5315185
Quick Summary
The VX IT Compartment Rack by Rittal is a modular enclosure for secure IT and control gear. End-user teams often struggle with cabling chaos and access control when multiple applications share a single enclosure. In industrial environments, CE compliance, IP-rated protection, and robust mechanical standards are essential to ensure reliability and safety. This solution delivers independent compartments with standardized 19-inch mounting rails, facilitating orderly cabling and predictable maintenance. It supports scalable configurations, helping manufacturers and integrators optimize space, reduce downtime, and simplify change management while keeping IT and automation equipment physically separated for security and performance.
Product Information
Extended Description
5315185 Rittal: VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 600x2200x1000 mm, enclosure frame and panel parts: RAL 7035, interior components: RAL 9005
Article number
VX 5315.185
Product description
Smart enclosure solution for the integration of different applications into a central, shared enclosure, for different user groups with separate access control. Physically fully independent installations with similarly independent cabling. Rack divided into 4 installation compartments, enabling individual configuration of each single compartment and secure accommodation of your IT infrastructure.
Benefits
Enclosure pre-configured with 482.6 mm (19") mounting angles at the front and rear of each compartment, adjustable individually and independently of each other
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof plate: Sheet steel, 1.5 mm | Gland plate: Sheet steel, 1.0 mm | Front and rear door: Sheet steel, 1.5 mm | Mounting angles: Sheet steel, 2.5 mm
General colour
RAL 7035
Colour
Enclosure frame and panels: RAL 7035 | 19" mounting angles, hinges and handles spray-finished in RAL 9005
Supply includes
VX IT compartment rack, with four independent installation compartments | Each compartment with 482.6 mm (19") mounting angles, front and rear, screwed to the integrated dividers on the left and right | Gland plate divided in the centre, pre-configured across the entire rack depth | 4 sheet steel doors, vented, front and rear | Comfort handle for proifile half-cylinders with security lock 3524 E | Including potential equalisation, prepared for the attachment of earthing straps | Two 482.6 mm (19") mounting angles front and rear per compartment, depth-variable, front angles with all-round integrated air baffles | 8 keys
Dimensions
Width: 600 mm | Height: 2,200 mm | Depth: 1,200 mm
Distance between levels as delivered
740 mm
Number front doors
4
Number back doors
4
482.6 mm (19") attachment
4 x 11 U
Design
Compartment Rack, 4 x 11 U
Roof design
One-piece roof plate, with cable entry on both sides in the centre part of the roof
Design doors
Door opening angle max. 130°
Rear door design
divided into four, vented
Front door design
divided into four, vented
Mounting angle design
19" mounting angles in the VX IT Compartment Rack
Base design
Base frame with pull-out, two-part solid gland plate pre-assembled
482.6 mm (19") level(s) version
482.6 mm (19") level, front and rear
Mounting angles position
482.6 mm (19") level, front and rear
Note
Depending on how and where it is sited, the door opening angle may vary for selected applications
Basic material
Sheet steel
Packs of
1 pc(s).
EAN
4028177950108
ETIM 9
EC002499
ECLASS 8.0
27180207
Product description
VX IT Compartment Rack, vented, 4 compartments, 19" mounting angles front and rear, 4 x 11 U, WHD: 600x2200x1000 mm, enclosure frame and panel parts: RAL 7035, interior components: RAL 9005
Feature → Business Impact → Application: VX IT Compartment Rack offers four independent installation compartments, each with 482.6 mm (19") mounting rails front and rear. This enables separate configurations and uninterrupted operation for IT and automation devices, reducing cross-talk and downtime. The business impact is improved maintainability and streamlined change management in multi-user environments, such as data centers and machine halls where shared enclosures are common. Application: ideal for centralized, shared enclosures that require distinct access control and independent cabling per compartment. Feature → Business Impact → Application: Vented front and rear doors and a one-piece roof plate with dual cable entry enable efficient airflow and easy cable routing. This improves thermal management, reduces cooling costs, and simplifies upgrades in dense rack layouts. Application: suitable for high-density IT and control cabinets in manufacturing floors. Feature → Business Impact → Application: 19" mounting angles pre-configured at front and rear for each compartment simplify installation and ensure repeatable mounting tolerances. This lowers commissioning time and accelerates rollout in multi-zone projects. Application: compatible with standard 19" equipment, compatible with phased deployments. Feature → Business Impact → Application: Gland plate divided centrally and pull-out base frame with pre-assembled gland plate provide organized, compliant cable management and easy service access. Application: supports clean installation of power, network, and IO cables while maintaining segregation between compartments. Feature → Business Impact → Application: Prepared earthing strap attachment and multiple locking keys enhance security and electrical safety, reducing risk during maintenance. Application: advantageous in regulated environments where access control and grounding integrity are required. Feature → Business Impact → Application: Note on door opening angle and independent compartments informs installers about application flexibility and potential installation constraints. Application: helps plan layouts in restricted spaces and aligns with site-specific access requirements. Feature → Business Impact → Application: Material and finish (sheet steel construction, RAL 7035 exterior, RAL 9005 interior) provide durable protection in harsh environments, with aesthetic consistency. Application: suitable for industrial enclosures exposed to dust, impacts, or temperature variations.
Get a Quick Quote for a Rittal 5315185
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5315185?
Enquire Now
FAQs
The VX IT Compartment Rack includes four independent 19" mounting rails (4 x 11U) front and rear, designed to accept standard IT and automation equipment. This compatibility minimizes adapter needs and accelerates installation, while maintaining secure, segregated compartments for each user group.
Dimensions are width 600 mm, height 2,200 mm, depth 1,200 mm, with a WHD of 600x2200x1000 mm. The rack features four vented doors, a one-piece roof with central cable entry, and a central gland plate. These specs enable predictable space planning and straightforward top- or bottom-entry cable routing.
Yes. The design supports independent compartments with dedicated cabling and access control, allowing IT gear and industrial controllers to co-exist in a single enclosure without compromising security or airflow. The vented doors and robust sheet-steel construction are well-suited for industrial settings.
The product is classified under ETIM 9 (EC002499) and ECLASS 8.0 (27180207). While not a direct certification, these classifications help ensure correct categorization for procurement systems and enable consistent specification across projects.
Independent compartments simplify cable management, reduce cross-group interference, and speed component swaps without disturbing other zones. The modular structure lowers downtime during upgrades, improves airflow management, and delivers a clear TCO benefit by enabling phased deployments and easier scaling.
